Detailed Specifications

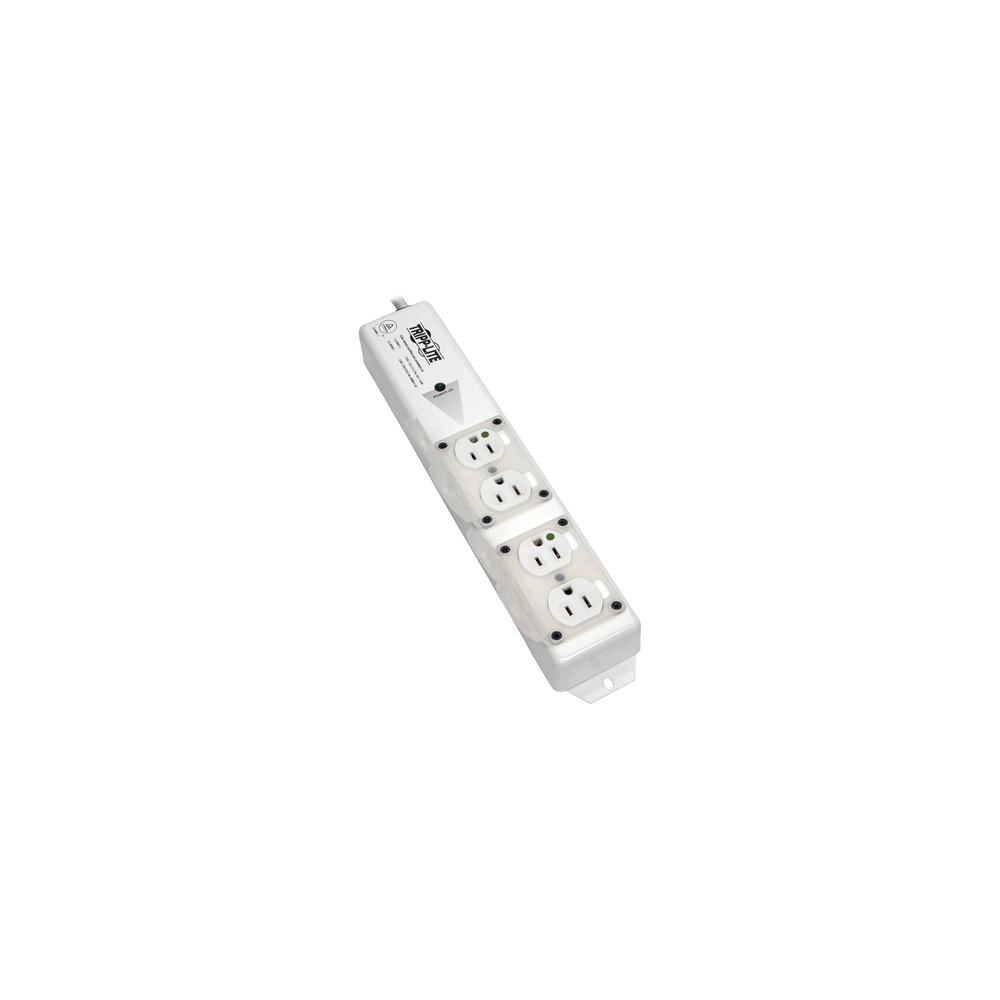

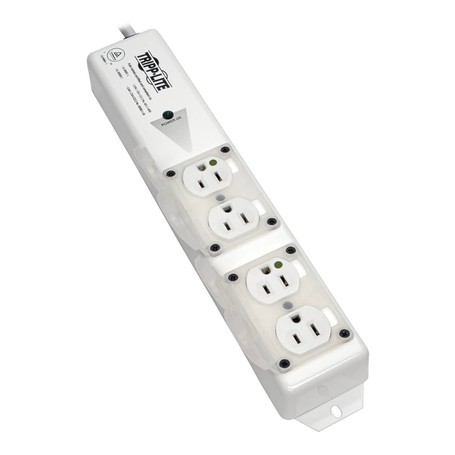

Eaton PS-415-HGULTRA Medical-Grade Power Strip
Overview
The Eaton PS-415-HGULTRA is a medical-grade power strip designed for patient-care environments requiring compliant AC power distribution for medical equipment in healthcare facilities.
It is deployed in hospitals, clinics, operating rooms, nursing stations, labs, mobile carts, IV poles, and other patient-care vicinity installations where UL-certified isolation, safety control, and infection-control design are required.
The unit provides four NEMA 5-15R-HG hospital-grade outlets with a NEMA 5-15P-HG input plug on a 15 ft power cord. It incorporates a switchless design to prevent accidental shutdown and includes integrated outlet safety covers to improve patient safety during use.
It is compliant with UL 2930 and UL 60601-1 standards for patient-care use, and includes antimicrobial surface treatment and an internal fault protection circuit that disables output during detected electrical faults.
This model is intended strictly for healthcare-grade distribution and is not designed for UPS backup, voltage regulation, or industrial power conditioning.
Key Features
- UL 2930 and UL 60601-1 compliant for patient-care use
- Four hospital-grade 5-15R-HG outlets with safety covers
- Switchless design prevents accidental power interruption
- Integrated fault protection circuit for enhanced safety
- Antimicrobial housing supports infection-control environments
Specifications
| Parameter | Value |
|---|
| Brand | Eaton (Tripp Lite series) |
| Part Number | PS-415-HGULTRA |
| Product Type | Medical-Grade Power Strip |
| Input Voltage | 120 VAC |
| Maximum Input Current | 15 A |
| Frequency | 50/60 Hz |
| Input Plug | NEMA 5-15P-HG |
| Output Receptacles | 4 × NEMA 5-15R-HG |
| Cord Length | 15 ft (4.57 m) |
| Circuit Protection | 15A resettable circuit breaker |
| Power Switch | None (switchless design) |
| Housing Material | Metal |
| Antimicrobial Protection | Yes |
| Safety Standard | UL 2930 / UL 60601-1 |
| Mounting Type | Keyhole / flange mounting |
| Outlet Safety | Integrated locking safety covers |
| Application | Patient-care vicinity |
| Operating Temperature | 0°C to 40°C |
| Compliance | NFPA 99, RoHS |
| Certifications | UL Listed, CSA |
