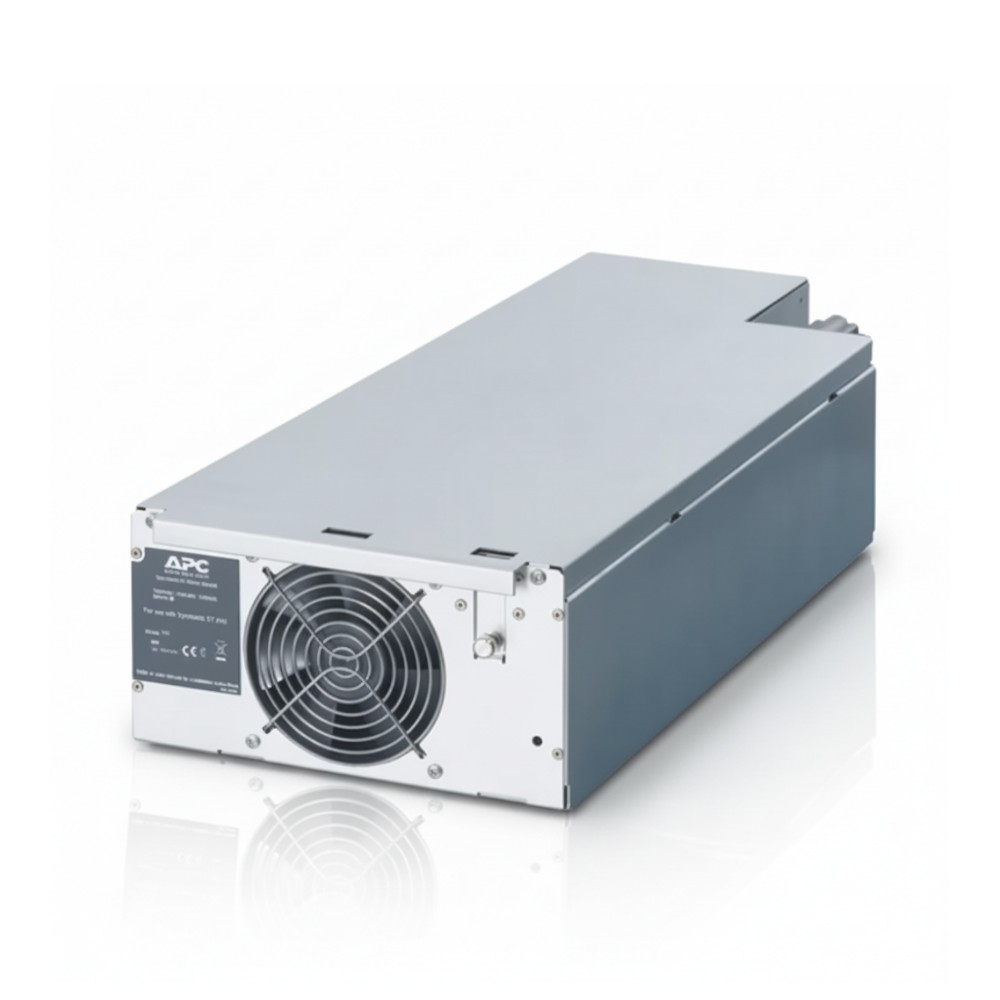

APC SYPM Symmetra 4-16kVA Power Module (4kVA) View larger

APC SYPM Symmetra 4-16kVA Power Module 4kVA

New

4 kVA modular power module for Symmetra UPS
×




  • New

Detailed Specifications

APC SYPM – Symmetra 4-16 kVA Power Module

Overview :

This is a removable power module used in APC Symmetra UPS systems, enabling capacity scaling or redundancy by adding incremental power units. It delivers 4 kVA (2.8 kW) of clean, double-conversion output to support IT or infrastructure loads. It is designed for deployment in data centre or enterprise environments as part of a modular UPS rack. When installed, it integrates under the control and monitoring system of the Symmetra platform.

Key Features :

  • Hot-swappable in Symmetra UPS frames

  • Delivers 4 kVA (2.8 kW) output

  • Supports input voltages of 200/208/400 V

  • Compact 0U footprint, front-accessible

Specifications :

SpecValue
Brand APC
Part Number SYPM
Product Type Power Module
Rated Output Power 4 kVA (2.8 kW)
Nominal Output Voltage 200 V / 208 V / 230 V
Nominal Input Voltage 200 V / 208 V / 230 V / 400 V
Input Frequency 50/60 Hz (auto sensing)
Dimensions (H × W × D) 5.90 in × 9.84 in × 23.23 in (150 mm × 250 mm × 590 mm)
Weight (net) 33 lb (15 kg)
Rack Units 0U (modular, no rack height)
Warranty (standard) 2 years
