Detailed Specifications

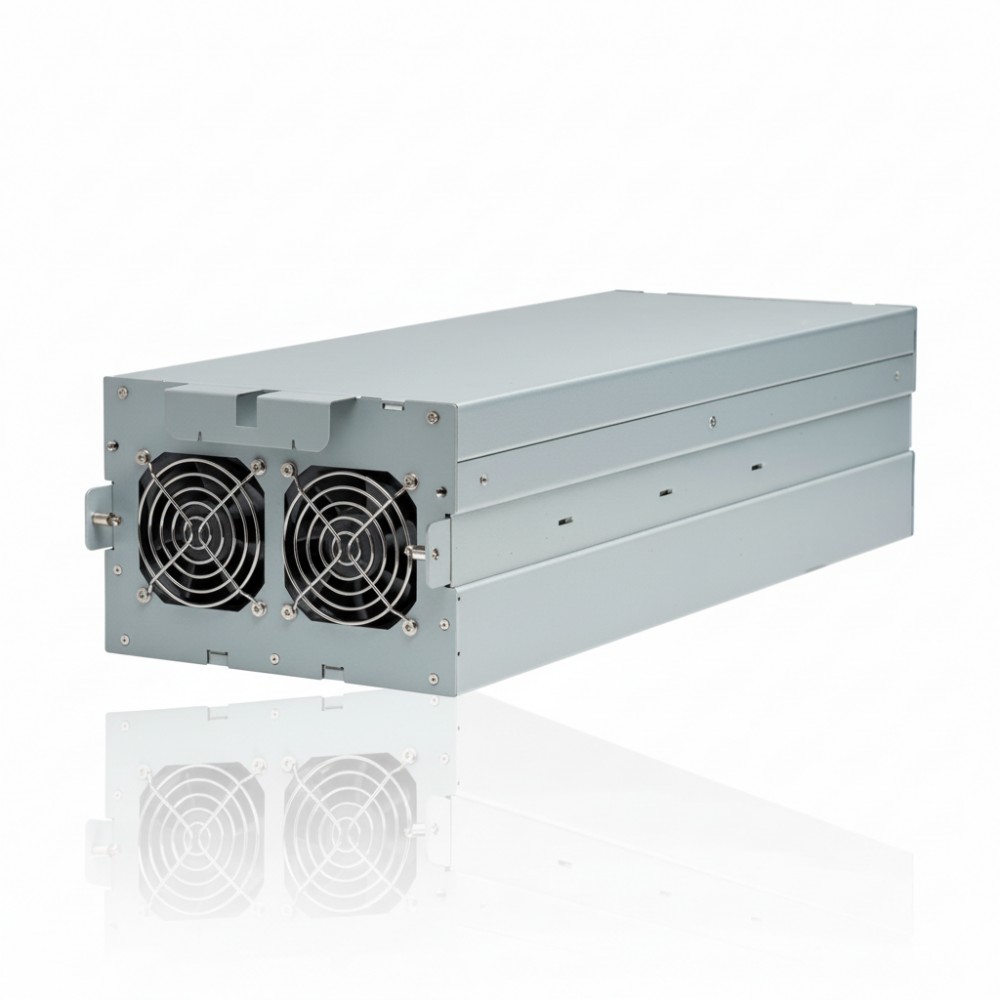

Eaton 9PXMSPPM 4 kVA 3 6 kW Split Phase Power Module
Overview
The Eaton 9PXMSPPM is a modular power module intended for the 9PXM series UPS platforms, delivering 4 kVA / 3.6 kW of output in a hot-swappable format that enables capacity expansion or redundancy in data-centre, mission-critical and industrial IT deployments. Designed to operate within the split-phase architecture of the 9PXM family (supports 120/208 V, 120/240 V, 110/220 V, 127/220 V I/O), this module allows systems to scale in 4 kVA building blocks and supports N+X redundancy without requiring full system replacement. The module installs in designated power-slots in the 9PXM chassis and can be added or replaced while the system remains live. With a true-sine-wave, online double-conversion topology and a power factor of 0.9, it enables efficient and high-density deployment of IT loads across mixed output voltage systems. Engineers deploying the 9PXMSPPM benefit from the plug-and-play modularity: power modules are lightweight (approx. 22.5 lb) and serviceable, reducing downtime. In effect, this product is not a standalone UPS×it is a component for a scalable solution, used when you build out or upgrade an Eaton 9PXM rack/tower cabinet by adding capacity or redundancy. If your environment demands expansion without shutting down the UPS, or you anticipate future growth in power draw, the 9PXMSPPM is a fit-for-purpose power module engineered to integrate into the modular architecture.
Key Features
4 kVA / 3.6 kW output with 0.9 power factor serves as a building block for scalable or redundant UPS configurations.
Split-phase support (120/208 V, 120/240 V, etc.) enables flexible output voltage architectures for mixed-load racks.
Hot-swappable module design allows installation or replacement without UPS downtime when capacity remains.
True sine-wave online double-conversion topology ensures connected equipment remains protected under all input conditions.
Lightweight (~22.5 lb) and drawer-type installation simplify field service and maintenance in modular UPS systems.
Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | 9PXMSPPM |
| Product Type | Power Module for Eaton 9PXM UPS |
| Output Power Rating | 4 kVA / 3.6 kW |
| Output Power Factor | 0.9 |
| Topology | Online double-conversion, true sine-wave output |
| Supported Output Voltages | 120/208 V, 120/240 V, 110/220 V, 127/220 V |
| Input Nominal Voltages | 110/220 V, 120/208 V, 120/240 V, 127/220 V |
| Hot-Swap Capability | Yes - module can be added/removed under load (if redundancy remains) |
| Dimensions & Weight | Approx. 23″ H × 8.5″ D × 6″ W; ~22.5 lb (~10.2 kg) |
| Warranty | Standard factory warranty |
