Detailed Specifications

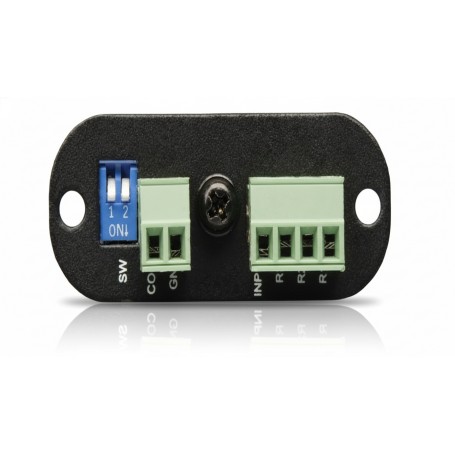

Eaton RELAYIOMINI Tripp Lite 3-Relay Contact Closure I/O Module
Overview
The Eaton RELAYIOMINI is an internal contact closure management accessory card designed to enhance the communication capabilities of select SmartOnline Uninterruptible Power Supply (UPS) systems. This module provides three contact closure outputs, enabling seamless integration with external monitoring systems or building management platforms. By translating critical UPS status and event data into discrete contact signals, it ensures that essential power infrastructure conditions are reliably communicated to relevant systems. Engineered for straightforward installation, the RELAYIOMINI typically mounts into a dedicated back panel slot on compatible UPS power modules. Its design often necessitates the temporary removal of a pre-existing USB module, ensuring a clean and secure fit. This accessory is specifically compatible with SmartOnline UPS models ranging from 5 to 20kVA that were originally equipped with both a back-panel USB module and a dedicated RS-232 DB9 port, ensuring proper functionality and integration. The module's capability to provide an input signal for UPS shutdown offers an additional layer of control, crucial for managed and automated system responses during power events. It serves as an ideal solution for robust power management, monitoring, and control in diverse environments such as enterprise data centers, industrial control systems, and mission-critical telecom installations, providing vital event visibility for continuous operation and automated response strategies.
