Detailed Specifications
Overview

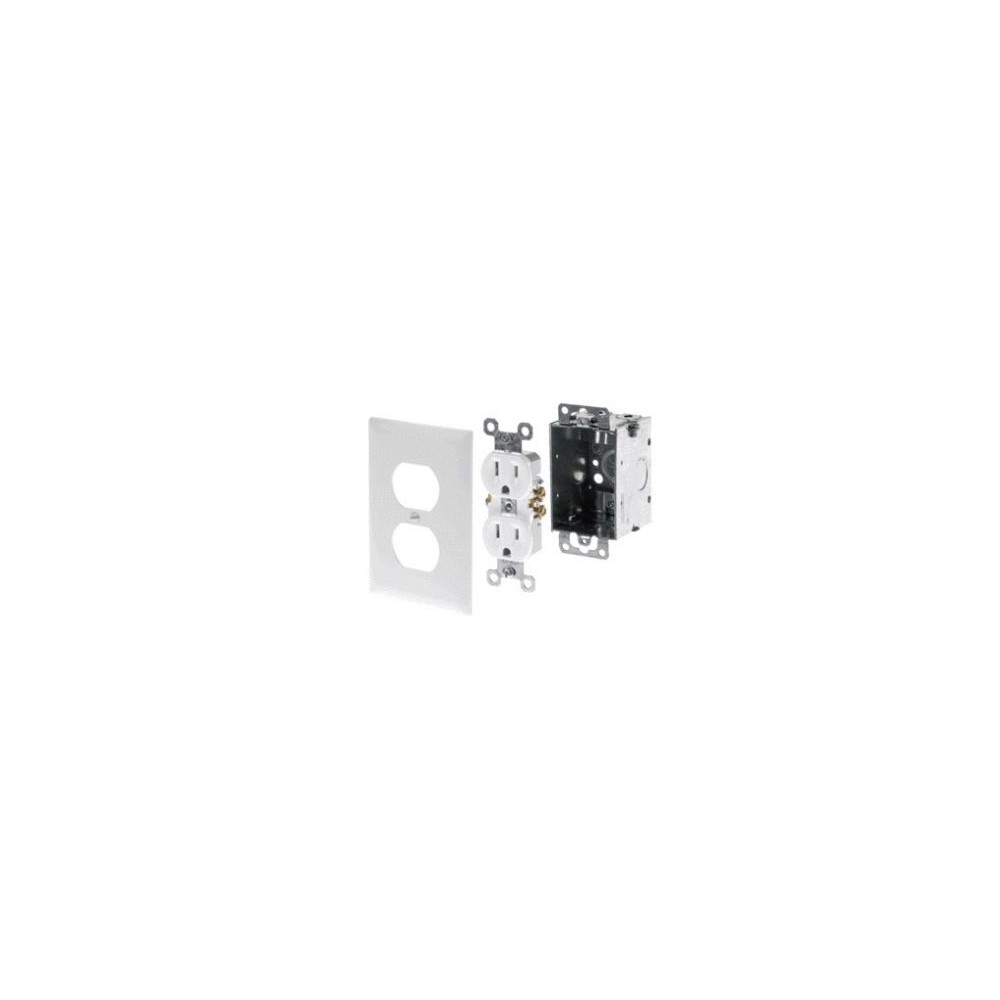

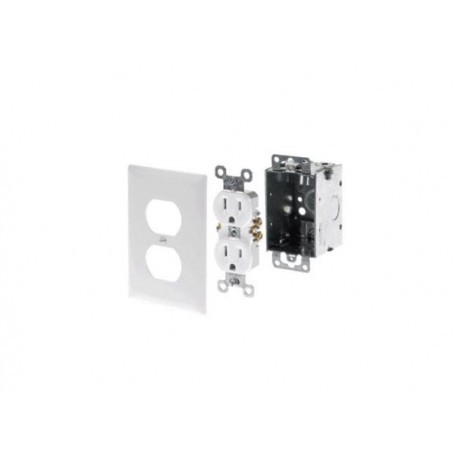

The On-Q F7526 Duplex Power Kit by Legrand provides AC power inside compatible low-voltage structured wiring enclosures. Designed to fit a rectangular knockout location in the enclosure, the kit includes a tamper-resistant duplex receptacle, metal junction box, and faceplate. It provides a convenient power connection for compatible in-wall networking, AV, and structured wiring equipment.
Key Features
- Designed for compatible On-Q in-wall enclosures
- Tamper-resistant duplex AC receptacle
- 15A, 120V AC power rating
- Includes metal junction box and faceplate kit
- Designed to fit a rectangular enclosure knockout
- Can be used with the On-Q AC1031 accessory to expand available outlets in compatible enclosures
- cULus listed and RoHS compliant
Technical Specifications
| Specification | Details |
|---|
| Brand | On-Q by Legrand |
| Part Number / MPN | F7526 |
| Product Type | Duplex Power Kit |
| Receptacle Type | Tamper-resistant duplex AC outlet |
| Voltage Rating | 120V AC |
| Current Rating | 15A |
| Color | White |
| Package Contents | Duplex outlet, metal junction box, and faceplate kit |
| Compatibility | Compatible On-Q low-voltage enclosures with the appropriate knockout |
| Certifications | cULus Listed; RoHS compliant |
| UPC | 871744103018 |
Applications
- Providing power to equipment installed in structured wiring enclosures
- Residential networking and low-voltage installations
- In-wall AV and media equipment installations
- Compatible On-Q enclosure configurations using supported power accessories
Installation and Compatibility
Confirm that the enclosure supports the F7526 power kit and has the correct rectangular knockout. Installation involves AC mains wiring and must comply with local electrical codes. A qualified electrician should perform the wiring where required. This kit is not a surge-protected power kit; choose a compatible surge-protected alternative if surge protection is required.
Frequently Asked Questions
1. What is the On-Q F7526?
It is a duplex power kit designed to provide AC power inside compatible On-Q structured wiring enclosures.
2. What is included in the kit?
The kit includes a tamper-resistant duplex outlet, metal junction box, and faceplate kit.
3. What are its electrical ratings?
The receptacle is rated for 120V AC and 15A.
4. Does this kit provide surge protection?
No. The F7526 is the standard non-surge-protected power kit. Legrand offers a separate surge-protected option.
5. Can it be installed in any enclosure?
No. Verify that the enclosure has the correct knockout and supports this specific On-Q power kit before installation.
DC Supplies Product Note
DC Supplies recommends confirming enclosure compatibility and electrical requirements before ordering. AC mains installation should be completed by a qualified professional in accordance with applicable local codes.
