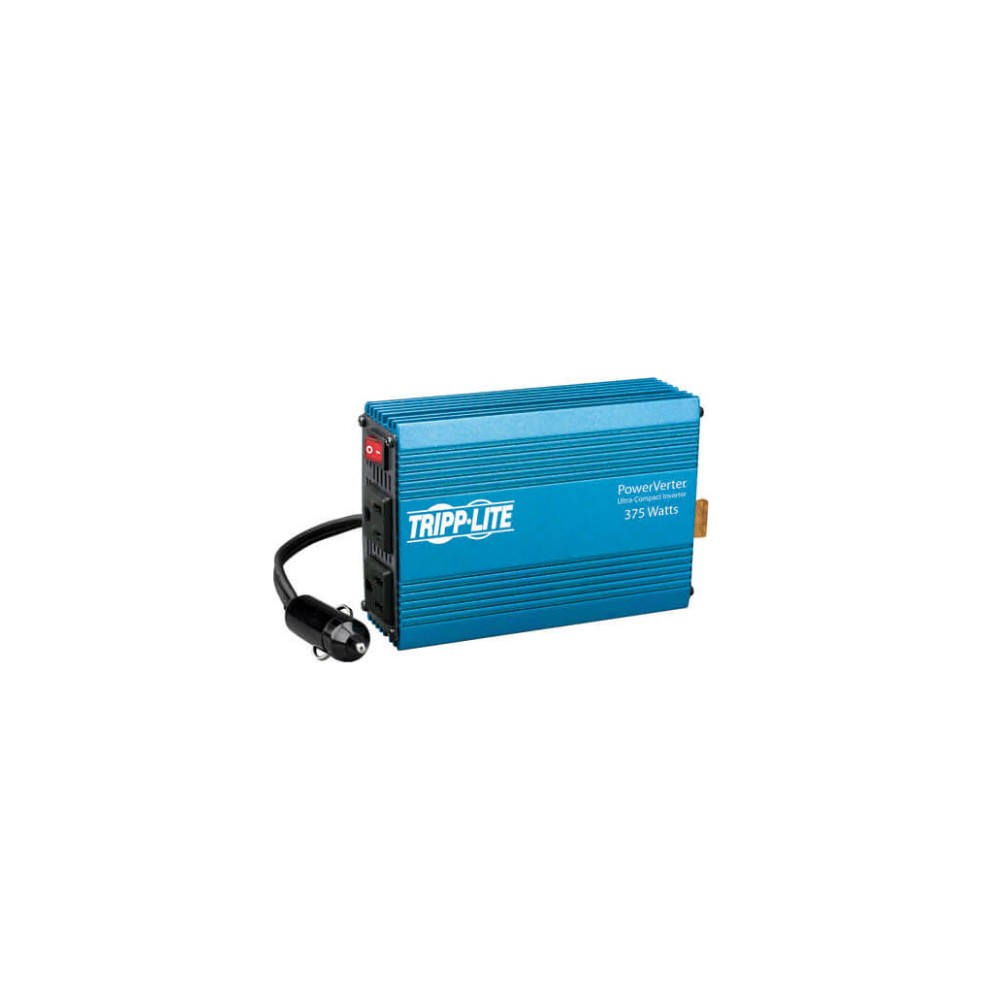

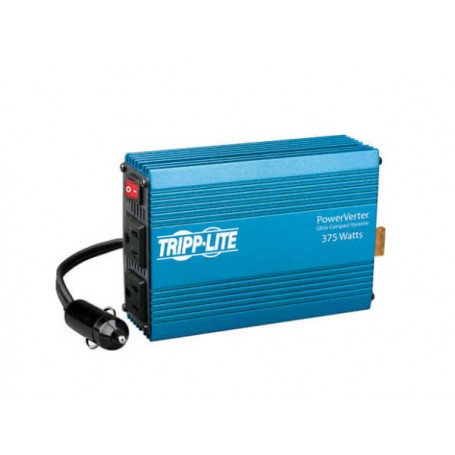

Eaton PV375 – Power Inverter

Overview:

The Eaton Tripp Lite Series PV375 is a compact 375-watt DC-to-AC power inverter designed to step up 12V nominal vehicle DC battery power to standard 120V AC power on the move. Engineered for mobile field technicians, remote service crews, and utility vehicles, it converts power drawn directly through a 12V automotive accessory plug to drive tools, mobile workstations, and test equipment in field environments.

Delivering 375 watts of continuous PWM sine wave power and up to 600 watts of peak surge capacity, the PV375 handles high-initial-draw devices during startup without dropping output voltage. Built-in safety circuits feature automatic low-battery alarm/shutdown to safeguard the vehicle start battery, combined with overload protection via an integrated 40A fuse.

Deployable in service vans, mobile command units, utility fleet vehicles, and temporary field sites. Plugs directly into standard 12V DC automotive sockets. Do NOT use with 24V or 48V DC battery systems, nor with inductive motor loads exceeding the 375W continuous threshold.

Key Features :

• 375W continuous and 600W peak output supports motor startup spikes.

• Dual NEMA 5-15R AC outlets power multiple mobile devices simultaneously.

• Low-battery auto-shutdown protects host vehicle battery from total drain.

• Integrated 3-foot DC input cable connects directly to standard 12V outlets.

• All-metal aluminum housing provides durable heat dissipation on job sites.

Specifications :
