Detailed Specifications

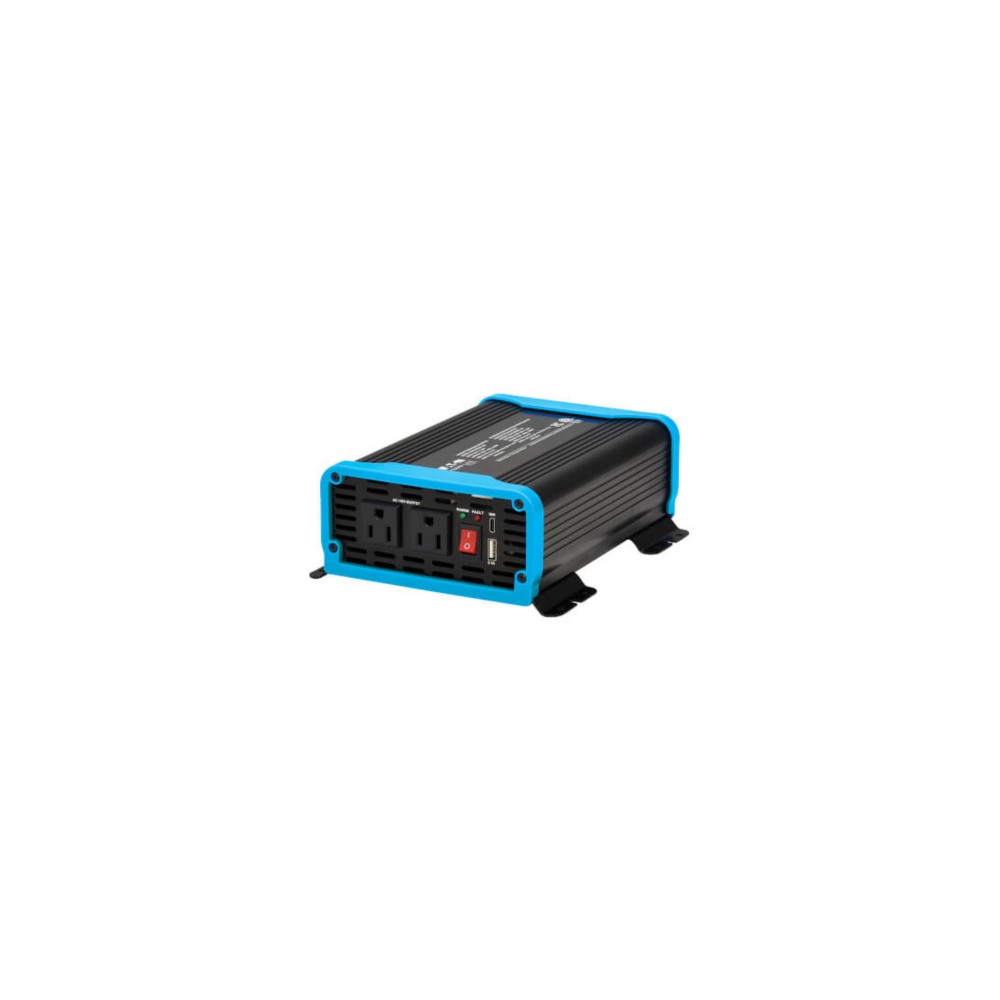

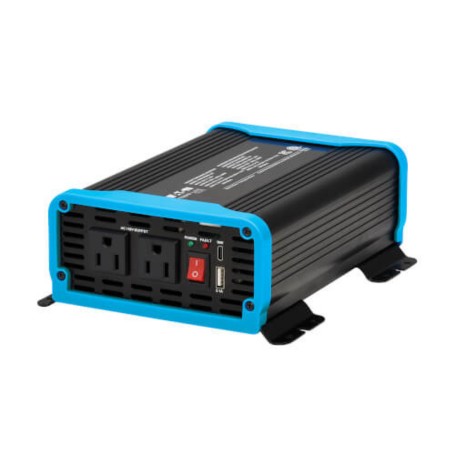

Eaton PINV2000SWL-120 Heavy-Duty Power Inverter
Overview :
The Eaton PINV2000SWL-120 (Tripp Lite Series) is a 2000W heavy-duty mobile power inverter built to transform 12V DC battery power into stable 110V/120V AC electricity. Fleet operators, utilities, and commercial field service technicians deploy this hardware within service trucks, emergency response vehicles, and remote mobile job sites lacking grid infrastructure.
The unit integrates an advanced microprocessor that generates a low-distortion pure sine wave output, resolving voltage regulation and harmonic noise issues. This clean power signature safeguards highly sensitive medical devices, field testing hardware, and diagnostic laptops against internal circuitry damage or communication drops.The inverter houses two NEMA 5-15/20R outlets with OSHA-compliant GFCI protection, alongside a 2.1A USB-A and an 18W fast-charging USB-C port.
Equipped with an integrated front-panel LCD, users can track system capacity, runtime indicators, electrical frequency, and active fault variables in real time. The unit supports horizontal floor or bulkhead wall mounting via built-in heavy-duty chassis brackets.Operating strictly within an 11V to 15V DC range, this inverter must never be connected to 24V or 48V power sources, as doing so initiates over-voltage protection circuits and locks out operation.
Key Features :
Pure sine wave power prevents overheating in inductive tools and laptops.
2000W continuous capacity manages high-wattage field equipment and appliances.
4000W peak surge handling handles extreme initial startup induction spikes.
Dual OSHA-compliant GFCI outlets isolate and protect users from shock hazards.
PINVSWRM 20-foot wired remote control permits convenient dashboard operation.
Specifications :
| Property | Specification |
| Brand | Eaton |
| Part Number | PINV2000SWL-120 |
| Product Type | Heavy-Duty Power Inverter |
| Continuous Output Power | 2000 W |
| Peak Output Power | 4000 W |
| Nominal Input Voltage | 12 V DC |
| Input Voltage Range | 11 V to 15 V DC |
| Nominal Output Voltage | 110 V / 120 V AC |
| Output AC Waveform | Pure Sine Wave |
| Output Frequency | 60 Hz (+/- 3Hz) |
| Output Receptacles | (2) NEMA 5-15/20R GFCI |
| USB Ports | (1) USB-A 2.1A, (1) USB-C 18W |
| Safety Protections | Low Battery Shutdown (10V), High Voltage Shutdown (16V) |
| Monitoring Interface | Integrated Status LCD Panel & Multi-Color LEDs |
| Cooling System | Dual Temperature-Controlled Fans |
| Chassis Material | Aluminum, Steel |
