Detailed Specifications

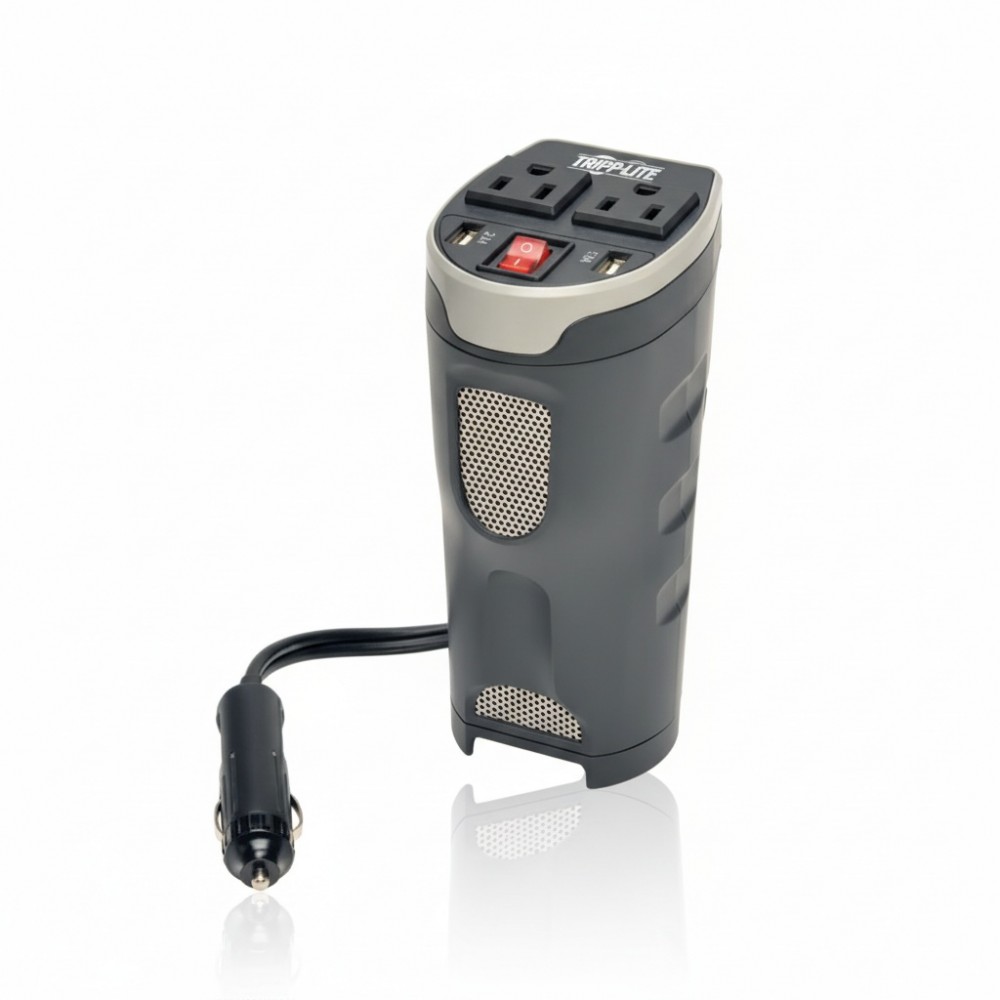

Eaton PV200CUSB 200 W 12 V to 120 V AC Inverter with USB Ports
Overview :
The Eaton PV200CUSB is a portable DC-to-AC inverter designed to convert automotive 12 V DC power into standard 120 V AC for powering or charging small electronics on the go. It's deployed by field technicians, mobile IT users, and vehicle fleet support teams to enable temporary AC and USB power for laptops, mobile devices, and low-power equipment in vehicles, boats, RVs, or remote worksites. It solves the need for AC availability where fixed mains power is unavailable.
Electrically, the unit provides 200 W continuous AC output at ~120 V and up to 400 W peak surge, sourced from a 12 V DC cigarette-lighter input with a ~3 ft cable. It includes two standard NEMA 5-15R AC outlets and two USB-A ports (one rated ~2.1 A, one ~1 A) for simultaneous AC and USB charging or powering of multiple devices.
Mechanically compact with a design sized to fit most vehicle cup holders, it features a lighted on/off switch and an internal cooling fan to manage thermal loads during extended use. The housing uses durable plastic suited to mobile environments.
Integration is stand-alone: it does not provide true sine-wave output or network management. Protection functions include automatic shutdown on low battery voltage (~10 V) to avoid deep discharge of the vehicle battery and thermal shutdown if overloaded.
Practical deployments include powering AC-powered field test instruments, charging laptops on service calls, and providing auxiliary power for portable displays during site configuration. It is not suited for powering high current loads such as large power tools, HVAC systems, or mission-critical IT systems that require pure sine wave inverters with regulated output.
Key Features
- Converts 12 V DC automotive power to 120 V AC (~200 W)
- Dual NEMA 5-15R outlets for simultaneous AC device operation
- Two USB-A ports (2.1 A + 1 A) for mobile device charging
- Compact cup-holder-friendly design with illuminated on/off
- Auto low-voltage shutdown protects vehicle battery
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | PV200CUSB |
| Product Type | Portable DC-to-AC Power Inverter |
| Input Voltage | 12 V DC nominal (10.5-15 V) |
| Output Voltage | ~120 V AC |
| AC Output Frequency | ~60 Hz |
| Continuous Power | 200 W |
| Peak (Surge) Power | 400 W |
| AC Receptacles | 2 × NEMA 5-15R |
| USB Ports | 1 × 2.1 A, 1 × 1 A USB-A |
| Input Connection | Cigarette lighter/DC plug |
| Cooling | Internal fan |
| Protection Features | Low-voltage shutdown, overload, thermal |
| Housing | Durable plastic |
| Dimensions (H×W×D) | ~6.8″ × ~3.9″ × ~2.8″ |
| Weight | ~0.88 lb (~0.40 kg) |
| Compliance | RoHS |
| Included | Inverter, Owner's Manual |
