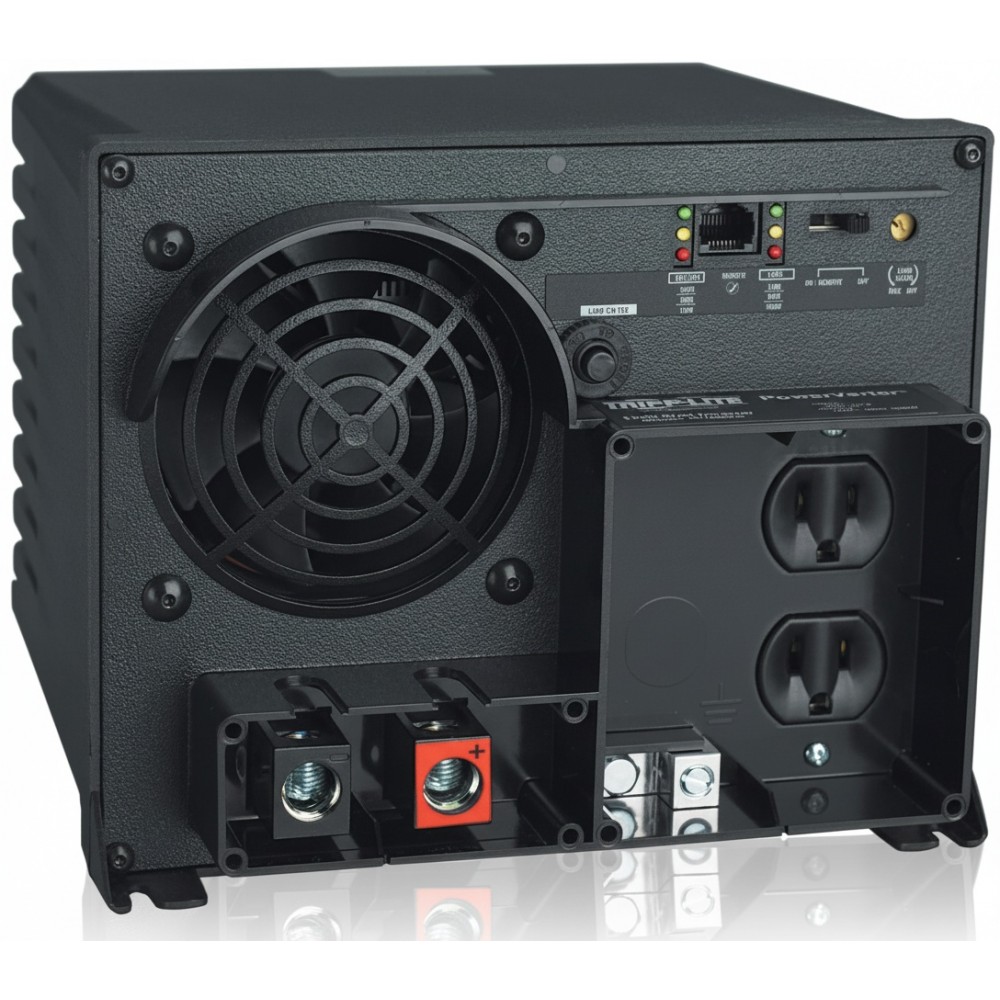

Eaton PV1250FC 1250 W DC-to-AC Power Inverter 120 V
Overview :
The Eaton PV1250FC is a DC-to-AC power inverter designed to convert 12 V DC battery or vehicle electrical systems into 120 V AC utility-compatible power. It is deployed by systems engineers and field technicians in mobile installations, service vehicles, utility trucks, and off-grid battery systems where AC power is needed but only DC sources are available.
Rated for 1250 W continuous output, this inverter provides two 120 V AC receptacles capable of powering tools, laptops, diagnostic equipment, and other AC loads directly from a 12 V battery source. The industrial-strength design includes automatic overload protection, frequency control for stable 60 Hz output, and thermal management via integrated cooling fans.
In deployment, the PV1250FC is suitable for work trucks, emergency service vehicles, construction sites, and off-grid power systems where reliable AC power without a generator is required. It can be mounted on horizontal surfaces using integrated mounting slots and hardwired to battery banks with appropriately rated DC cabling.
From an integration perspective, the inverter interfaces directly with 12 V DC battery systems via dual DC input terminals. It outputs standard North American 120 V AC through two NEMA 5-15R outlets, allowing plug-and-play connection of AC loads without additional distribution hardware. Remote control capability via optional accessories (e.g., remote on/off switch) enhances operational flexibility.
A practical deployment example includes powering job-site power tools, diagnostic instrumentation, and office devices from a vehicle battery while parked at a remote site. The unit's frequency control maintains stable output under varying loads, supporting inductive motor start requirements without requiring a generator.
This inverter is not intended for use as a UPS (it provides no battery charging or backup capability) and should not be used where pure sine wave output is mandated for sensitive medical or precision laboratory equipment. It also requires proper DC supply and fuse protection sized for the load to prevent electrical hazards.
Key Features
- Converts 12 V DC to 120 V AC at 1250 W continuous
- Two NEMA 5-15R outlets for standard AC loads
- OverPower & Double-Boost peak output support
- Integrated cooling fan and overload protection
- Optional remote on/off control interface
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | PV1250FC |
| Product Type | DC-to-AC Power Inverter |
| Input Voltage | 12 V DC |
| Output Voltage | 120 V AC |
| Continuous Output Power | 1250 W |
| Peak Output Power | 2500 W (Double-Boost) |
| OverPower Output | 1875 W (up to 1 hr) |
| Output Frequency | 60 Hz |
| Output Waveform | PWM sine-wave approximation |
| Output Connectors | 2 × NEMA 5-15R outlets |
| DC Input Terminals | Dual screw terminal posts |
| Cooling | Internal fan |
| Protection | Circuit breaker overload |
| Remote Interface | RJ45 port for remote switch |
| Operating Temp Range | 0 - 40 °C (typical) |
| Dimensions (W×H×D) | ~8.75″ × 7″ × 9″ (222×177×228 mm) |
| Weight | ~22.5 lb (10.2 kg) |
| Compliance | RoHS |
