Detailed Specifications

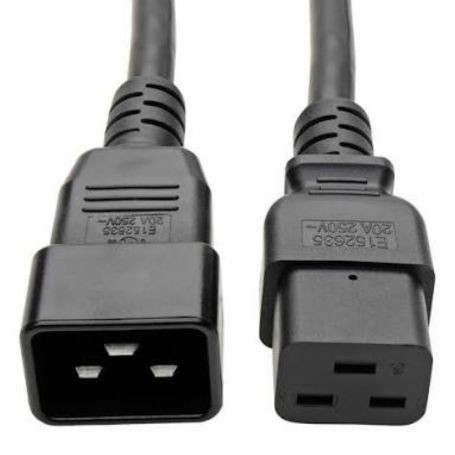

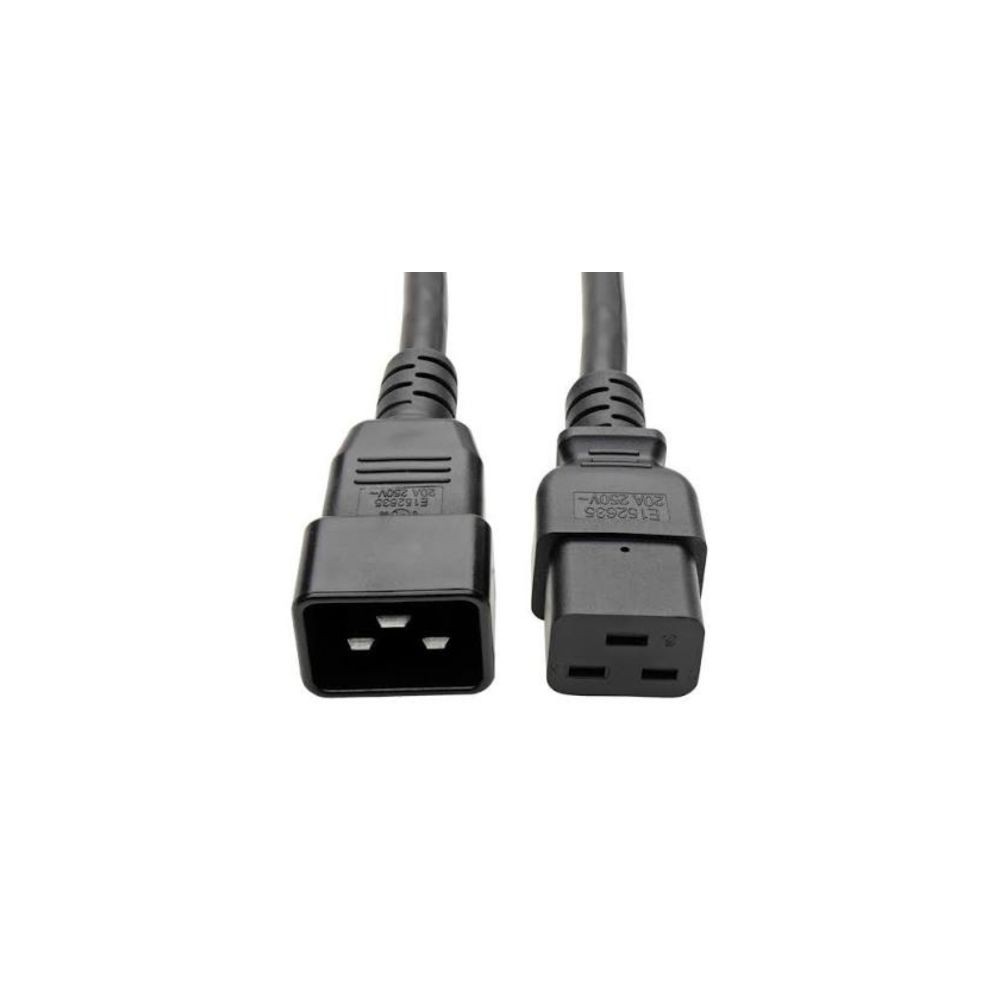

Eaton P036-006 Tripp Lite 6ft Power Extension Cord C19 C20 Heavy Duty
Overview
The Eaton Tripp Lite P036-006 is a heavy-duty IEC power extension cord designed for servers, blade server chassis, routers, network switches, PDUs and UPS systems using C19/C20 connections. It can replace a standard equipment power cord or extend an existing C20-to-C19 connection by 6 feet.
The cord uses three 12 AWG conductors and is rated for 20A at 100-250VAC. Its SJT construction, PVC jacket and VW-1 jacket rating provide a robust cable assembly for rack-level power distribution.
The P036-006 is appropriate when both the equipment and power-distribution equipment use IEC C19/C20 interfaces. It should not be used where the source or equipment requires a different connector type, or where the circuit cannot support the cord's 20A rating.
Key Features
- C20 male to C19 female connection for high-power equipment
- 12 AWG conductors support demanding 20A rack applications
- 6 ft length provides flexibility between equipment and PDU
- SJT construction with PVC jacket supports rack deployment
- UL and cUL listed for applicable North American installations
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite series |
| Part Number | P036-006 |
| Product Type | Heavy-duty power extension cord |
| Connector A | IEC 320-C20 male |
| Connector B | IEC 320-C19 female |
| Current Rating | 20A |
| Voltage Rating | 100-250VAC |
| Cable Length | 6 ft (1.83m) |
| Wire Gauge | 12 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Outer Cable Diameter | 11mm |
| Cable Color | Black |
| Connector Style | Straight |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 10%-65% RH |
| Storage Humidity | 10%-65% RH |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
| Device Compatibility | Server, UPS, router, network switch, PDU |
| Warranty | Lifetime limited warranty |
