Detailed Specifications

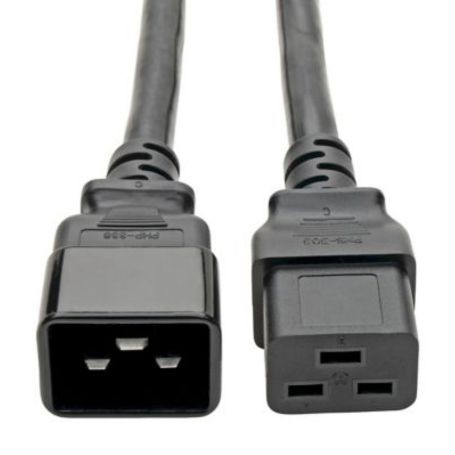

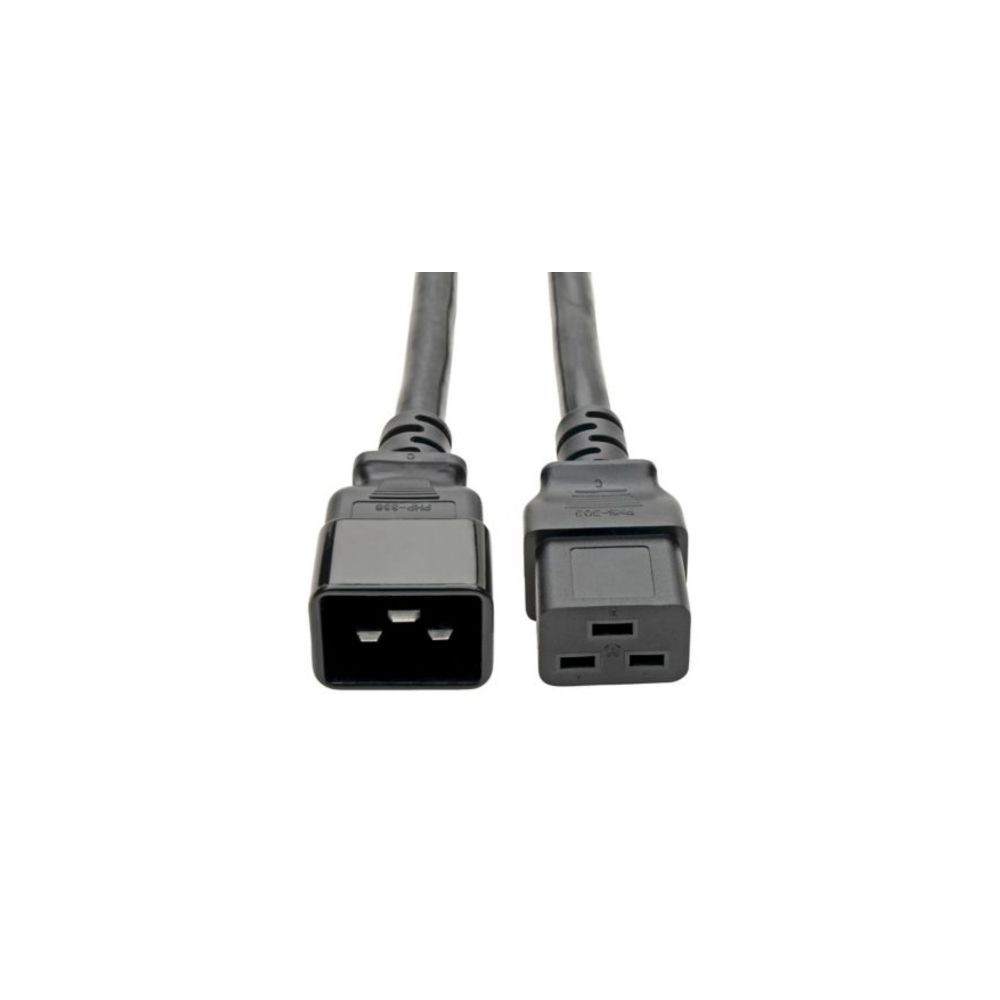

Eaton P036-002 Tripp Lite 2ft Power Extension Cord C19 C20 Heavy Duty
Overview
The Eaton P036-002 is a heavy-duty IEC power extension cord with an IEC 320-C20 male connector and IEC 320-C19 female connector. It is designed for extending or replacing power connections for servers, routers, network switches, PDUs, and UPS equipment.
Its 12 AWG, three-conductor SJT construction supports loads up to 20A across a 100-250VAC range. The 2 ft length provides short-run flexibility while helping reduce excess cable in rack and equipment installations.
The straight C20-to-C19 configuration is intended for equipment with matching IEC interfaces. It should not be used where the equipment requires a different connector configuration or where the electrical load exceeds the 20A rating.
Key Features
- 20A, 100-250VAC rating supports high-power equipment
- 12 AWG SJT construction supports demanding power loads
- C20 male to C19 female provides IEC extension capability
- 2 ft length limits excess cable in rack installations
- VW-1 PVC jacket provides specified cable protection
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | P036-002 |
| Product Type | Heavy-duty extension cord |
| Connector A | IEC 320-C20 male |
| Connector B | IEC 320-C19 female |
| Current Rating | 20A |
| Voltage Rating | 100-250VAC |
| Cable Length | 2 ft (609.6 mm) |
| Wire Gauge | 12 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Outer Cable Diameter | 11 mm |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Color | Black |
| Connector Style | Straight |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 10%-65% RH |
| Device Compatibility | Server, Router, UPS, Network Switch, PDU |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
