Detailed Specifications
Eaton P036-010 Tripp Lite 10ft Power Extension Cord C19 C20 Heavy Duty 20A 250V
Overview

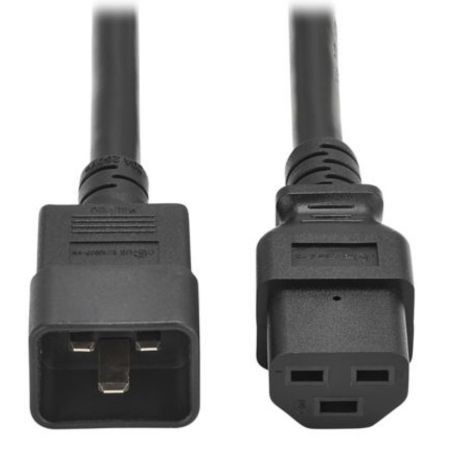

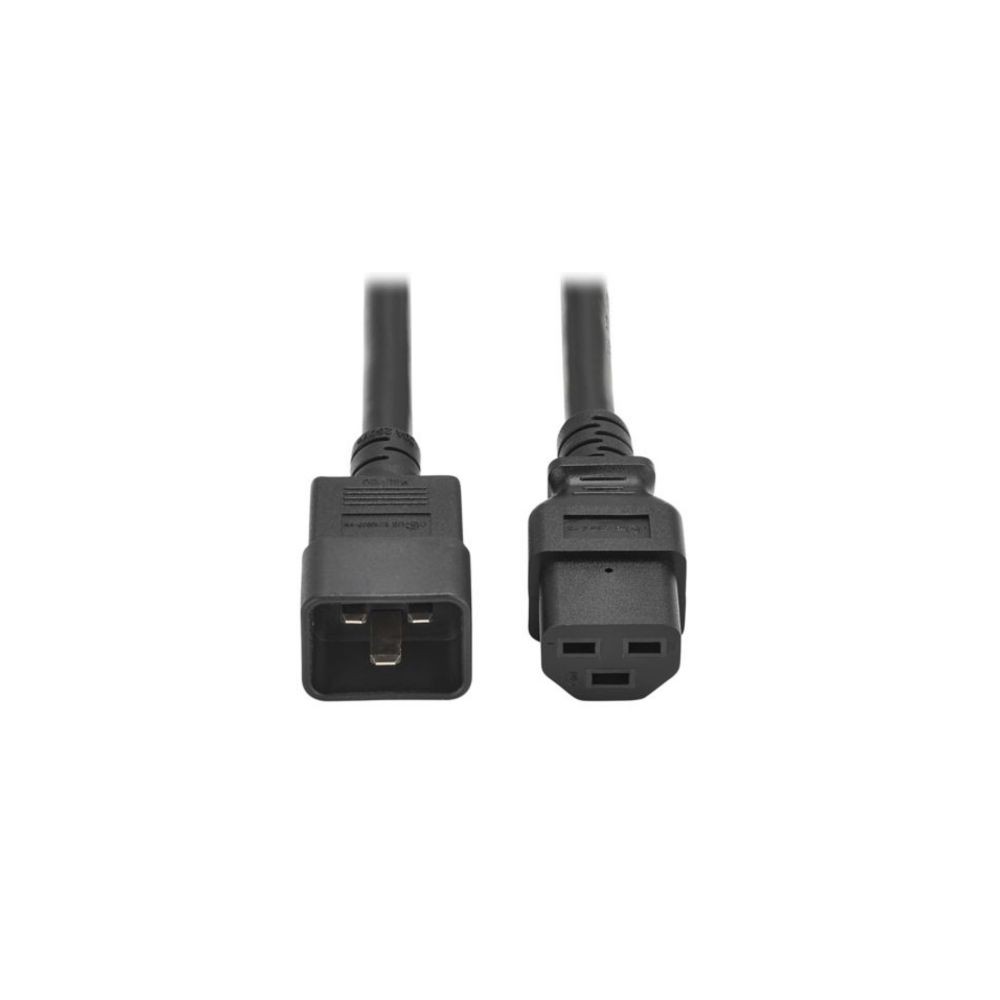

The Eaton Tripp Lite P036-010 is a 10 ft heavy-duty power extension cord with an IEC 60320 C20 plug and IEC 60320 C19 receptacle. It is designed to extend power connections for servers, routers, network switches, PDUs, UPS systems, and other high-output equipment.
The cord uses 12 AWG, 3-conductor SJT cable and is rated for 20A at 250VAC. The 10 ft length provides additional routing flexibility in rack and data-center installations.
Use it where the equipment and power-distribution hardware require compatible C20/C19 IEC connections. It should not be used where a different connector type, current rating, or electrical configuration is required.
Key Features
- 20A, 250VAC rating supports high-output IT equipment
- C20-to-C19 connectors support compatible power systems
- 12 AWG, 3-conductor SJT cable handles high-power loads
- 10 ft length provides flexible rack-level cable routing
- Supports servers, PDUs, UPS units and network equipment
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P036-010 |
| Product Type | Power Extension Cord |
| Current Rating | 20 A |
| Voltage Rating | 250 VAC |
| Cable Length | 10 ft (3.05 m) |
| Wire Gauge | 12 AWG |
| Number of Conductors | 3 |
| Cable Type | SJT |
| Input Connector | IEC 60320 C20 |
| Output Connector | IEC 60320 C19 |
| Outer Cable Diameter | 11 mm |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Operating Temperature | -20°C to 60°C |
| Compatibility | Server, Router, UPS, Network Switch, PDU |
