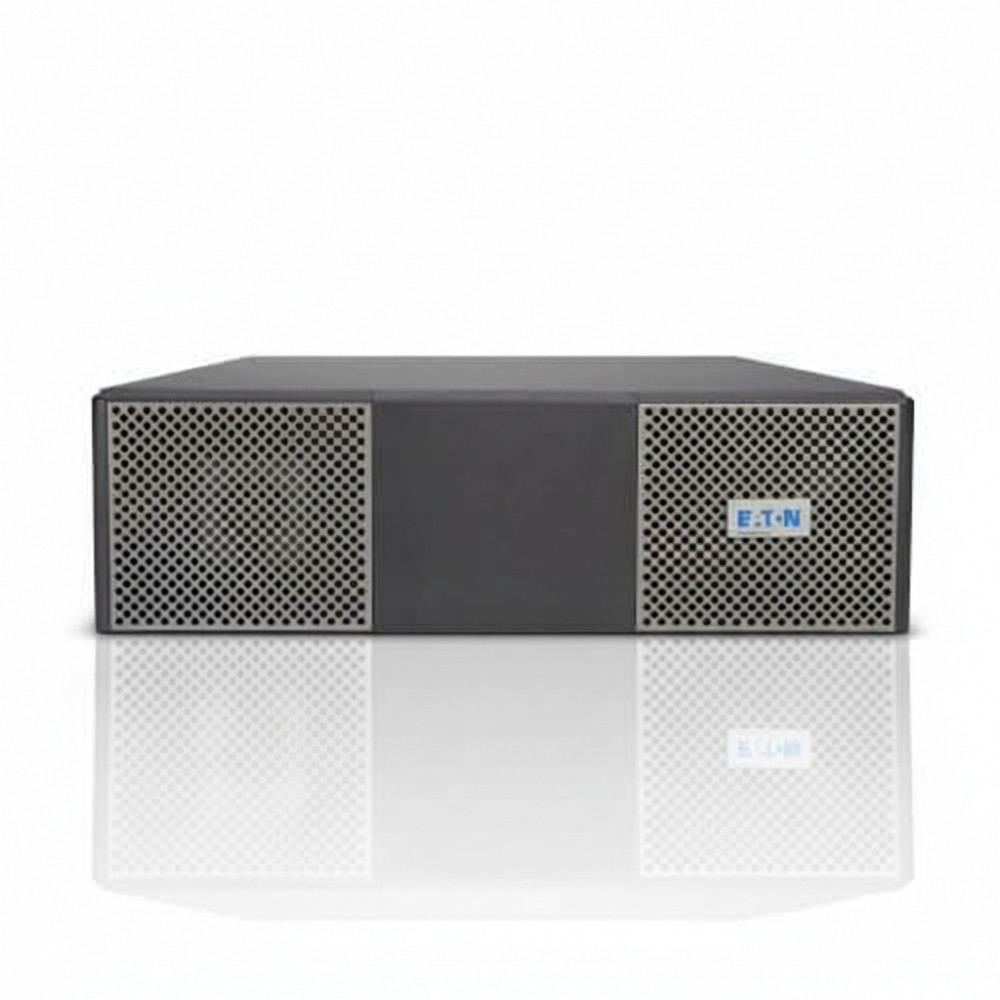

Eaton 9PXPPDM2 - PowerPass Distribution Module 3U
Overview
The Eaton 9PXPPDM2 is a 208 V PowerPass distribution module designed as an accessory for larger Eaton 9PX online UPS systems. IT engineers and data center technicians deploy this module to distribute conditioned UPS output power to downstream devices and to facilitate safe service or maintenance transitions without interrupting protected loads. It is used where hardwired input and output termination is required, such as in structured 208 V rack power environments.
This module provides hardwired input and output connections, enabling integration with branch circuit infrastructure and load distribution panels. It supports 208/240 V single-phase power and is engineered to deliver multiple load feeds via terminal block wiring and distribution paths appropriate for high-availability IT racks.
The 9PXPPDM2 occupies 3U of rack space in a standard 19-inch equipment rack. It integrates with Eaton UPS systems rated 5 kVA, 6 kVA, and 3.3 kVA (with hardwired UPS configurations), allowing it to be positioned above or alongside the UPS and related power components in IDF/MDF closets, network integration racks, or small data center deployments.
Electrical integration requires connection to a dedicated 208 V branch circuit with appropriate overcurrent protection, and loads are distributed from this module to downstream circuits via hardwired terminations. Eaton's installation guides document recommended conductor sizes and breaker ratings for safe operation and compliance with electrical codes.
In a typical deployment, the 9PXPPDM2 is installed directly above a UPS in a rack row and wired to the upstream panel. Downstream circuits feeding servers, switches, and storage chassis are then terminated at the module's output blocks, allowing technicians to isolate power feeds during service with minimal disruption to protected IT equipment.
This distribution module is not a UPS; it does not provide battery backup, power conditioning, or voltage regulation and should only be used with compatible Eaton 9PX UPS models in installations that require hardwired power distribution.
Key Features
- 3U rack PowerPass distribution for 208 V UPS systems
- Hardwired input connection for branch circuit power feeds
- Output terminal blocks for multi-load distribution
- Includes 4-post rack kit and tower brackets
- 0-95 % non-condensing humidity rating
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | 9PXPPDM2 |
| Product Type | PowerPass Distribution Module |
| Input Connection | Hardwired |
| Output Termination | Hardwired terminal blocks |
| Voltage | 208/240 V AC single-phase |
| Form Factor | Rack/Tower |
| Rack Height | 3U |
| Dimensions (H × W × D) | 5.1 × 17.3 × 25.4 in |
| Weight | 95 lb |
| Relative Humidity | 0-95 % non-condensing |
| Operating Temperature | 0 °C to 40 °C |
| Rack Mount Kit | Included (4-post + tower brackets) |
| Compliance | CE Marked, cULus listed |
| Warranty | 3 years limited |
| Compatible UPS | Eaton 9PX5K, 9PX6K, 9PX3K3UN |
