Detailed Specifications

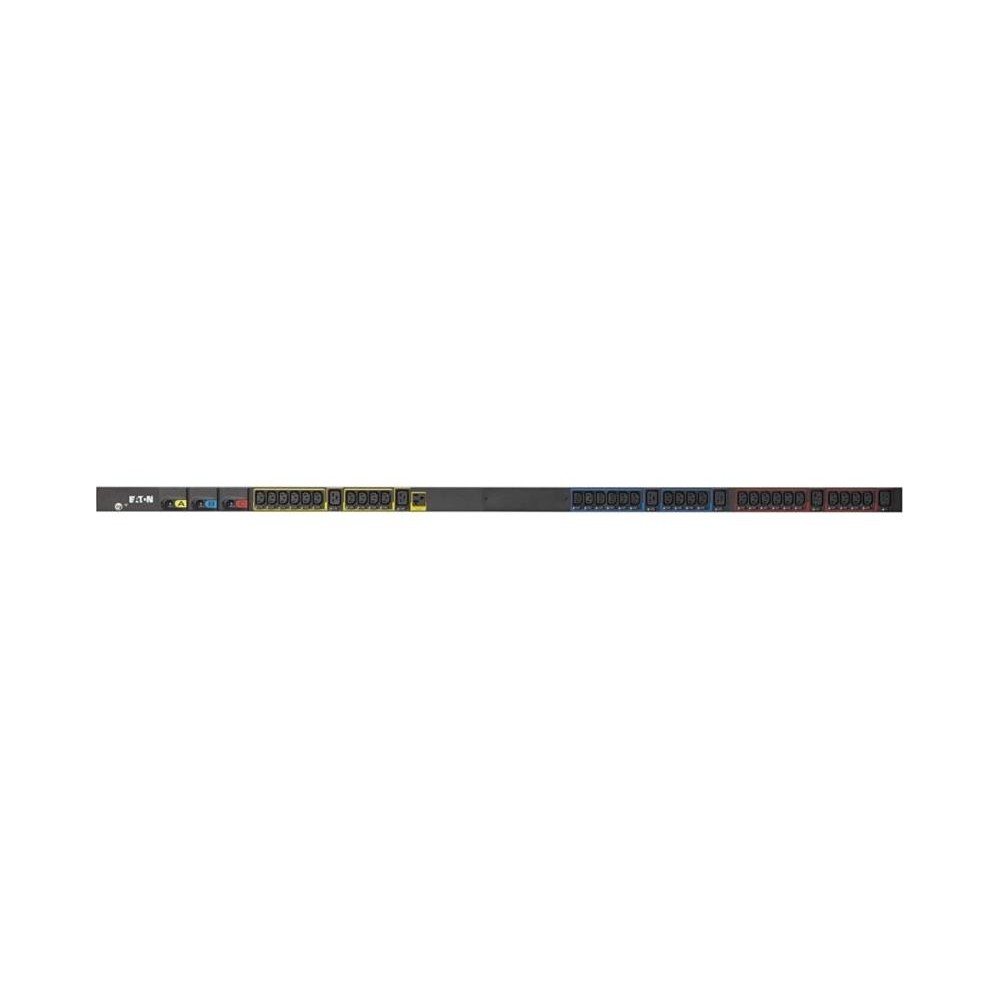

Eaton EBA310-10 - Basic Power Distribution Unit
Overview :
Engineered for enterprise data centers and high-density server racks, this vertical power distribution unit delivers reliable three-phase electrical power management to multiple rack-mounted IT assets.
It delivers a maximum capacity of 8.64 kW at 120/208V with a 24A continuous amperage rating, supporting dense server configurations and high-draw networking equipment.
Designed for 0U vertical rack integration, mounting cleanly to the rear or side channels of standard server enclosures to preserve critical internal U space.
Compatible with standard three-phase power infrastructures utilizing NEMA L21-30 source connections. Do not use with single-phase power drops or incompatible input receptacles.
Key Features :
Delivers robust 8.64kW max power capacity
Features 37 total diverse output receptacles
Includes Eaton patented plug-retention
Space-saving 0U vertical rack form factor
Includes 10-foot heavy-duty power cord
Specifications :
| Specification | Details |
| Brand | Eaton |
| Part Number | EBA310-10 |
| Product Type | Basic Power Distribution Unit |
| Power Capacity | 8.64 kW |
| Input Voltage | 120/208V 3-Phase |
| Amperage Rating | 24A |
| Input Plug | NEMA L21-30P |
| Outlets | (30) C13, (6) C19, (1) 5-20R |
| Form Factor | 0U Vertical |
| Cord Length | 10 ft |
