Detailed Specifications

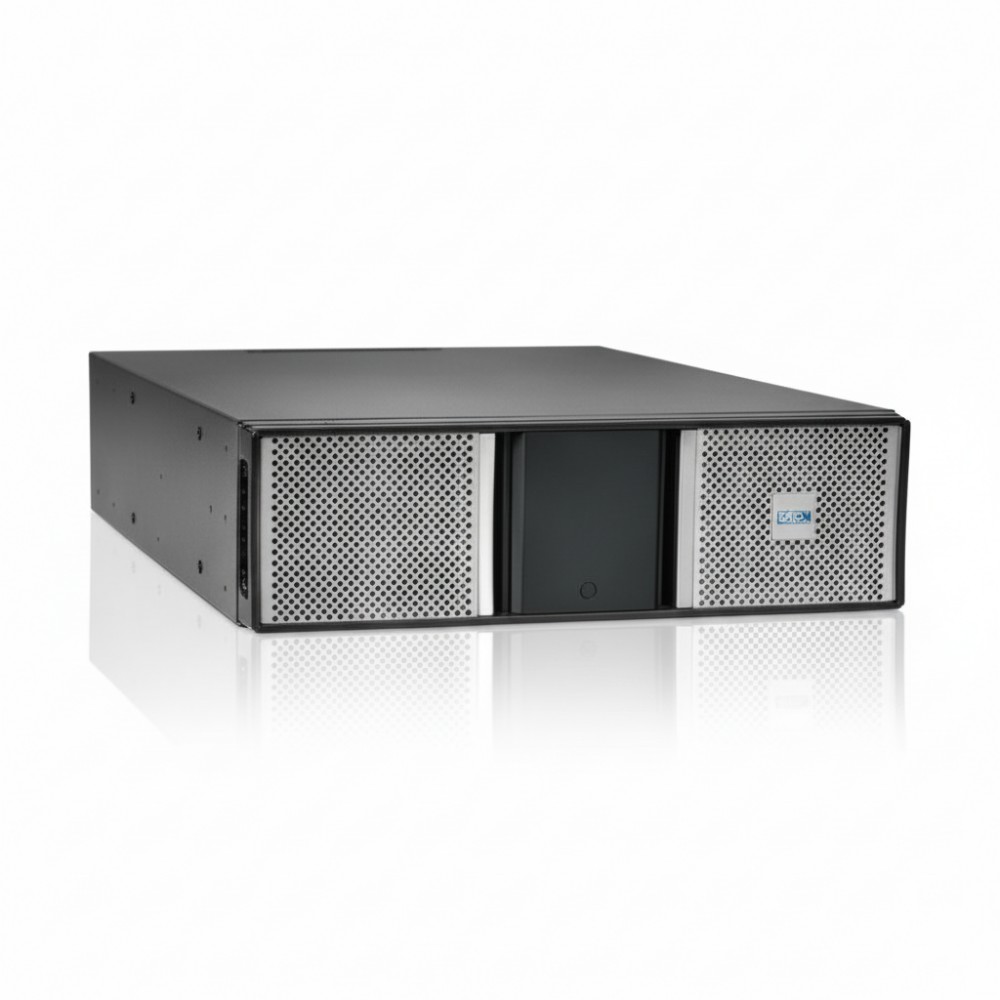

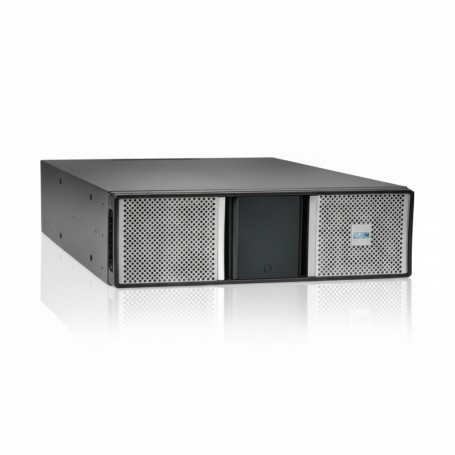

Eaton 9PXPPDM2G2 9PX G2 208V to 120V 3U Rack PDM
Overview
The Eaton 9PXPPDM2G2 is a specialized Power Distribution Module (PDM) engineered to bridge the voltage gap in demanding IT environments. Designed as a critical accessory for Eaton's 9PX G2 Uninterruptible Power Supply (UPS) systems ranging from 3kVA to 6kVA, this module enables seamless integration of 208V UPS output with standard 120V IT equipment. It serves as a vital component for enterprises requiring a robust solution to power mixed-voltage infrastructures, preventing costly downtime and ensuring operational continuity. This PDM incorporates advanced features to enhance power reliability and system maintainability. With hardwired input and output connections, the 9PXPPDM2G2 provides a secure and stable power path, minimizing potential failure points often associated with traditional plug-and-socket configurations. Resettable 30A circuit breakers offer immediate protection against overload conditions, safeguarding connected servers and network devices from power fluctuations. Designed for versatile deployment, the 9PXPPDM2G2 occupies 3U of space within an EIA-standard 19-inch rack, or it can be adapted for tower installations using the included hardware. Its key operational advantage is the front-panel maintenance bypass switch, which allows IT personnel to service or replace the connected 9PX G2 UPS without powering down critical loads. This ensures that essential equipment remains energized, eliminating interruptions during routine maintenance or emergency repairs.
