Detailed Specifications

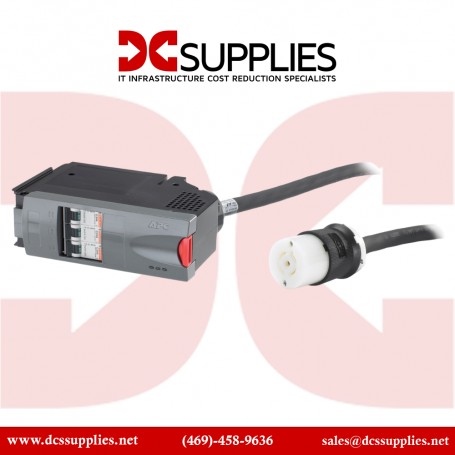

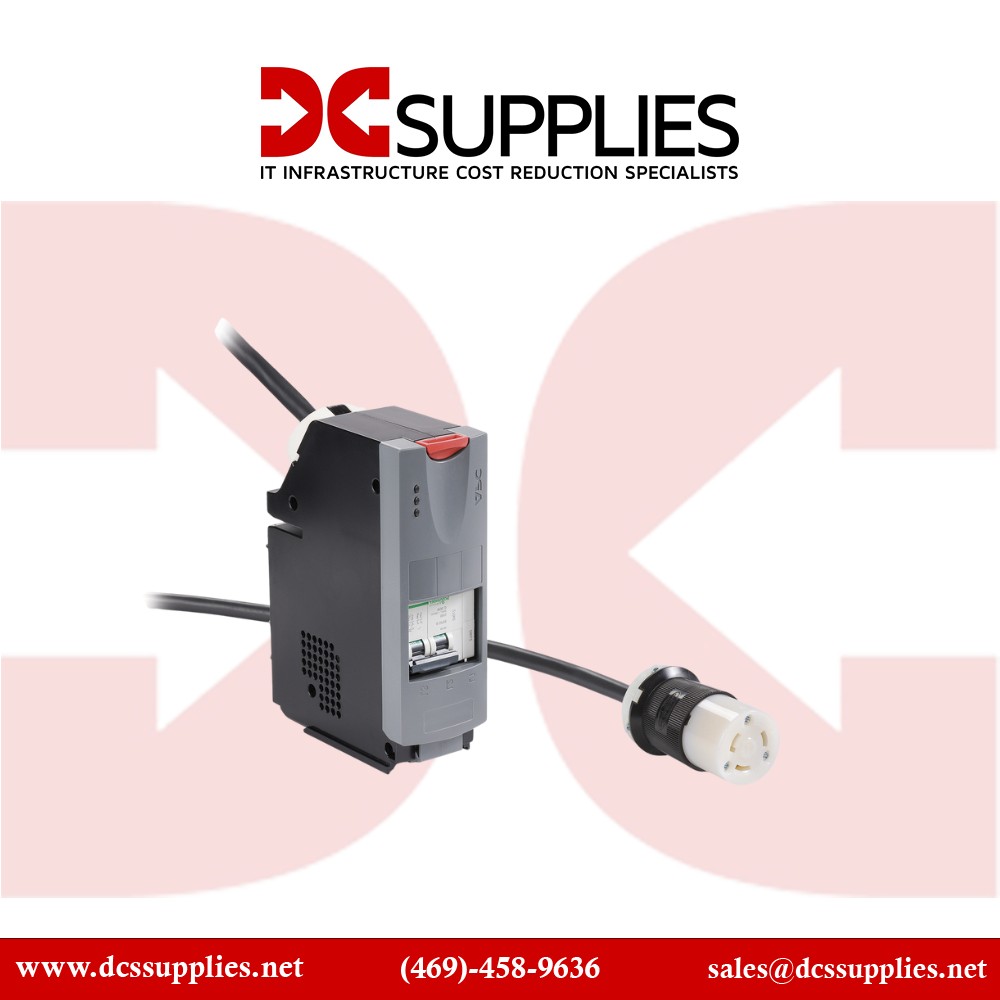

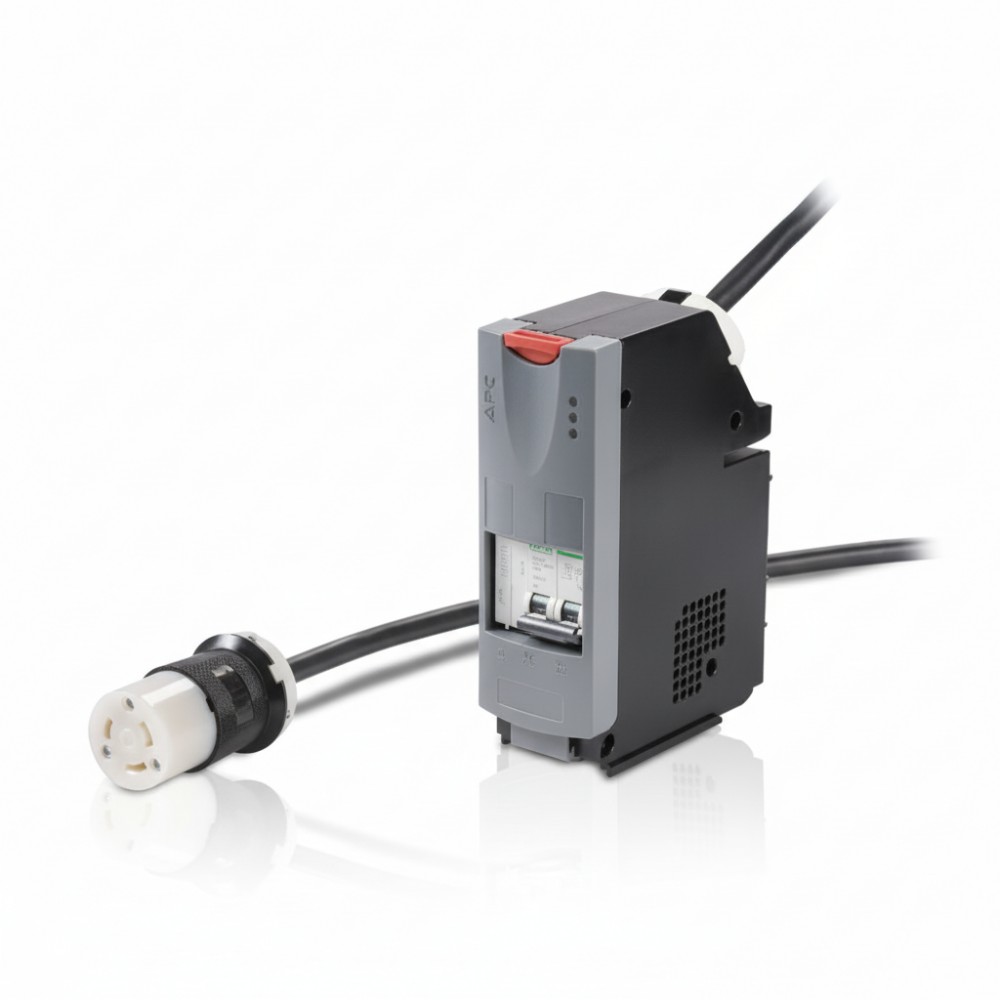

APC PDM2330L6-23-740 - IT Power Distribution Module
Overview
The APC PDM2330L6-23-740 is a modular power distribution unit designed for APC's modular rack PDU systems. It operates at 208 V and supports a 30 A two-pole input, distributing power through a single NEMA L6-30R output. The module includes a built-in circuit breaker and current monitoring capability. Its modular design allows hot swapping and automatic detection by the parent PDU chassis, minimizing downtime during upgrades or replacements. It is ideal for data centers and enterprise racks seeking scalable, maintainable power distribution.
Key Features
30 A two-pole input with built-in circuit breaker
Single NEMA L6-30R outlet for load connection
Modular plug-in format for hot replacement
Auto-detection by modular PDU chassis upon installation
Current monitoring for load management
Specifications
| Specification | Detail |
|---|
| Brand | APC (Schneider Electric) |
| Part Number | PDM2330L6-23-740 |
| Product Type | Modular Power Distribution Module |
| Input Voltage | 208 V AC |
| Maximum Current | 30 A |
| Output Voltage | 208 V AC |
| Output Connector | 1 × NEMA L6-30R |
| Circuit Protection | Integrated circuit breaker |
| Monitoring | Current monitoring functionality |
| Form Factor | Plug-in modular module |
| Height | 5.00 in (127 mm) |
| Width | 17.48 in (444 mm) |
| Depth | 15.98 in (406 mm) |
| Net Weight | 9.46 lb (4.29 kg) |
| Operating Temp | 0 °C to 30 °C |
| Storage Temp | −15 °C to 40 °C |
| Humidity (Operating / Storage) | 0-95% non-condensing |
