Overview

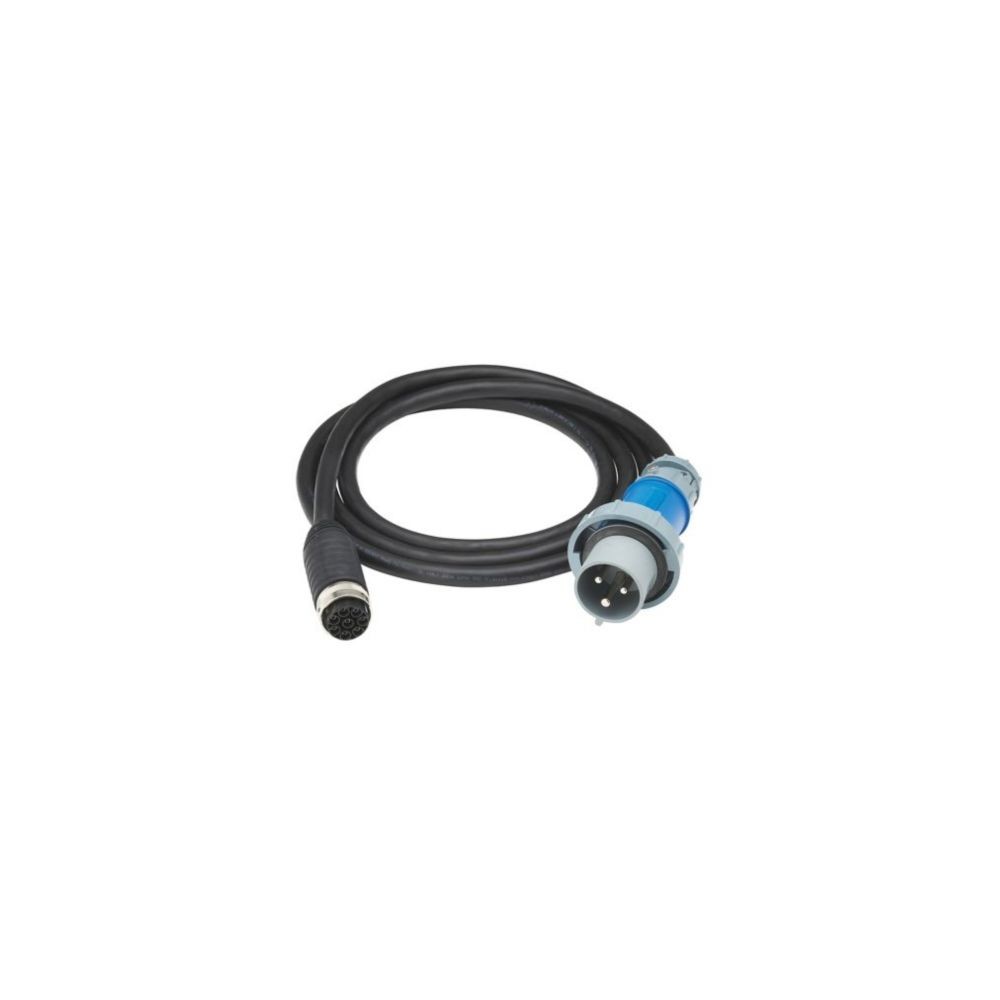

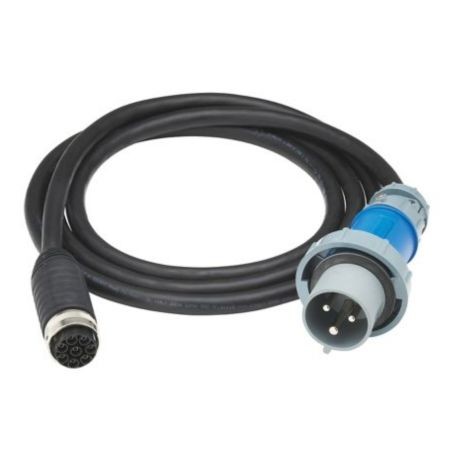

The Eaton Tripp Lite CBL354-10 is a 10-foot input power cord designed for compatible Eaton Universal Input Rack PDUs. It uses an IEC 60309 332P6W plug configuration and is specified for single-phase power applications.
PDU Power Connection
The CBL354-10 connects a compatible Eaton Universal Input PDU to an appropriate AC power source. Eaton specifies the cable for Universal Input PDU configurations supporting 240V single-phase operation in AMER installations and 230V single-phase operation in EMEA/APAC installations.
Electrical Configuration
For AMER applications, Eaton specifies a 30A panel breaker, 24A de-rated current, 240V input, and a maximum PDU power of 5.8 kVA. For EMEA/APAC configurations, Eaton lists 32A current at 230V with a maximum PDU power of 7.4 kVA.
Cable Length and Connector
The cable measures 10 feet (3 meters) and uses a 332P6W input plug. Its detachable input-cable design is intended for use with compatible Eaton Universal Input PDU systems.
Key Features
- 10-foot (3-meter) input power cable
- IEC 60309 332P6W plug configuration
- Designed for compatible Eaton Universal Input Rack PDUs
- Supports single-phase PDU power configurations
- 3-year limited warranty
Applications
The CBL354-10 is intended for compatible Eaton Universal Input Rack PDU installations where a 332P6W input connection and 10-foot cable length are required.
DC Supplies Product Note
Verify the PDU model, installation region, receptacle configuration, and electrical service before selecting this cable. Eaton specifies different electrical ratings by region, so the 240V AMER and 230V EMEA/APAC configurations should not be treated as interchangeable ratings.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | CBL354-10 |
| Product Type | Universal Input PDU Power Cord |
| Application | Eaton Universal Input Rack PDUs |
| Plug Type | IEC 60309 332P6W |
| Cable Length | 10 ft (3 m) |
| Power Phase | Single-phase |
| AMER Voltage | 240V |
| AMER Panel Breaker | 30A |
| AMER De-rated Current | 24A |
| AMER Maximum PDU Power | 5.8 kVA |
| EMEA/APAC Voltage | 230V |
| EMEA/APAC Current | 32A |
| EMEA/APAC Maximum PDU Power | 7.4 kVA |
| Design | Detachable input cable |
| Warranty | 3-year limited |
| Compliance | RoHS |
FAQs
What is the CBL354-10 used for?
It is an input power cord for compatible Eaton Universal Input Rack PDUs.
What plug does the CBL354-10 use?
The cable uses an IEC 60309 332P6W plug configuration.
How long is the CBL354-10?
The cable is 10 feet (3 meters) long.
What are the Eaton-specified AMER ratings?
For AMER installations, Eaton specifies 240V single-phase input, a 30A panel breaker, 24A de-rated current, and up to 5.8 kVA per PDU.
What are the Eaton-specified EMEA/APAC ratings?
For EMEA/APAC installations, Eaton specifies 230V single-phase operation at 32A, with up to 7.4 kVA per PDU.
