Detailed Specifications

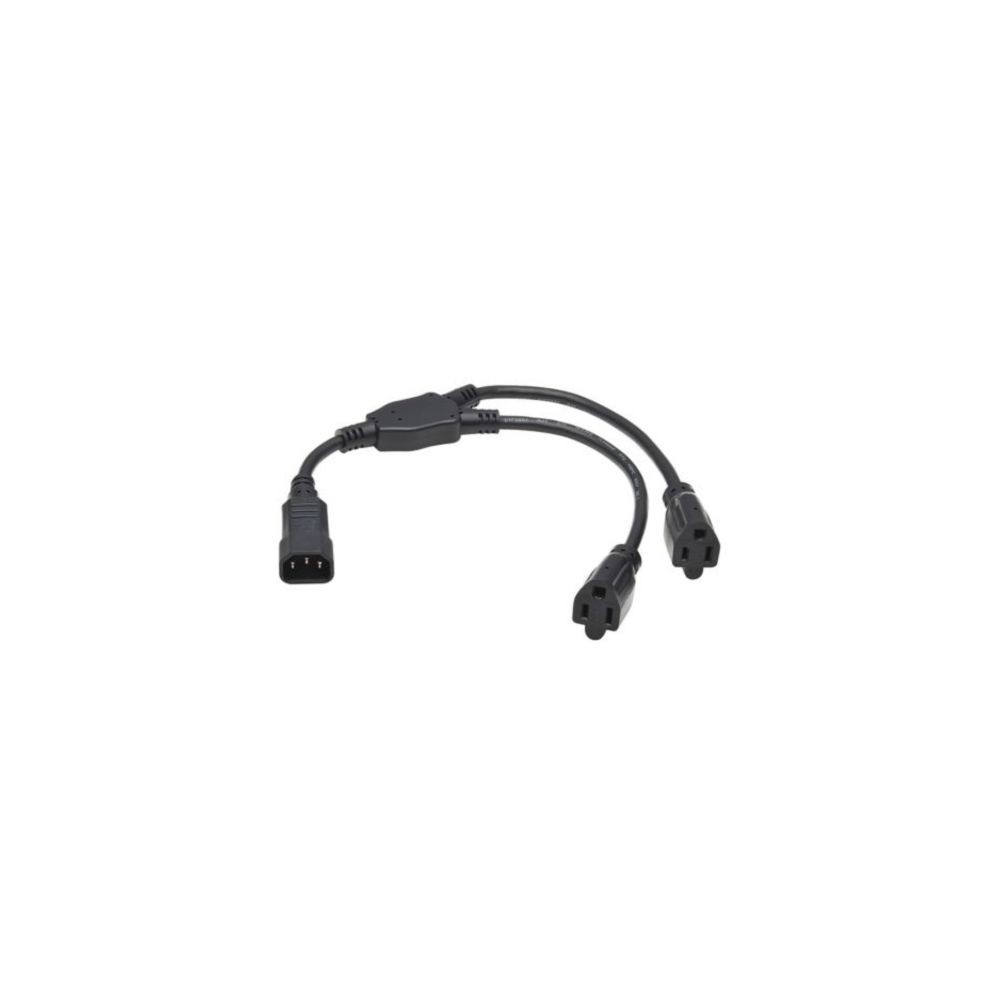

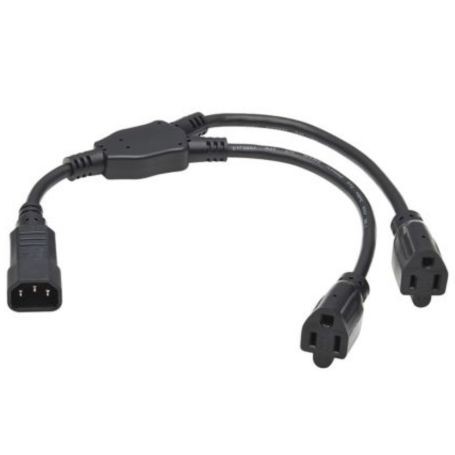

Eaton P002-18N-2R Tripp Lite Power Cord Y Splitter C14 2 NEMA 5 15R
Overview :
The Eaton Tripp Lite series P002-18N-2R is a heavy-duty power cord Y-splitter designed for enterprise server rooms, data center rack cabinets, and high-density IT environments.System administrators and facility engineers deploy this cable to allow two distinct IT devices equipped with standard NEMA 5-15P plugs to share a single C13 power source or PDU outlet, maximizing port efficiency and reducing cable clutter.
It features robust 16 AWG copper conductors rated for 13A and 125V operation across an 18-inch (46 cm) total span. The compact Y-style configuration minimizes excess slack inside confined rack enclosures while delivering balanced electrical distribution.
Optimized for deployment in data centers, network distribution closets, and commercial office hardware banks to connect peripheral devices, monitors, entry-level servers, and network switches.
Compatible with standard IEC-320-C14 inlets/PDU ports and dual NEMA 5-15R device power cords. Do not use this splitter with high-draw enterprise equipment that exceeds a combined 13-ampere load, or with international 230V circuits unless step-down conversion is applied.
Key Features :
Powers two devices from a single C13 outlet to save PDU space
Heavy-duty 16 AWG wire supports up to 13A and 125V electrical loads
Compact 18-inch length reduces messy cable slack in rack enclosures
Fully molded black PVC jacket ensures long-term durability
UL and cUL listed construction meets strict safety compliance
Specifications :
| Specification | Detail |
| Brand | Eaton (Tripp Lite Series) |
| Part Number | P002-18N-2R |
| Product Type | Power Cord Y-Splitter |
| Current Rating | 13 Ampere max |
| Voltage Rating | 125 VAC |
| Wire Gauge | 16 AWG |
| Cable Length | 1.5 ft (18 in. / 46 cm) |
| Connector A (Input) | IEC-320-C14 (Male) |
| Connector B (Output) | 2 x NEMA 5-15R (Female Receptacles) |
| Jacket Material | PVC (SJT) |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Certifications | UL Listed, cUL Listed, RoHS, REACH |
