Detailed Specifications
Eaton P036-EN6-6 Tripp Lite 6ft PDU Power Cord C19 P Lock Lite C20 20A
Overview

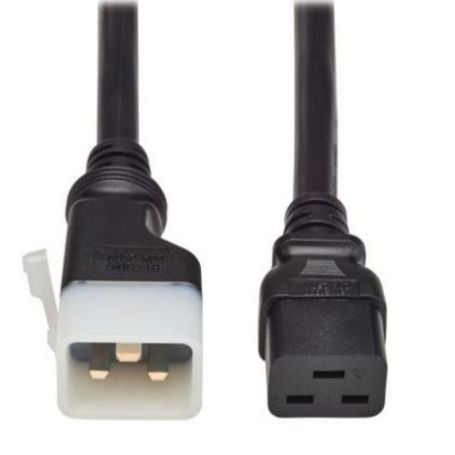

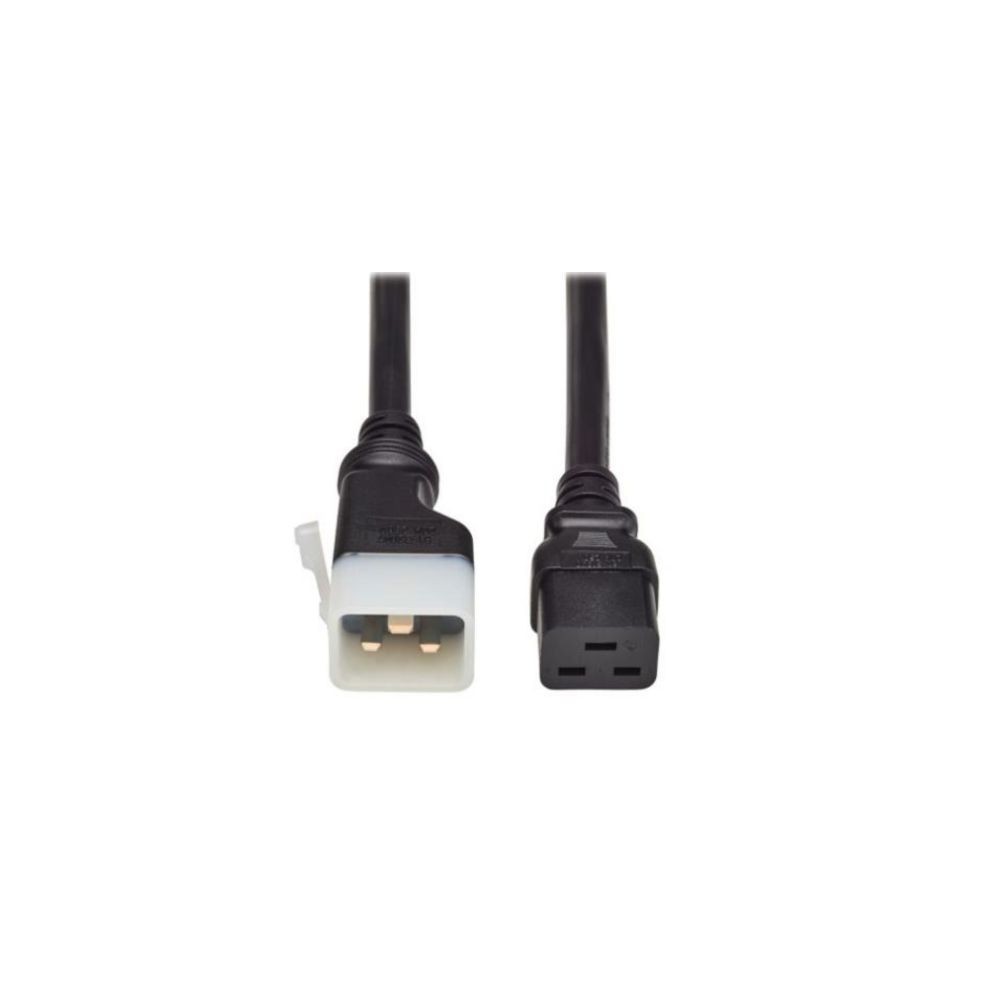

The Eaton P036-EN6-6 is a six-pack of PDU power cords featuring an IEC 60320 C19 female connector and IEC 60320 C20 male P-Lock Lite connector. It is designed for servers, blade servers, network devices, routers, PDUs, UPS systems, computers, monitors, and other compatible high-power equipment.
Each cord uses 12 AWG, three-conductor construction and is rated for 20A at 250VAC. The 6 ft length provides practical reach between high-power equipment and PDU connections while supporting organized rack deployment.
The P-Lock Lite C20 connector is designed to help prevent accidental cable disconnection in crowded PDU environments. The six-pack format is suited to multi-device rack deployments where several identical power connections are required. It should not be used with equipment or circuits exceeding the specified 20A/250V rating.
Key Features
- P-Lock Lite C20 helps reduce accidental cable disconnections
- 20A, 250VAC rating supports high-power rack equipment
- 12 AWG three-conductor cable supports demanding loads
- 6 ft length provides flexible rack equipment placement
- Six-pack format simplifies multi-device power deployment
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | P036-EN6-6 |
| Product Type | PDU power cord |
| Package Quantity | 6 cords |
| Connector A | IEC 60320 C19 female |
| Connector B | IEC 60320 C20 male, P-Lock Lite |
| Current Rating | 20A |
| Voltage Rating | 250VAC |
| Cable Length | 6 ft (1.8 m) |
| Wire Gauge | 12 AWG |
| Number of Conductors | 3 |
| Cable Color | Black |
| Locking Feature | P-Lock Lite |
| Device Compatibility | Blade Server, PDU, Server, Router, Network Device, Computer, Monitor/HDTV, Printer, Tablet, UPS |
| Compliance | RoHS, REACH |
