Detailed Specifications

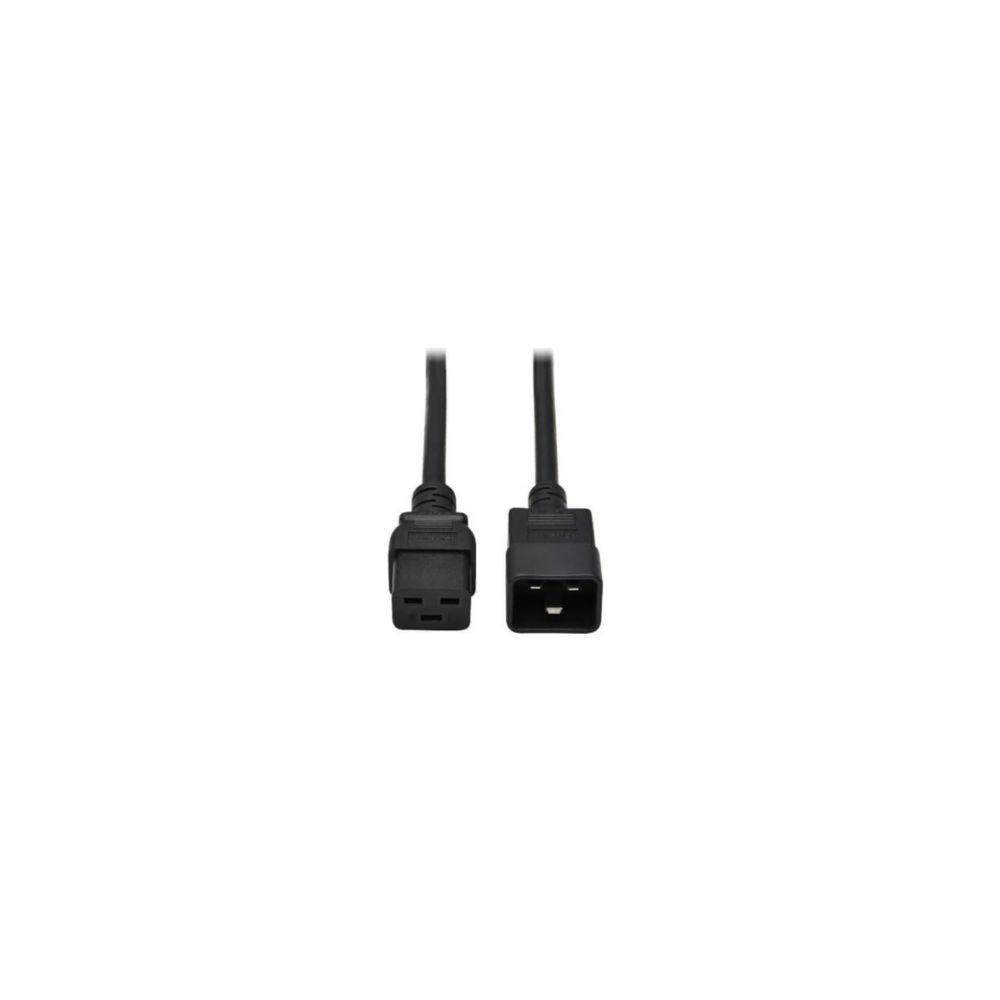

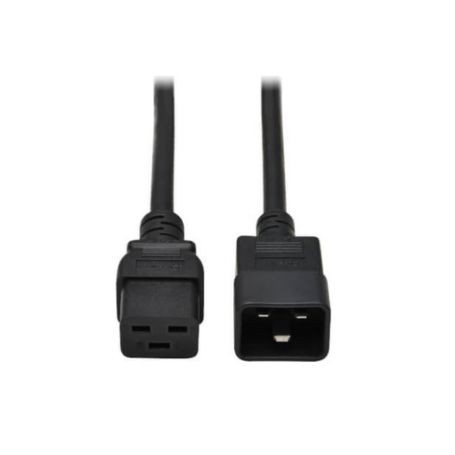

Eaton P036-010-15A Tripp Lite 10 ft C19 to C20 Power Extension Cord
Overview
The Eaton P036-010-15A is a Tripp Lite by Eaton heavy-duty C19-to-C20 power extension cord designed for high-power servers, routers, network switches, PDUs, UPS systems, and other IT equipment. It uses a 14 AWG, 3-conductor SJT cable rated for 15A at 250V AC.
The Tripp Lite P036-010-15A provides an IEC-320-C20 male plug to IEC-320-C19 female receptacle and measures 10 ft. (3.05 m). The heavy-duty 14 AWG construction is intended for higher-power connections where a standard lighter-gauge power cord may not be appropriate.
It is suitable for extending or replacing compatible equipment power connections in data centers, server rooms, network racks, UPS deployments, and PDU installations.
Key Features
- Tripp Lite by Eaton heavy-duty C20-to-C19 power extension cord
- 10 ft. (3.05 m) length for flexible equipment placement
- 14 AWG, 3-conductor SJT construction
- Rated for 15A and 250V AC
- Suitable for servers, routers, network switches, PDUs, and UPS systems
Specifications
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite by Eaton |
| Part Number | P036-010-15A |
| Product Type | Tripp Lite C19 to C20 Power Extension Cord |
| Cable Length | 10 ft. (3.05 m) |
| Input Connector | IEC-320-C20 Male |
| Output Connector | IEC-320-C19 Female |
| Voltage Rating | 250 VAC |
| Current Rating | 15A |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cable Type | SJT |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Cable Jacket Rating | VW-1 |
| Outer Cable Diameter | 9.3 mm |
| Connector Style | Straight |
| Device Compatibility | Server, Router, Network Switch, UPS, PDU |
| Operating Temperature | -10°C to 60°C |
| Compliance | UL Listed, cUL Listed, RoHS |
| Warranty | Lifetime Limited |
