Detailed Specifications

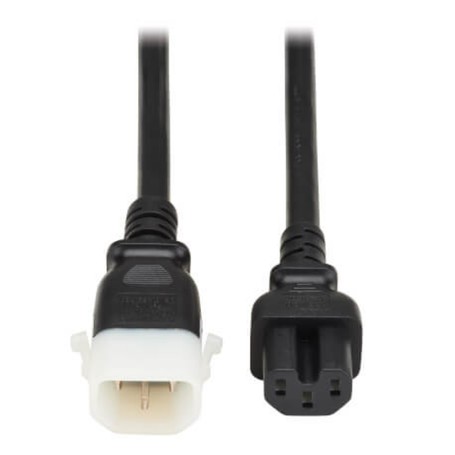

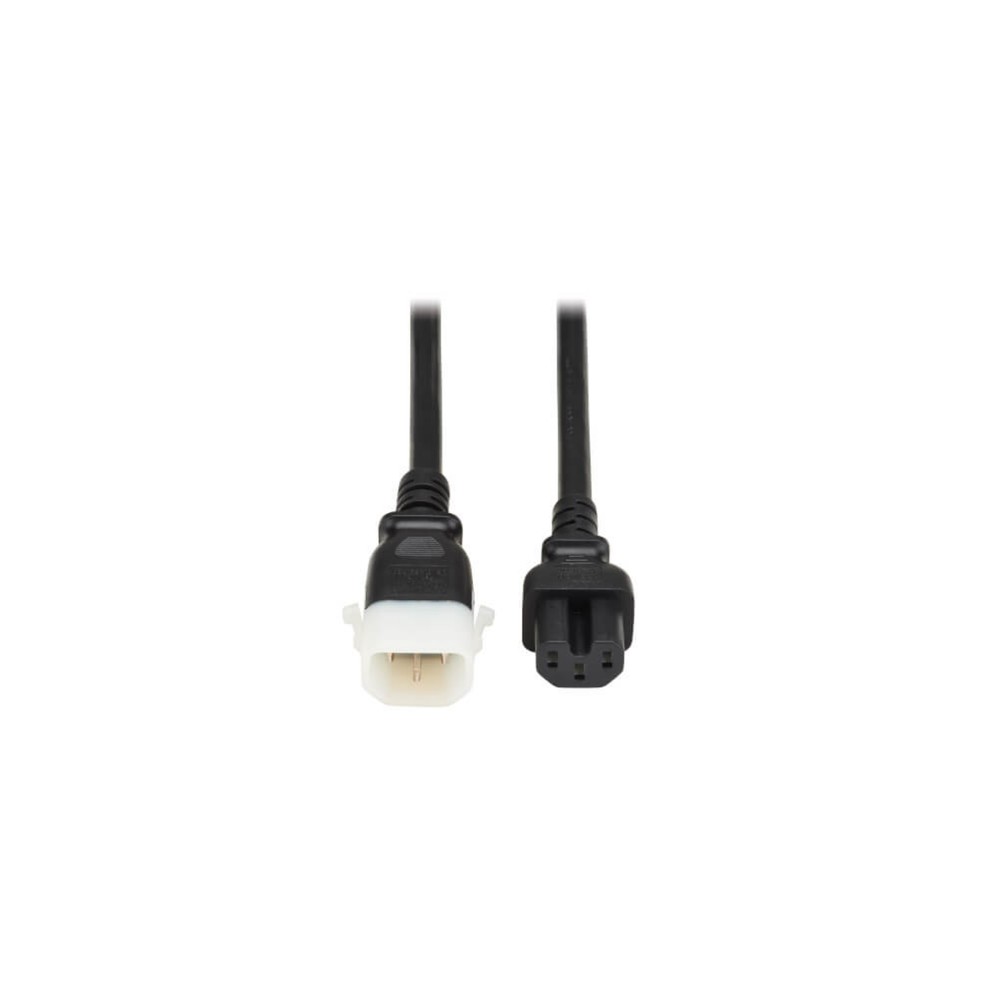

Eaton P018-E06-6 PDU Power Extension Cord 6 Pack
Overview
The Eaton P018-E06-6 (from the Tripp Lite series by Eaton) is a 6-pack of server-grade infrastructure power extension cables featuring an IEC-320-C14 male plug and a locking IEC-320-C13 female receptacle. This physical hardware kit is engineered to handle everyday electrical distribution inside commercial server racks, joining low-to-mid power hardware endpoints×such as standard rack servers, network switches, and routers×to Power Distribution Units (PDUs) or enterprise UPS networks.
Constructed using 17 AWG wiring, each 6-foot cable is rated for 250V and 10A, providing a reliable power connection under continuous duty cycles. The integrated P-Lock hardware on the C13 connector establishes a secure, mechanical dual-tab engagement when mated with standard C14 equipment plugs or compatible locking outlets. This design choice eliminates accidental disconnects caused by structural vibrations or manual tracing errors during maintenance windows. The standard black PVC jacket blends seamlessly into traditional layout architectures, though it should not be applied to high-current paths requiring larger 20A C19/C20 interfaces.
Key Features
Dual-tab P-Lock locking C13 connector eliminates accidental power line disconnects
Form-fitting 17 AWG conductors safely transfer continuous 10A electrical loads
Extended 6-foot length offers flexible routing options across tall server cabinets
Standard black PVC jacket provides a clean look in traditional server architecture
Convenient 6-pack configuration accelerates large-scale rack cabinet installations
Specifications
| Feature | Detail |
| Brand | Eaton (Tripp Lite Series) |
| Part Number | P018-E06-6 |
| Product Type | Power Extension Cord (6-Pack) |
| First End Connector | IEC-320-C14 (Male Plug) |
| Second End Connector | IEC-320-C13 with P-Lock (Female Receptacle) |
| Amperage Rating | 10A |
| Voltage Rating | 250V AC |
| Wire Gauge | 17 AWG |
| Number of Conductors | 3 |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Color | Black |
| Operating Temperature | 23°F to 158°F (-5°C to 70°C) |
| Standards | UL Listed, cUL Listed, RoHS |
