Detailed Specifications
Eaton P005-E10-ABL-6 Power Extension Cord 6 Pack
Overview

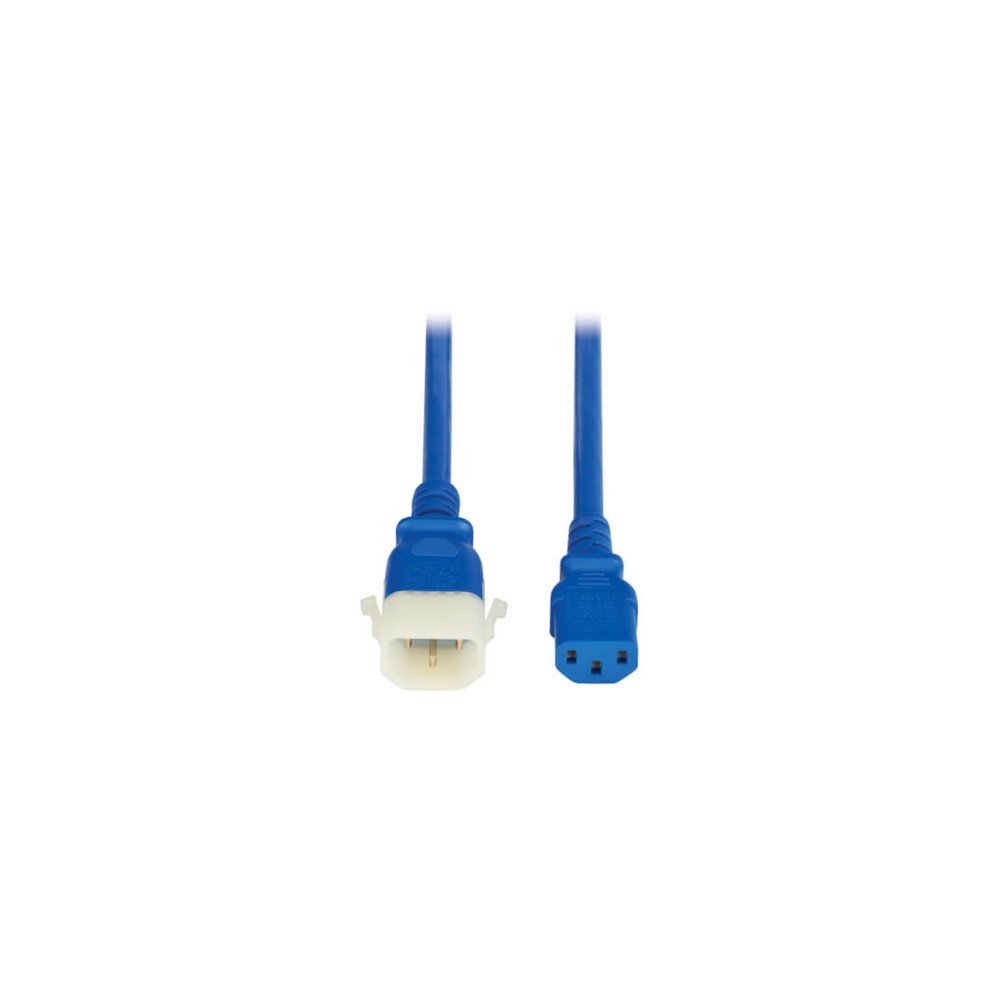

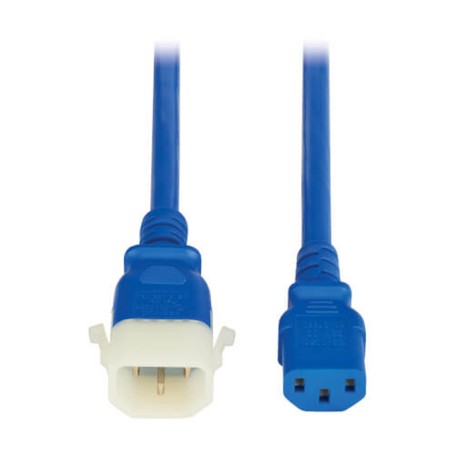

The Eaton P005-E10-ABL-6 (from the Tripp Lite series by Eaton) is a 6-pack of server-grade infrastructure power extension cables equipped with an IEC-320-C13 female receptacle and a locking IEC-320-C14 male plug. This hardware kit is engineered to handle everyday electrical distribution inside commercial server racks, joining low-to-mid power hardware endpoints×such as standard rack servers, network switches, and routers×to Power Distribution Units (PDUs) or enterprise UPS systems.
Constructed using 17 AWG wiring, each 10-foot cable is rated for 250V and 10A, providing a reliable power connection under continuous duty cycles. The integrated P-Lock hardware on the C14 connector establishes a secure, mechanical engagement when mated with P-Lock or compatible PDU high-retention outlets (such as Eaton C39 or G4 PDU configurations). This design choice eliminates accidental disconnects caused by structural vibrations or manual tracing errors during maintenance windows. The vibrant blue PVC jacket simplifies path classification in dual-feed configurations, though it should not be applied to high-current paths requiring larger 20A C19/C20 interfaces.
Key Features
P-Lock locking C14 connector stops accidental disconnections and rack downtime
Form-fitting 17 AWG conductors safely transfer continuous 10A electrical loads
Extended 10-foot length provides maximum reach across large rack gaps and enclosures
Vibrant blue PVC jacket simplifies phase path tracing in complex electrical layouts
Bulk 6-pack configuration streamlines structured deployment across new enclosures
Specifications
| Feature | Detail |
| Brand | Eaton (Tripp Lite Series) |
| Part Number | P005-E10-ABL-6 |
| Product Type | Power Extension Cord (6-Pack) |
| First End Connector | IEC-320-C13 (Female Receptacle) |
| Second End Connector | IEC-320-C14 with P-Lock (Male Plug) |
| Amperage Rating | 10A |
| Voltage Rating | 250V AC |
| Wire Gauge | 17 AWG |
| Number of Conductors | 3 |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Color | Blue |
| Compatibility | Eaton G4 PDUs, C39 outlets, Network Switches, Server UPS |
| Standards | UL Listed, cUL Listed, RoHS |
