Detailed Specifications

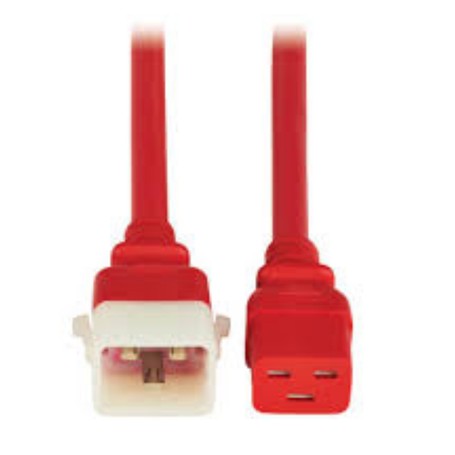

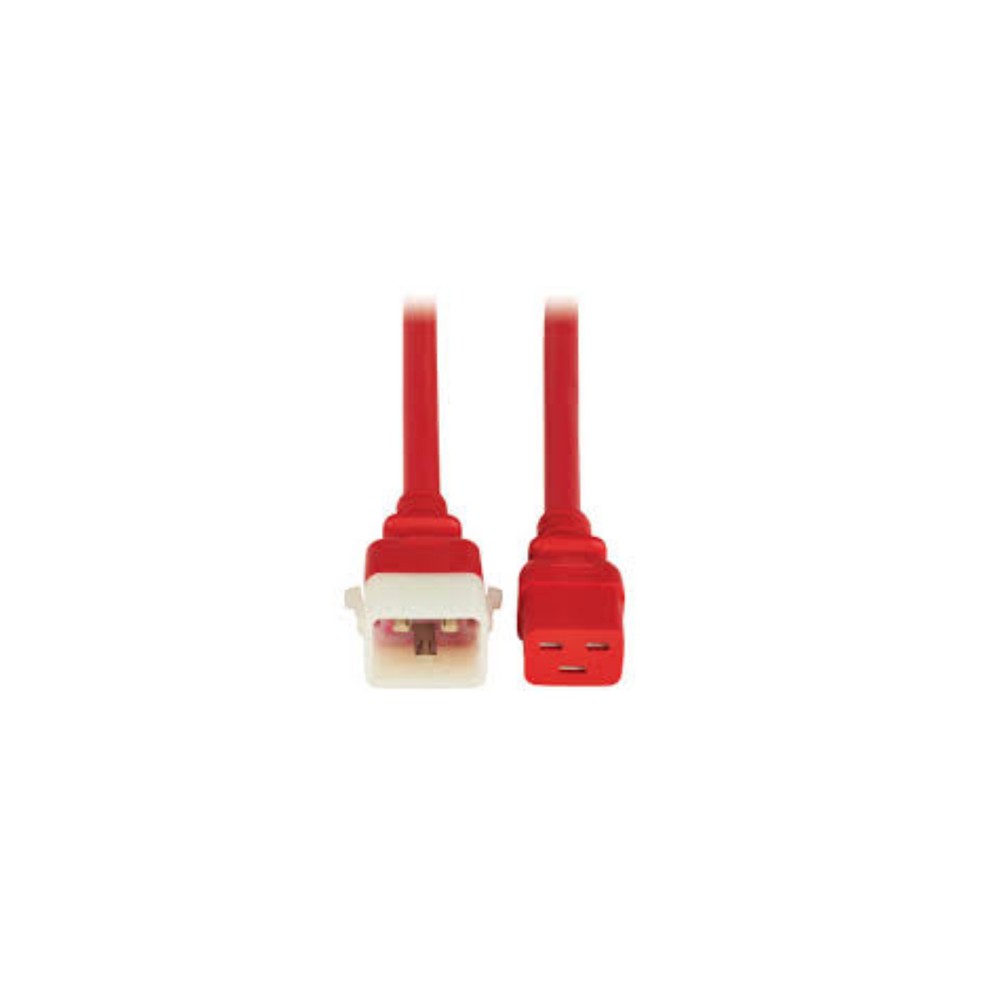

Eaton P036-E03-ARD-6 P-Lock PDU Power Cord 3 ft
Overview
The Eaton P036-E03-ARD-6 is a heavy-duty rack power cord set designed for secure power distribution between PDUs and IT equipment in data centers, server racks, and enterprise infrastructure. It uses a locking IEC C20 connector (P-Lock) to prevent accidental disconnection in high-density rack environments.
This model is a C19 to C20 power cord, rated for 20A / 250V, built with 12 AWG conductors for high-current IT loads such as servers, switches, UPS systems, and blade enclosures.
It is typically deployed in Eaton Rack PDU G4 environments, where secure power retention is critical for uptime-sensitive infrastructure.
Key Features
- 20A / 250V high-current rack power cord
- P-Lock IEC C20 connector prevents accidental unplugging
- 12 AWG heavy-duty conductor for IT-grade loads
- 3 ft optimized length for clean rack cable management
- Designed for PDU-to-device power distribution
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | P036-E03-ARD-6 |
| Product Type | PDU Power Cord (Locking) |
| Connector A | IEC 60320 C19 |
| Connector B | IEC 60320 C20 (P-Lock) |
| Voltage Rating | 250V AC |
| Current Rating | 20A |
| Wire Gauge | 12 AWG |
| Length | 3 ft (0.9 m) |
| Cable Type | SJT |
| Color | Red |
| Conductors | 3 |
| Application | Server, UPS, PDU, network equipment |
| Compatibility | Eaton Rack PDU G4 series |
