Detailed Specifications

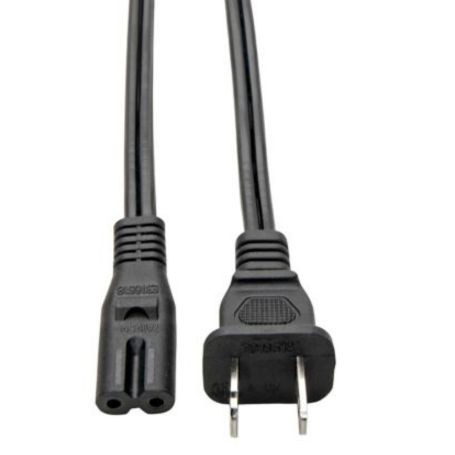

Eaton P012-006 Tripp Lite 6ft 2 Slot Non Polarized Replacement Power Cord
Overview

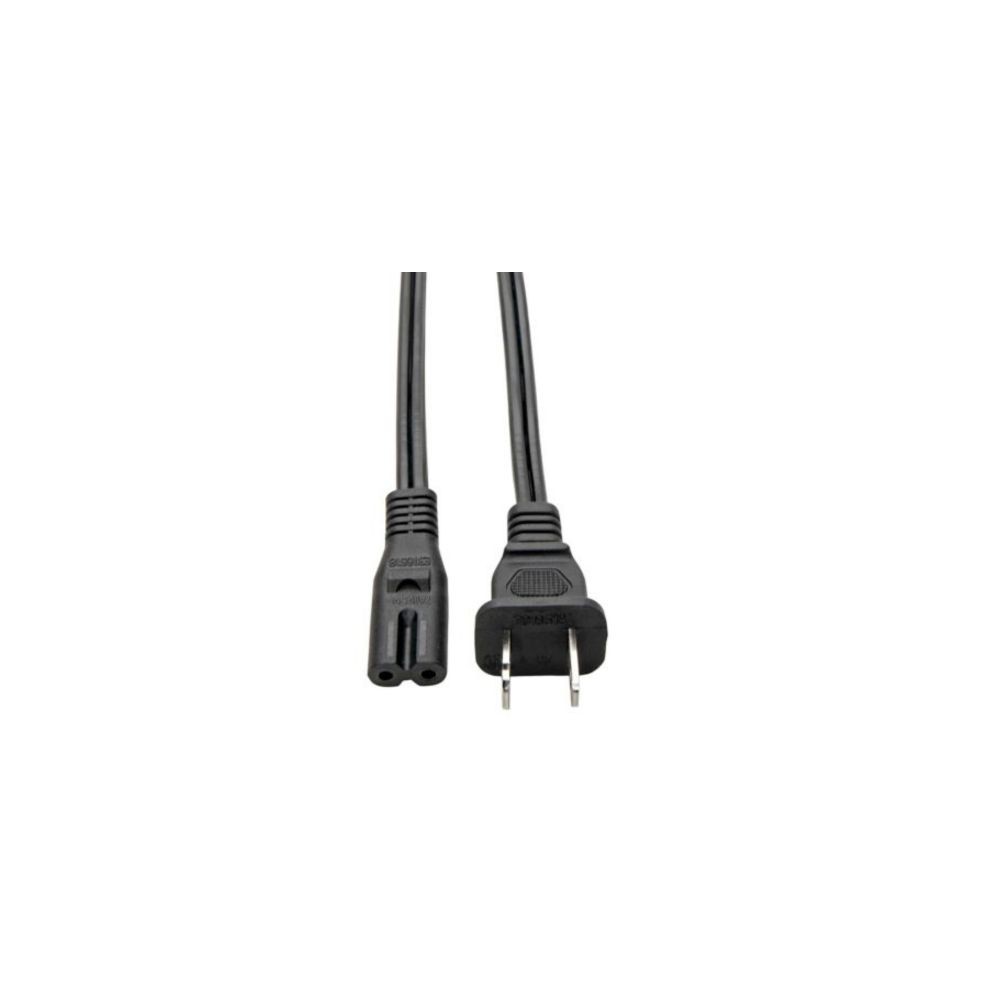

The Eaton Tripp Lite P012-006 is a 6-ft non-polarized laptop and notebook power cord with a NEMA 1-15P plug and IEC 60320 C7 connector. It is intended for laptops, DVRs, UPS systems, PDUs, and compatible home or office peripherals.
The cord uses 18 AWG, two-conductor construction and is rated at 10A and 125VAC. Its 6-ft length provides additional reach between compatible equipment and an AC outlet or power-distribution device.
The non-polarized two-slot design is intended for equipment using an IEC C7 inlet. It should not be used with equipment requiring a grounded three-conductor connection or a different connector configuration.
Key Features
- 6-ft length provides flexible equipment power placement
- NEMA 1-15P to C7 supports compatible two-prong devices
- 18 AWG construction supports standard power connections
- 10A, 125VAC rating supports compatible equipment
- Non-polarized design fits compatible C7 power inlets
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P012-006 |
| Product Type | Laptop Power Cord |
| Cable Length | 6 ft (1.83 m) |
| Current Rating | 10 A |
| Voltage Rating | 125 VAC |
| Wire Gauge | 18 AWG |
| Number of Conductors | 2 |
| Cord Type | SPT-2 |
| Connector A | NEMA 1-15P, Non-Polarized |
| Connector B | IEC 60320 C7, Non-Polarized |
| Outer Cable Diameter | 6.9 mm |
| Jacket Material | PVC |
| Jacket Color | Black |
| Cable Jacket Rating | VW-1 |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 10%-65% RH |
| Device Compatibility | Laptop, DVR, PDU, UPS |
| Certifications | UL, cUL, CSA, NOM |
