Detailed Specifications

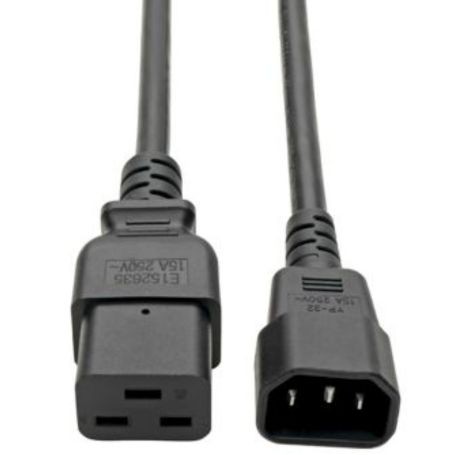

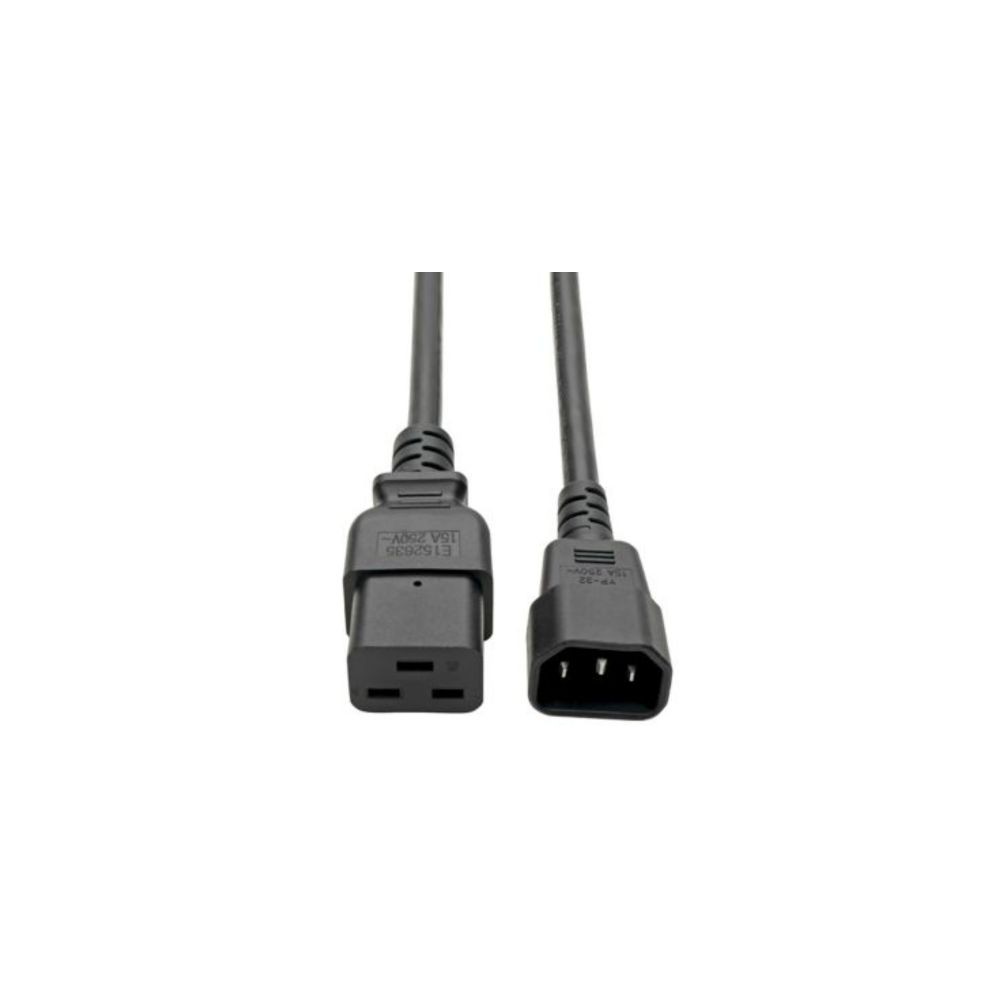

Eaton P047-006 Tripp Lite 6ft Power Cord C19 C14 Heavy Duty 15A 250V
Overview
The Eaton Tripp Lite P047-006 is a 6-ft heavy-duty power cord with IEC 60320 C14 and C19 connectors. It is designed for computers, servers, UPS systems, PDUs, and other compatible network equipment.
The cord uses 14 AWG, three-conductor SJT construction and is rated at 15A with 100-250VAC compatibility. Its 6-ft length provides practical reach for rack and equipment power connections.
The straight C14-to-C19 configuration is intended for compatible IEC power connections. It should not be used where equipment requires a different connector configuration or exceeds the verified electrical rating.
Key Features
- 15A, 100-250VAC rating supports compatible IT equipment
- 14 AWG conductors support higher-power rack connections
- C14-to-C19 configuration fits compatible server equipment
- 6-ft length provides practical rack power routing
- PVC jacket and VW-1 rating support durable deployments
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P047-006 |
| Product Type | Heavy-Duty Power Cord |
| Cable Length | 6 ft (1.83 m) |
| Voltage Rating | 100-250 VAC |
| Current Rating | 15 A |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Connector A | IEC 60320 C14 |
| Connector B | IEC 60320 C19 |
| Outer Cable Diameter | 9.3 mm |
| Jacket Material | PVC |
| Jacket Color | Black |
| Cable Jacket Rating | VW-1 |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 10%-65% RH |
| Device Compatibility | UPS, PDU, Server, Computer |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
