Detailed Specifications

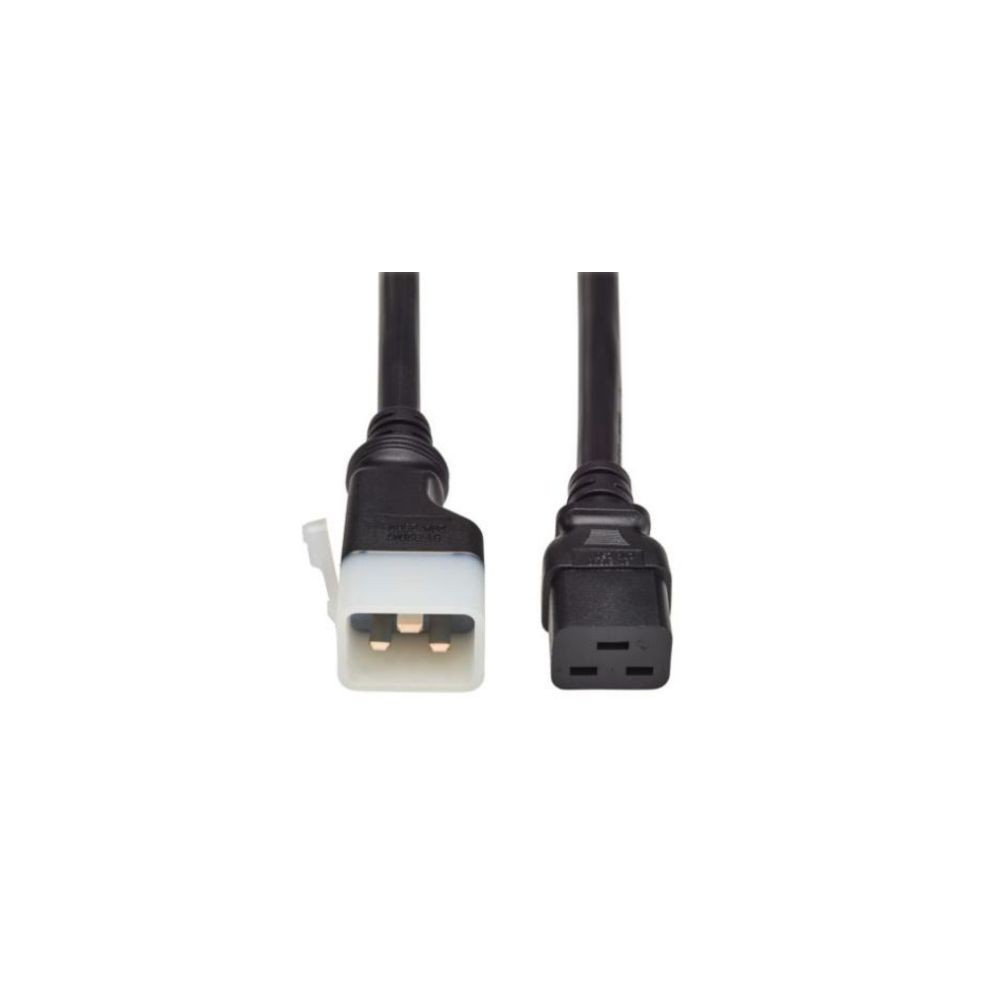

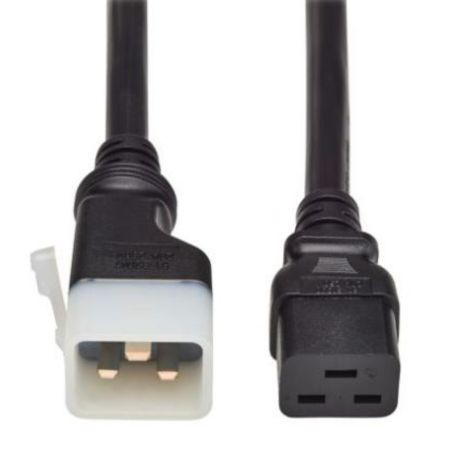

Eaton P036-EN4-6 Tripp Lite 4ft PDU Power Cord C19 P Lock Lite C20 20A 250V 12 AWG
Overview
The Eaton Tripp Lite P036-EN4-6 is a 4-ft power extension cord with IEC 60320 C19 and C20 connectors. It is intended for servers, blade servers, PDUs, UPS systems, network equipment, and other compatible IT hardware.
The cord uses 12 AWG, three-conductor construction and is rated at 20A and 250VAC. Its P-Lock Lite connector design is intended for installations where a more secure connection is required than a standard IEC connection.
The 4-ft length is suited to rack-level power distribution where connected equipment requires C19/C20 connections. It should not be used with equipment or power-distribution hardware requiring different connector types or electrical ratings.
Key Features
- 20A, 250VAC rating supports high-power IT equipment
- 12 AWG conductors support demanding rack power loads
- C19-to-C20 configuration supports compatible equipment
- 4-ft length helps manage short rack power connections
- P-Lock Lite helps secure compatible IEC connections
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P036-EN4-6 |
| Product Type | Power Extension Cord |
| Cable Length | 4 ft (1.2 m) |
| Voltage Rating | 250 VAC |
| Current Rating | 20 A |
| Wire Gauge | 12 AWG |
| Number of Conductors | 3 |
| Connector A | IEC 60320 C19 |
| Connector B | IEC 60320 C20 |
| Connection Type | P-Lock Lite |
| Jacket Color | Black |
| Device Compatibility | Blade Server, PDU, Server, Router, Network Device, UPS |
