Detailed Specifications

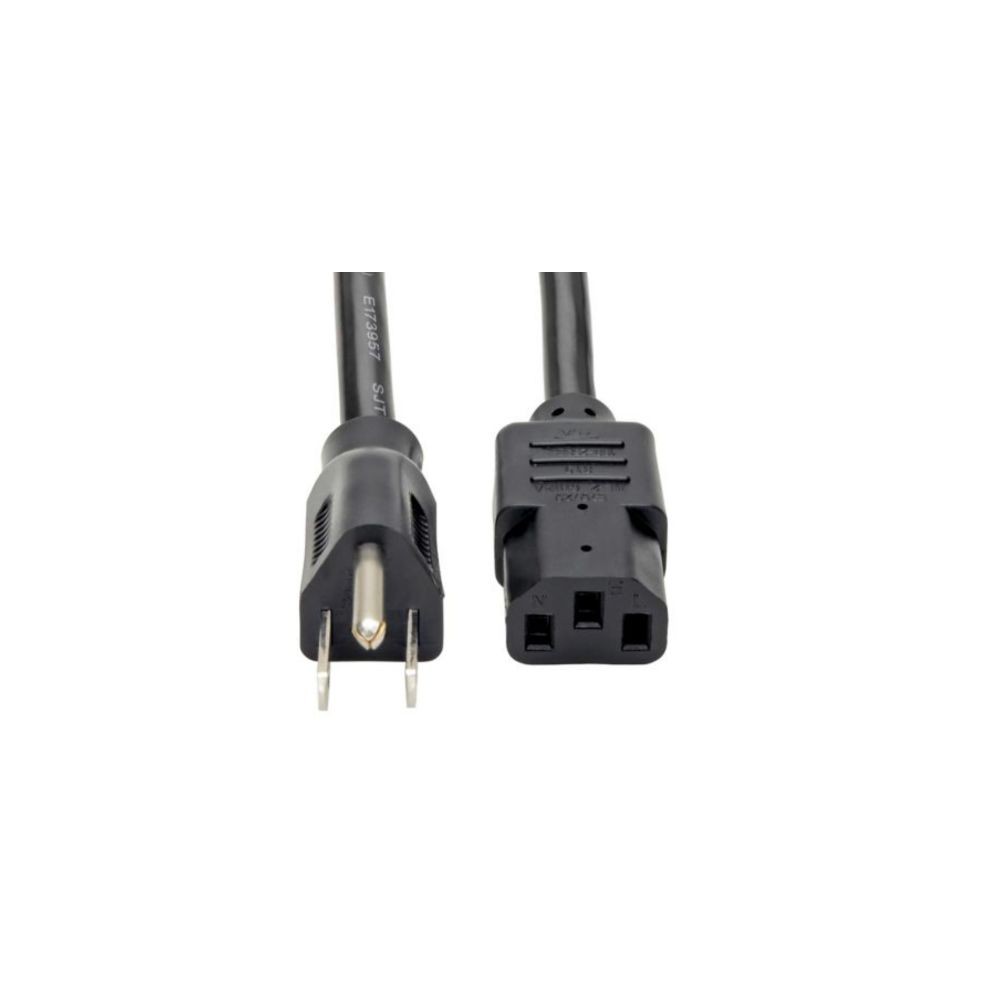

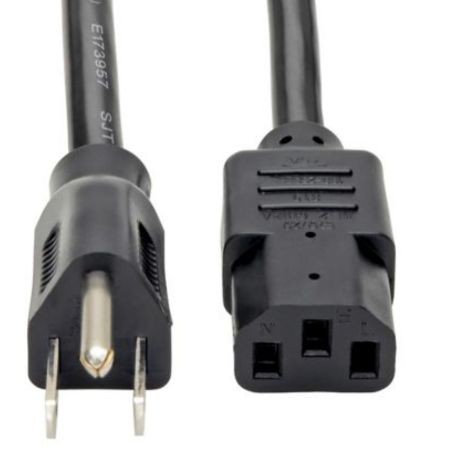

Eaton P007-003 Tripp Lite 3ft Computer Power Cord NEMA 5 15P C13 Heavy Duty
Overview
The Eaton Tripp Lite P007-003 is a 3-ft computer power cord with a NEMA 5-15P plug and IEC 60320 C13 connector. It is designed to connect compatible computers, servers, monitors, printers, UPS systems, and PDUs to North American AC power.
The cord uses 14 AWG, three-conductor SJT construction and is rated at 15A and 125VAC. The 3-ft length provides short power runs while helping reduce excess cable in rack and equipment installations.
It is suitable for equipment with an IEC C14 inlet and compatible North American power distribution. Do not use it where the equipment requires a different connector, voltage, or current rating.
Key Features
- 14 AWG construction supports higher-power IT equipment
- 15A, 125VAC rating suits compatible North American devices
- NEMA 5-15P to C13 configuration supports common IT equipment
- 3-ft length helps reduce excess cable in rack installations
- SJT construction provides a durable equipment power connection
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P007-003 |
| Product Type | Computer Power Cord |
| Cable Length | 3 ft (0.91 m) |
| Current Rating | 15 A |
| Voltage Rating | 125 VAC |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Connector A | NEMA 5-15P |
| Connector B | IEC 60320 C13 |
| Jacket Color | Black |
| Operating Temperature | -20°C to 60°C |
| Approved Countries | United States, Canada |
| Certifications | UL, cUL |
