Detailed Specifications

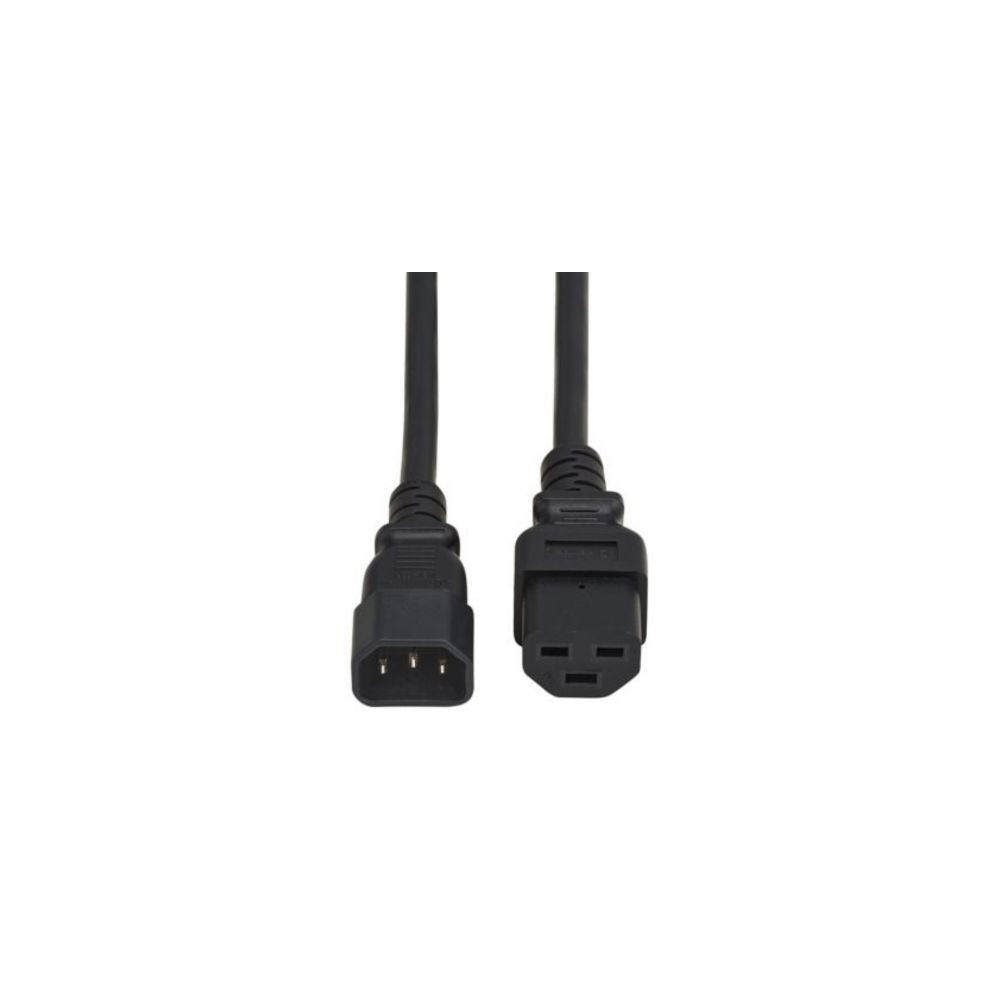

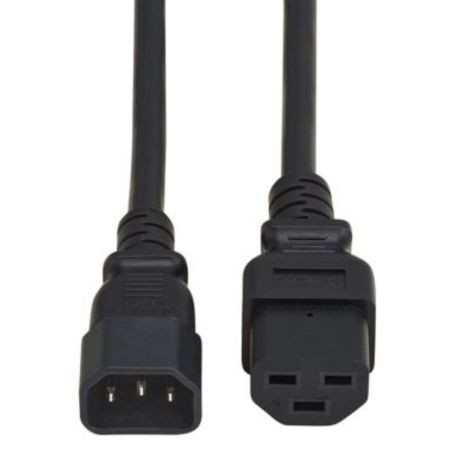

Eaton P037-005 Tripp Lite 5ft Power Cord C14 C21 Heavy Duty 15A 250V
Overview
The Eaton Tripp Lite P037-005 is a 5 ft heavy-duty power cord with IEC 60320 C14 male and C21 female connectors. It is intended for servers, switches, UPS systems, PDUs, blade servers, routers, and other high-powered IT equipment.
The cord uses 14 AWG conductors and is rated at 15A and 250V AC. Its C14-to-C21 configuration is designed for equipment using C22 inlets and compatible PDU or UPS outlets.
The 5 ft length supports rack installations where the connected equipment and power distribution equipment are separated within the enclosure. It is a North American power cord and should not be used where the equipment requires a different connector, voltage, or current rating.
Key Features
- 15A, 250V rating supports high-power IT equipment
- 14 AWG conductors provide heavy-duty power handling
- C14-to-C21 design connects compatible rack equipment
- 5 ft length supports flexible rack-level power routing
- 105°C rating suits high-temperature rack environments
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P037-005 |
| Product Type | Heavy-Duty Power Cord |
| Voltage Rating | 250V AC |
| Current Rating | 15A |
| Wire Gauge | 14 AWG |
| Cord Length | 5 ft (1.52 m) |
| First Connector | IEC 60320 C14 Male |
| Second Connector | IEC 60320 C21 Female |
| Number of Conductors | 3 |
| Jacket Material | PVC |
| Cord Type | SJT |
| Operating Temperature | -20°C to 105°C |
| Compatibility | Computer, Server, UPS, PDU, Switch, Rack, Network Device, Blade Server, Router, Network Switch |
| Standards | UL, cUL Listed, FT2, VW-1, WEEE |
