Detailed Specifications

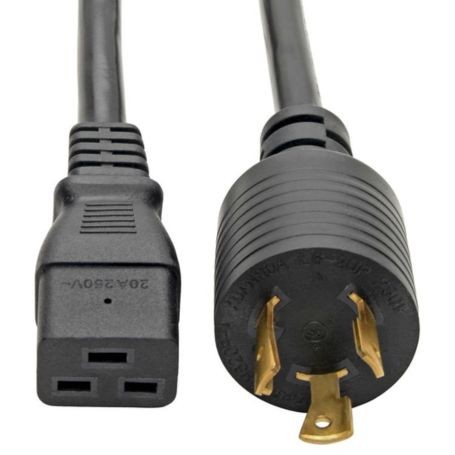

Eaton P040-010 Tripp Lite 10ft Power Cord C19 NEMA L6 20 Heavy Duty
Overview

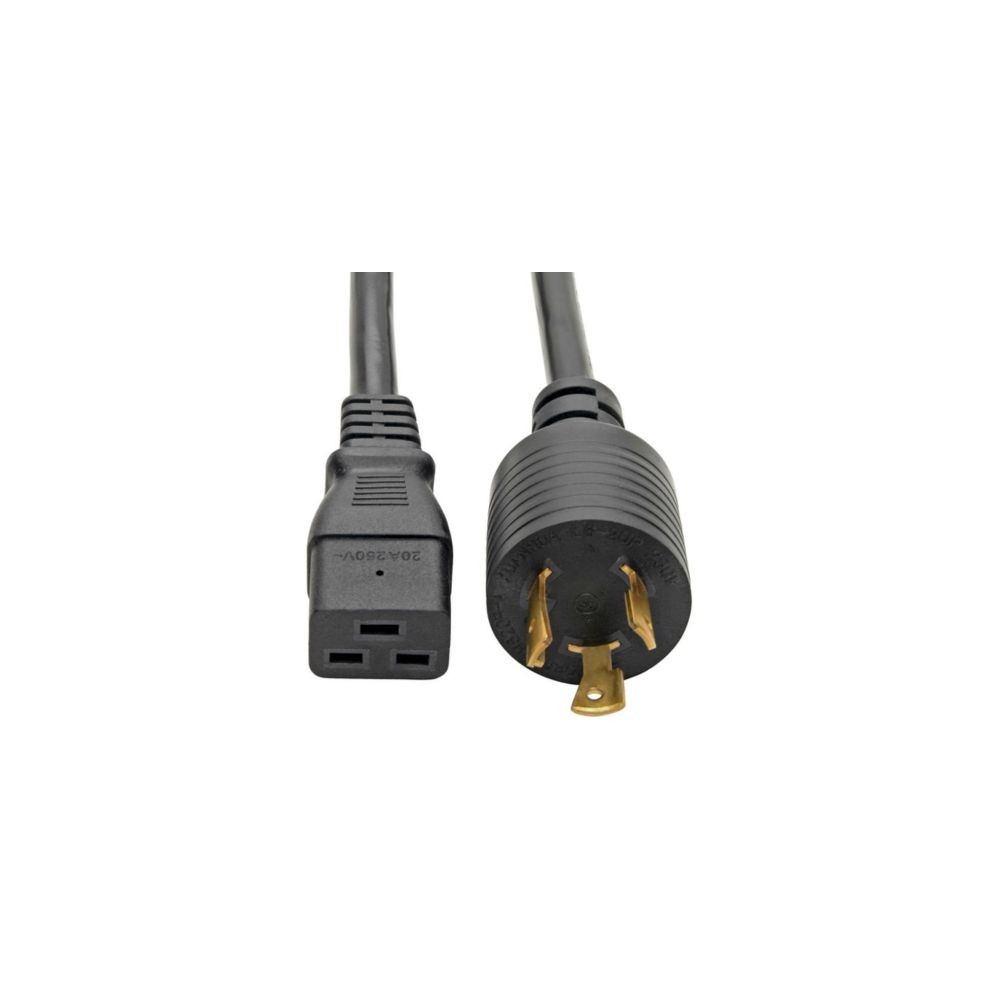

The Eaton Tripp Lite P040-010 is a heavy-duty AC power cord for connecting equipment with an IEC C19 inlet to a NEMA L6-20P locking power source. It is intended for servers, network switches, routers, PDUs and UPS systems requiring a 20A, 250V-class connection.
The cable uses three 12 AWG conductors in an SJT construction and is rated for 20A at up to 250VAC. Its 10 ft length supports rack layouts where the equipment and power distribution point are separated, while the L6-20P locking plug helps prevent accidental disconnection.
The P040-010 is appropriate where the equipment accepts an IEC C19 connection and the available source is a NEMA L6-20 receptacle. It should not be used with incompatible connector types or circuits that do not provide the required voltage/current capacity.
Key Features
- C19 to L6-20P connection supports high-power rack equipment
- 12 AWG conductors support the 20A electrical rating
- Locking L6-20P plug helps prevent accidental disconnects
- 10 ft length supports flexible rack power distribution
- UL and cUL listed for applicable North American deployments
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite series |
| Part Number | P040-010 |
| Product Type | Heavy-duty power cord |
| Connector A | NEMA L6-20P male |
| Connector B | IEC 320-C19 female |
| Current Rating | 20A |
| Voltage Rating | 250VAC |
| Cable Length | 10 ft (3.05m) |
| Wire Gauge | 12 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Outer Cable Diameter | 11mm |
| Cable Color | Black |
| Operating Temperature | -20°C to 60°C |
| Relative Humidity | 10%-65%, non-condensing |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
| Device Compatibility | Router, server, network switch, PDU, UPS |
| Warranty | Lifetime limited warranty |
