Detailed Specifications

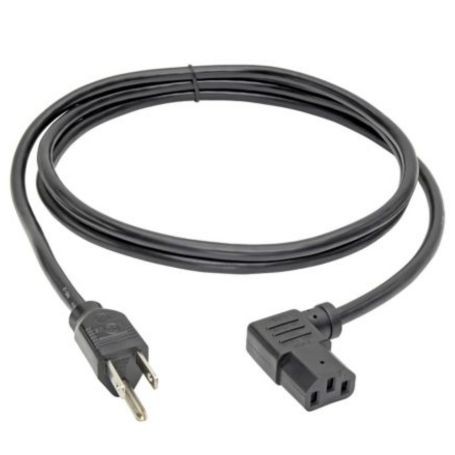

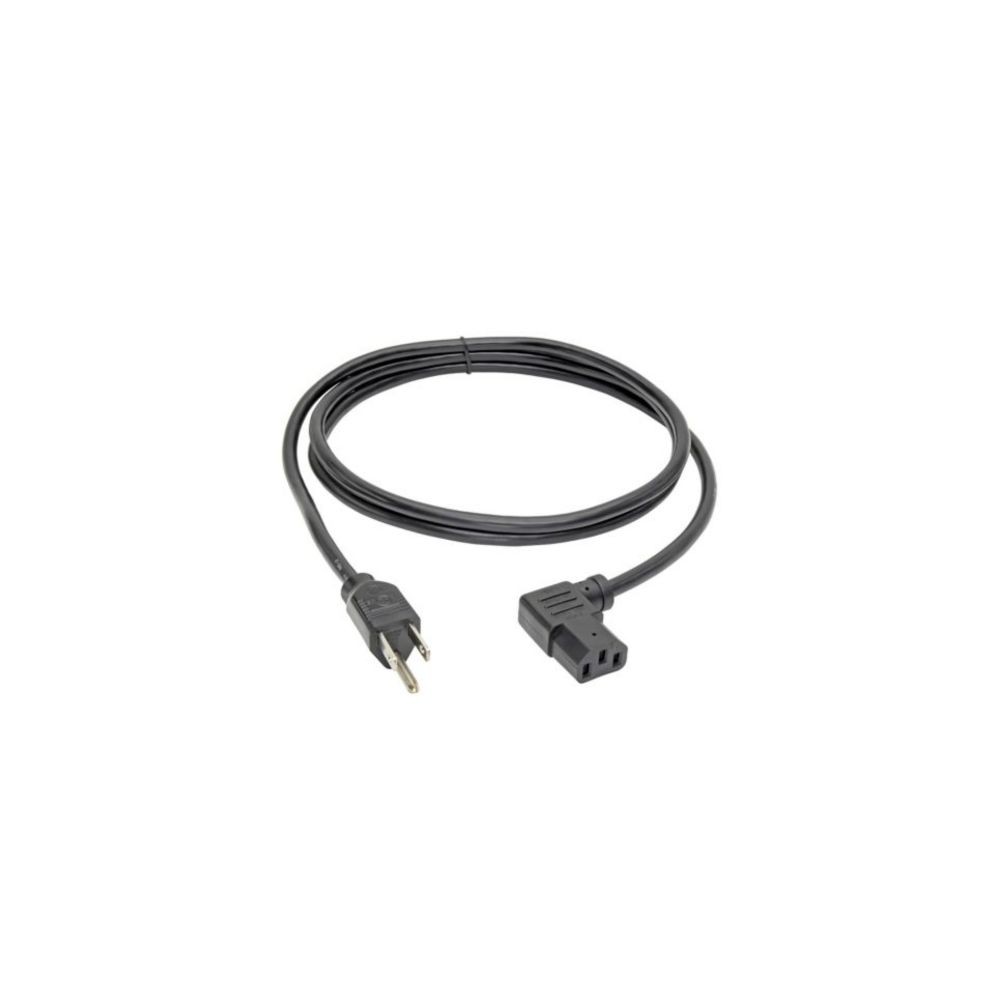

Eaton P006-006-13LA Tripp Lite 6ft Computer Power Cord NEMA 5 15P Left Angle C13
Overview
The Eaton P006-006-13LA is a computer power cord with a NEMA 5-15P plug and left-angle IEC 320-C13 connector. It is designed for computers, servers, monitors, printers, UPS systems, and PDUs using a compatible C14 equipment inlet.
The cord uses 18 AWG, three-conductor SJT construction and is rated for 10A at 125VAC. Its 6 ft length provides additional reach for equipment placement while the left-angle C13 connector helps route the cable in confined or hard-to-reach spaces.
The angled C13 configuration is particularly useful where rear equipment clearance is limited. It should not be used for loads above 10A or equipment requiring a different connector, voltage, or current rating.
Key Features
- Left-angle C13 connector improves routing in confined spaces
- 10A, 125VAC rating supports compatible equipment loads
- 18 AWG SJT construction provides flexible power connectivity
- 6 ft length provides additional equipment placement flexibility
- NEMA 5-15P supports standard AC outlet connections
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | P006-006-13LA |
| Product Type | Computer power cord |
| Connector A | NEMA 5-15P |
| Connector B | IEC 320-C13 left-angle |
| Current Rating | 10A |
| Voltage Rating | 125VAC |
| Cable Length | 6 ft (1.83 m) |
| Wire Gauge | 18 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Outer Cable Diameter | 7.8 mm |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Color | Black |
| Connector Color | Black |
| Connector Style | Left-angle |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 10%-65% RH |
| Device Compatibility | UPS, Computer, Monitor/HDTV, PDU, Printer, Server |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
