Detailed Specifications

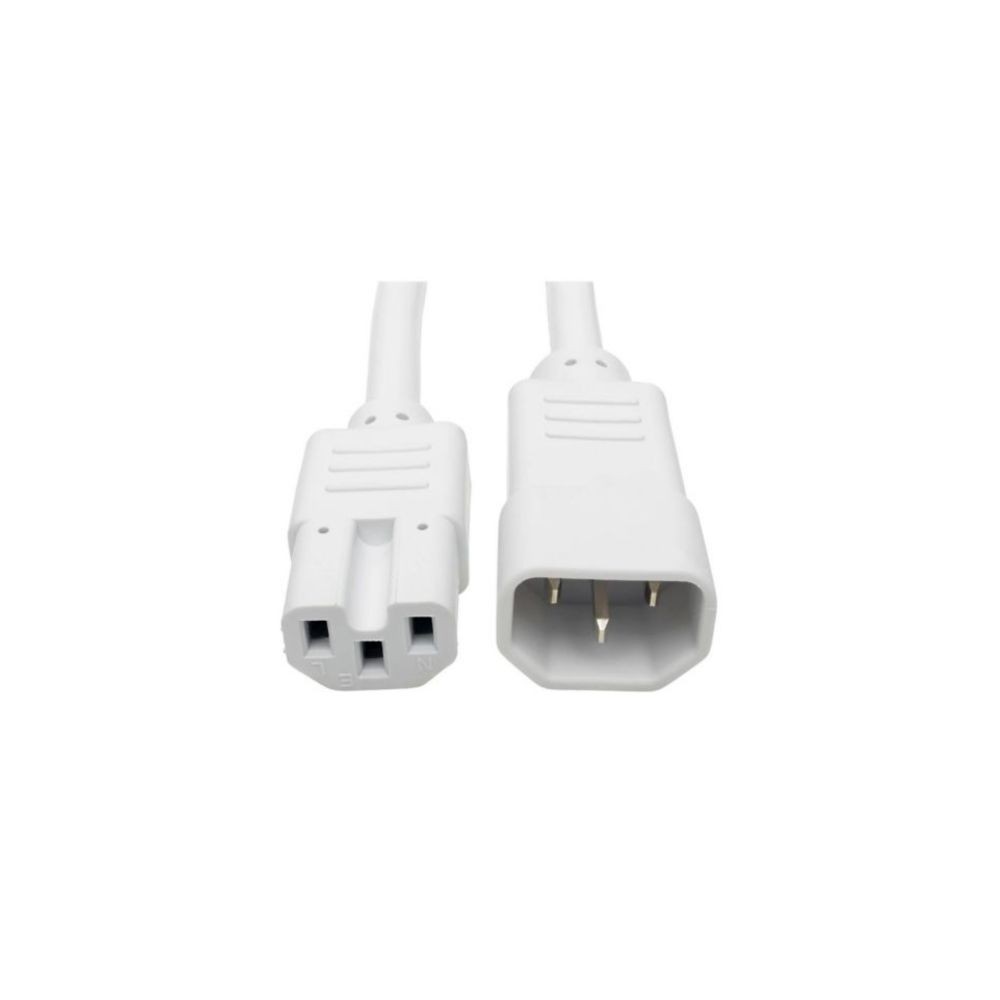

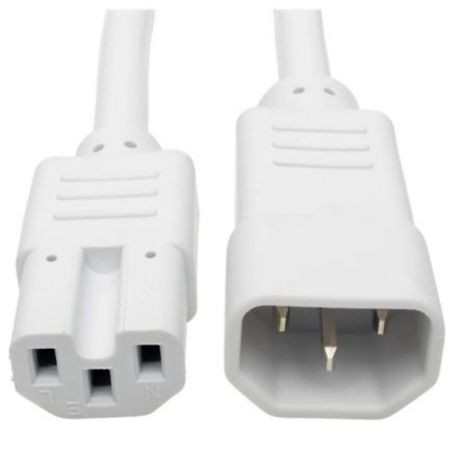

Eaton P018-006-AWH Tripp Lite 6ft Power Cord C14 C15 Heavy Duty 15A 250V
Overview
The Eaton Tripp Lite P018-006-AWH is a 6 ft heavy-duty computer power cord with an IEC 60320 C14 male connector and IEC 60320 C15 female connector. It is designed to connect compatible servers, network equipment, storage systems, PDUs, and UPS systems.
It is rated 15A at 250VAC and uses 14 AWG, 3-conductor SJT cable with a white jacket and molded white connectors. The C15 connector is suitable for compatible equipment requiring the higher-temperature C15 interface.
For rack deployment, the 6 ft length provides routing flexibility between PDUs or UPS systems and connected equipment. It should not be used where the equipment requires a different IEC connector or electrical rating.
Key Features
- 15A, 250VAC rating supports compatible IT equipment
- C14-to-C15 connectors support compatible rack hardware
- 14 AWG SJT cable supports higher-power equipment loads
- White jacket improves cable identification in dense racks
- 6 ft length provides flexible PDU-to-equipment routing
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P018-006-AWH |
| Product Type | Heavy-Duty Power Cord |
| Current Rating | 15 A |
| Voltage Rating | 250 VAC |
| Cable Length | 6 ft (1.83 m) |
| Wire Gauge | 14 AWG |
| Number of Conductors | 3 |
| Cable Type | SJT |
| Input Connector | IEC 60320 C14 Male |
| Output Connector | IEC 60320 C15 Female |
| Cable Color | White |
| Cable Jacket | Flexible SJT |
| Device Compatibility | PDU, UPS, Network Switch |
| Certifications | UL, cUL |
| Compliance | RoHS |
