Detailed Specifications

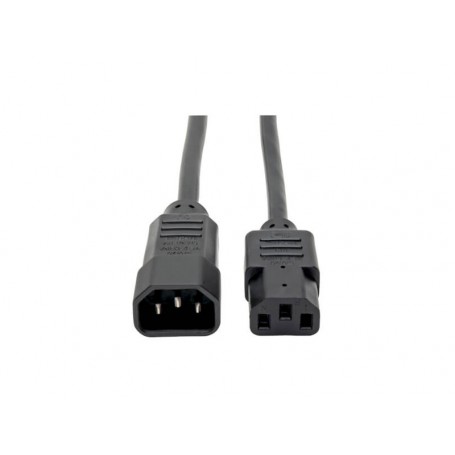

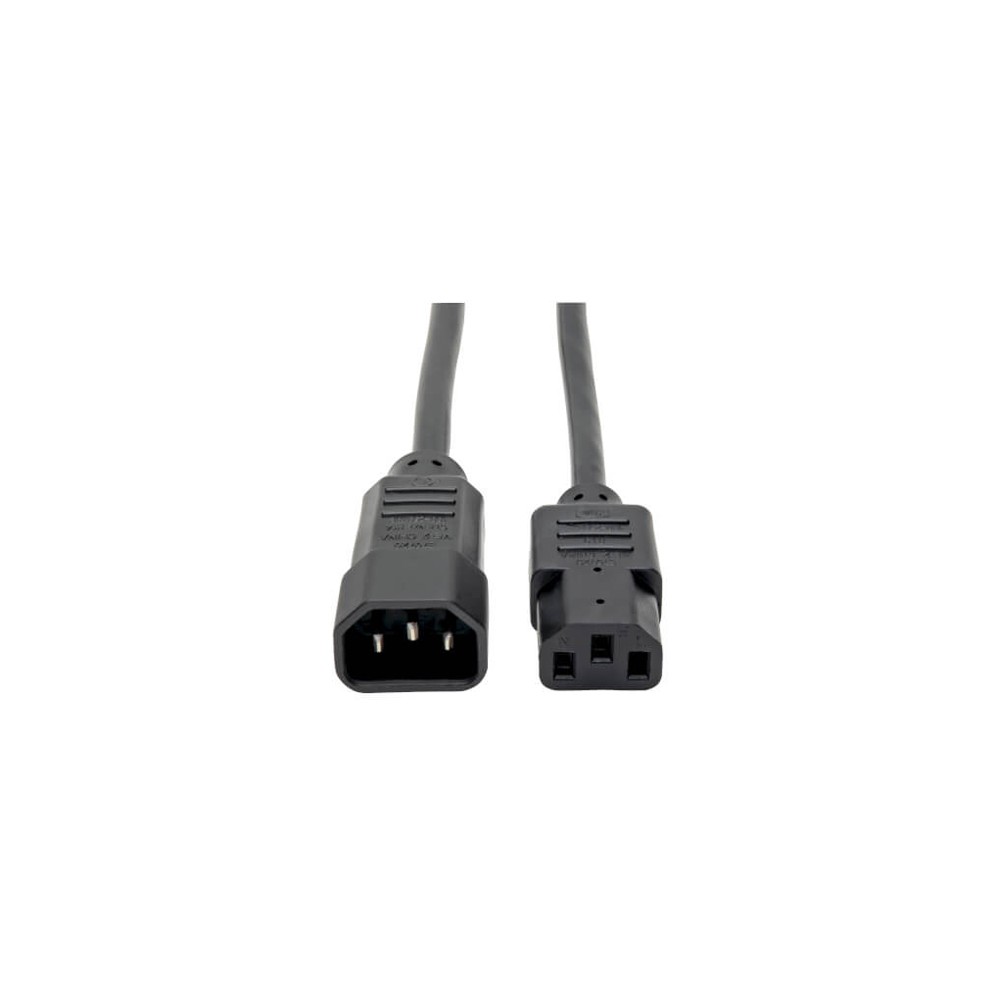

Eaton P004-001 1 ft C14 to C13 PDU Power Cable Compatible Tripp Lite
Overview :
The Eaton P004-001 is a 1-foot (0.31 m) PDU-style AC power cable with an IEC 60320 C14 male connector and IEC 60320 C13 female connector. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton identifies it as an Eaton Tripp Lite series PDU power cord.
The cable is designed to connect computers, servers, printers and other equipment with C14 power connections directly to C13 outlets on a PDU or UPS, or to extend an existing C14-to-C13 power connection by 1 foot. It is intended for data-center, server-room, workstation and rack power-distribution applications.
The P004-001 uses 18 AWG, 3-conductor SJT cable and is rated for 10A at 100-250 VAC. Its black PVC jacket and UL-listed construction provide a standard high-voltage connection for compatible rack and IT equipment.
Key Features :
- 1 ft. (0.31 m) power cable
- IEC 60320 C14 male to C13 female
- 10A current rating
- 100-250 VAC voltage rating
- 18 AWG construction
- 3 conductors
- SJT cable type
- Black PVC jacket
- VW-1 jacket rating
- Designed for PDU and UPS connections
- Suitable for computers, servers and peripherals
- UL Listed, cUL Listed and CSA certified
- RoHS and REACH compliant
- Lifetime limited warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | P004-001 |
| Product Type | PDU power cord |
| Cable Length | 1 ft. (0.31 m) |
| Connector A | IEC 60320 C14 Male |
| Connector B | IEC 60320 C13 Female |
| Current Rating | 10A |
| Voltage Rating | 100-250 VAC |
| Wire Gauge | 18 AWG |
| Number of Conductors | 3 |
| Cable Type | SJT |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Jacket Rating | VW-1 |
| Shielding | Unshielded |
| Device Compatibility | Computer, printer, server, monitor/HDTV, PDU, UPS |
| Compliance | RoHS, REACH |
| Certifications | UL Listed, cUL Listed, CSA |
| UPC | 037332180414 |
