Detailed Specifications
Eaton P004-002-ABL PDU Power Cord C13 to C14 Compatible Brand Tripp Lite
Overview :

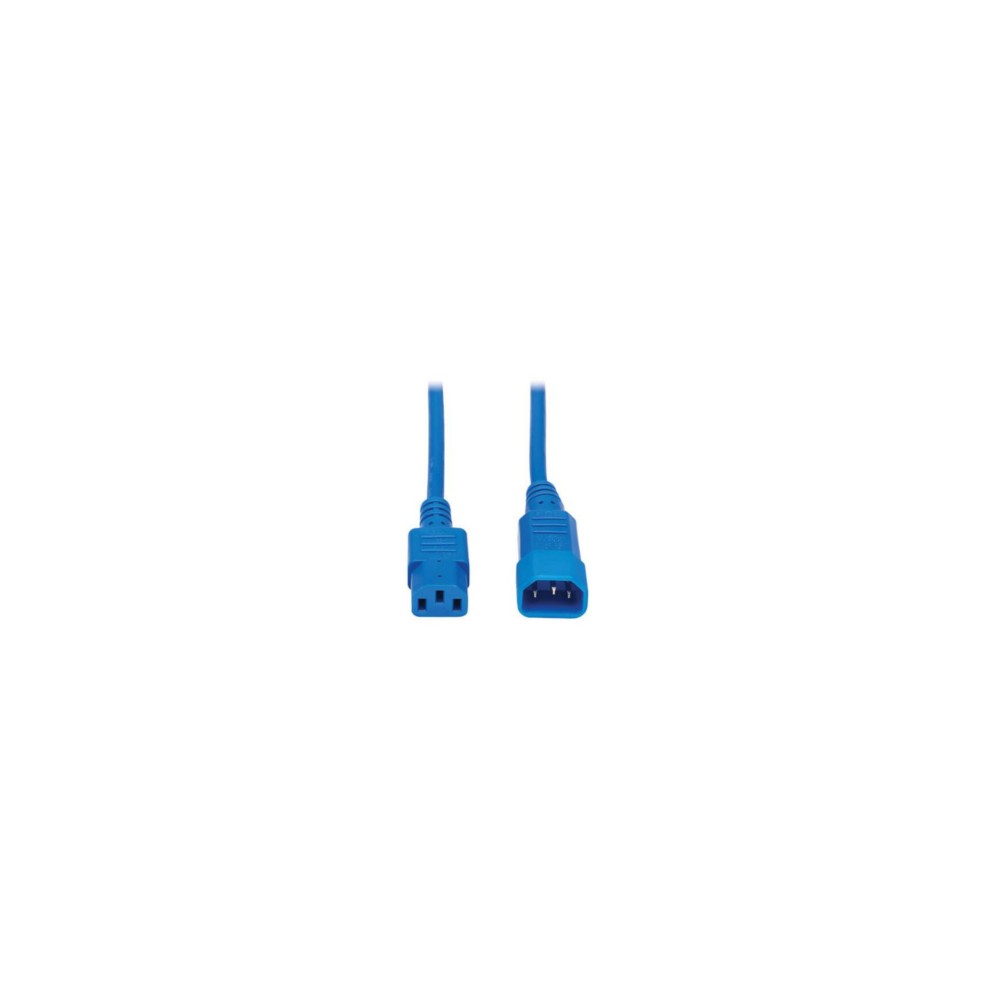

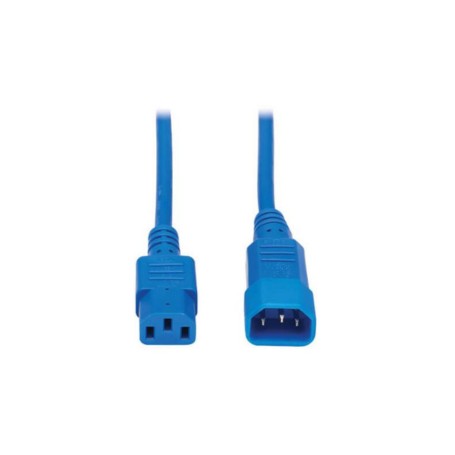

The Eaton P004-002-ABL is a standard PDU power extension cord with a C14 male connector and C13 female connector. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton identifies the product as an Eaton Tripp Lite series PDU power cord.
The cable measures 2 ft. (0.61 m) and uses 18 AWG, 3-conductor SJT construction. It is rated for 100-250 VAC and 10A and is designed to connect computers, servers, printers, monitors and other compatible equipment to UPS systems or PDUs.
The cable features a blue SJT jacket and molded blue connectors, allowing quick identification in crowded racks and workstations. It can also extend an existing C13/C14 power connection by 2 ft.
Key Features :
- 2-ft. (0.61 m) PDU power extension cord
- C14 male to C13 female configuration
- 100-250 VAC voltage rating
- 10A current rating
- 18 AWG, 3-conductor SJT cable
- Blue cable jacket and molded connectors
- Designed for UPS and PDU applications
- Suitable for computers, servers, printers and monitors
- Flexible cable construction for easy routing
- UL Listed and cUL Listed
- RoHS and REACH compliant
- Lifetime limited warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | P004-002-ABL |
| Product Type | PDU Power Cord |
| Cable Length | 2 ft. (0.61 m) |
| Connector A | IEC-320-C14 Male |
| Connector B | IEC-320-C13 Female |
| Connector Configuration | Male-to-Female |
| Voltage Rating | 100-250 VAC |
| Current Rating | 10A |
| Wire Gauge | 18 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Outer Cable Diameter | 7.8 mm |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Blue |
| Connector Color | Blue |
| Connector Style | Straight |
| Compatible Equipment | UPS, PDU, Server, Printer, Computer, Monitor/HDTV |
| Cable Jacket Rating | VW-1 |
| Compliance | RoHS, REACH |
| Certifications | UL Listed, cUL Listed, CSA Certified |
