Detailed Specifications

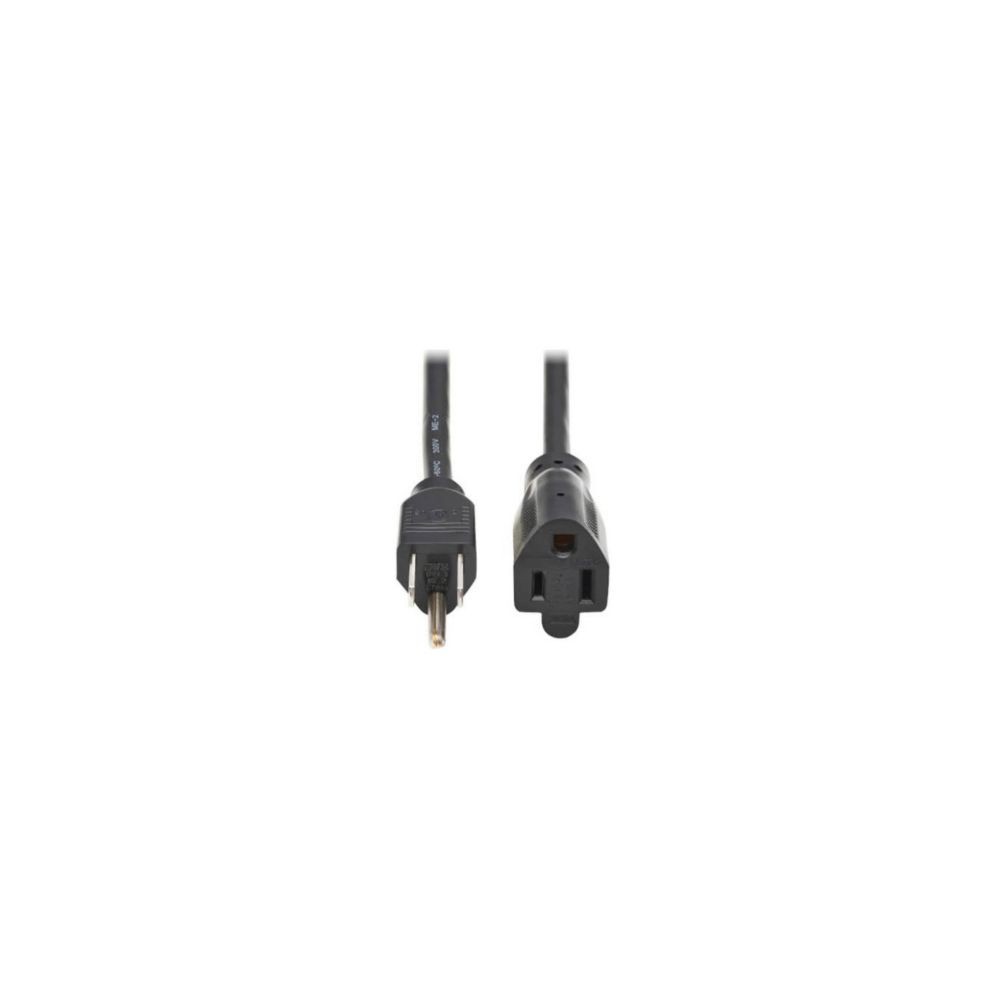

Eaton P022-010-13A - Tripp Lite Series Power Extension Cord
Overview
The Eaton P022-010-13A is a Tripp Lite Series AC power extension cord with a NEMA 5-15P male plug and NEMA 5-15R female receptacle. It provides an additional 10 ft (3.05 m) of reach for computers, monitors, printers, servers, UPS systems, PDUs, and other compatible equipment.
The cord uses 16 AWG, 3-conductor SJT cable and is rated for 125 VAC and 13 A. Eaton specifies an 8.3 mm outer cable diameter, black PVC jacket, and FT2 jacket rating.
It is intended for North American office, workstation, small server-room, and data-center installations where a standard 5-15P-to-5-15R extension cord is required. It is not a substitute for a higher-current or heavier-gauge extension cord where the connected load exceeds its 13 A rating.
Key Features
- NEMA 5-15P male to NEMA 5-15R female configuration.
- 10-ft (3.05 m) extension length for flexible equipment placement.
- 16 AWG, 3-conductor SJT cable rated for 13 A at 125 VAC.
- 8.3 mm outer cable diameter with black PVC jacket.
- UL-listed design suitable for computers, servers, UPS systems, PDUs, monitors, and printers.
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Series | Tripp Lite |
| Part Number | P022-010-13A |
| Product Type | Power Extension Cord |
| Connector A | NEMA 5-15P Male |
| Connector B | NEMA 5-15R Female |
| Cable Length | 10 ft (3.05 m) |
| Voltage Rating | 125 VAC |
| Current Rating | 13 A |
| Wire Gauge | 16 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Outer Cable Diameter | 8.3 mm |
| Jacket Material | PVC |
| Jacket Color | Black |
| Jacket Rating | FT2 |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS, REACH, CE, FCC |
| Compatible Equipment | Computer, Monitor/HDTV, Printer, Server, UPS, PDU |
