Detailed Specifications

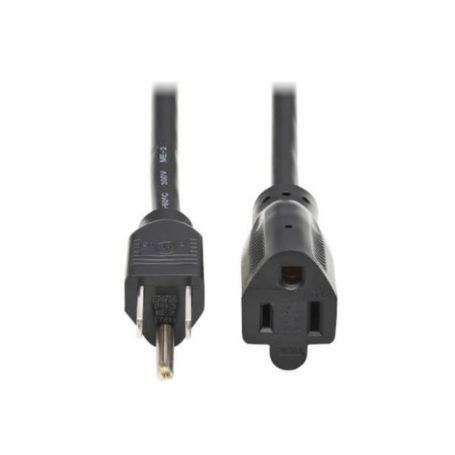

Eaton P022-012-13A - Tripp Lite Series Power Extension Cord
Overview
The Eaton P022-012-13A is a Tripp Lite Series power extension cord with a NEMA 5-15P male plug and NEMA 5-15R female receptacle. It extends an existing AC power connection by 12 ft (3.7 m) and is designed for computers, monitors, printers, servers, UPS systems, PDUs, and similar equipment.
The cord uses 16 AWG, 3-conductor SJT cable and is rated for 125 VAC and 13 A. Its black PVC jacket has an 8.3 mm outer diameter and a FT2 jacket rating.
It is intended for North American home, office, small server-room, and data-center applications where a standard 5-15P-to-5-15R extension is required.
Key Features
- NEMA 5-15P male plug to NEMA 5-15R female receptacle.
- 12-ft (3.7 m) extension length for flexible equipment placement.
- 16 AWG, 3-conductor SJT cable rated at 13 A and 125 VAC.
- 8.3 mm outer cable diameter with black PVC jacket.
- UL listed and suitable for computers, monitors, servers, UPS systems, and PDUs.
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Series | Tripp Lite |
| Part Number | P022-012-13A |
| Product Type | Power Extension Cord |
| Connector A | NEMA 5-15P Male |
| Connector B | NEMA 5-15R Female |
| Cable Length | 12 ft (3.7 m) |
| Voltage Rating | 125 VAC |
| Current Rating | 13 A |
| Wire Gauge | 16 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Outer Cable Diameter | 8.3 mm |
| Jacket Material | PVC |
| Jacket Color | Black |
| Jacket Rating | FT2 |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS, REACH, CE, FCC |
| Compatible Equipment | Computer, Monitor/HDTV, Printer, Server, UPS, PDU |
