Detailed Specifications

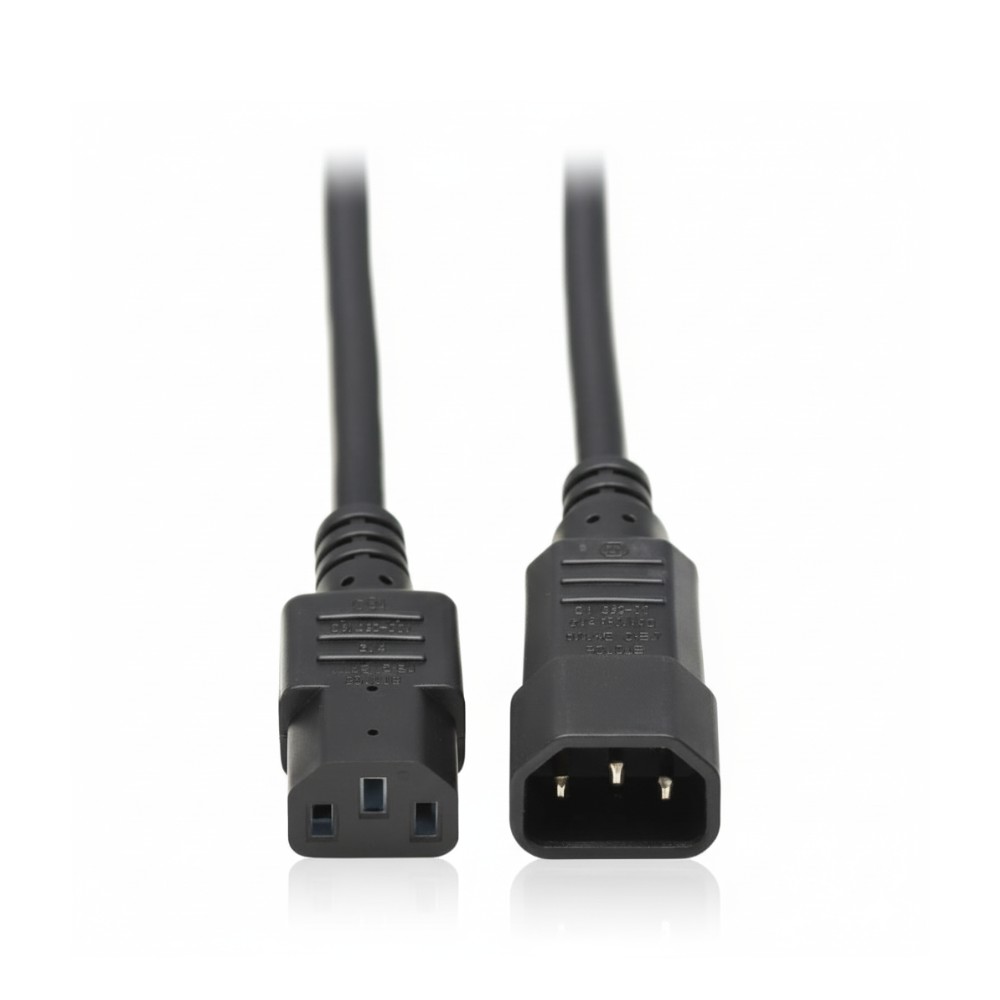

Eaton Tripp Lite P004-005-13A - Power Extension Cord
Overview :
The P004-005-13A is a 5-foot (1.52 m) power extension cord designed for IT infrastructure use, allowing connectivity between an IEC-320-C14 male plug and an IEC-320-C13 female receptacle. It is rated at 13 A and 100-250 V AC, supporting typical server, PDU or UPS connections in rack or cabinet deployments. This cord fits branch-to-data-centre or edge-rack installations, enabling extension of existing power leads or direct connection of devices with C14 inlets. It integrates seamlessly in standard rack environments and works with equipment managed by industry-standard power systems.
Key Features :
13 A current rating at 100-250 V automotive-grade use
16 AWG SJT cable construction for durability and flexibility
IEC-320-C14 male to IEC-320-C13 female termination
5 ft (1.52 m) length for flexible placement and reach
Specifications :
| Specification | Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P004-005-13A |
| Product Type | AC Power Extension Cord |
| Current Rating (Amps) | 13 A |
| Voltage Rating | 100-250 V AC |
| Cable Length | 5 ft (1.52 m) |
| Wire Gauge | 16 AWG |
| Connector A | IEC-320-C14 (male) |
| Connector B | IEC-320-C13 (female) |
| Cable Jacket Material | PVC |
| Jacket Rating | FT2 |
| Cable Outer Diameter | 9 mm |
| Operating Temperature Range | -20 °C to +60 °C (-4 °F to +140 °F) |
| Standards / Approvals | CSA, cUL, UL listed |
| Compliance | RoHS, REACH |
