APC AP8704S‑NA – Locking IEC C13–C14 1.2 m Power Cord Kit

Overview :

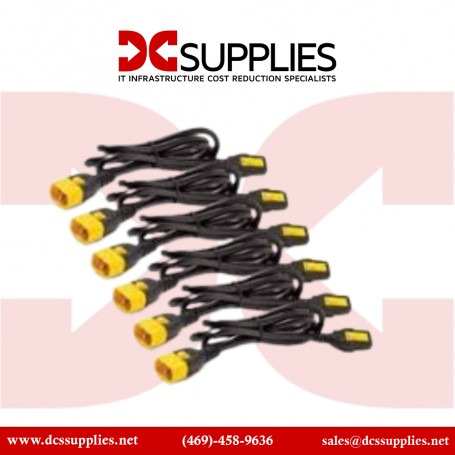

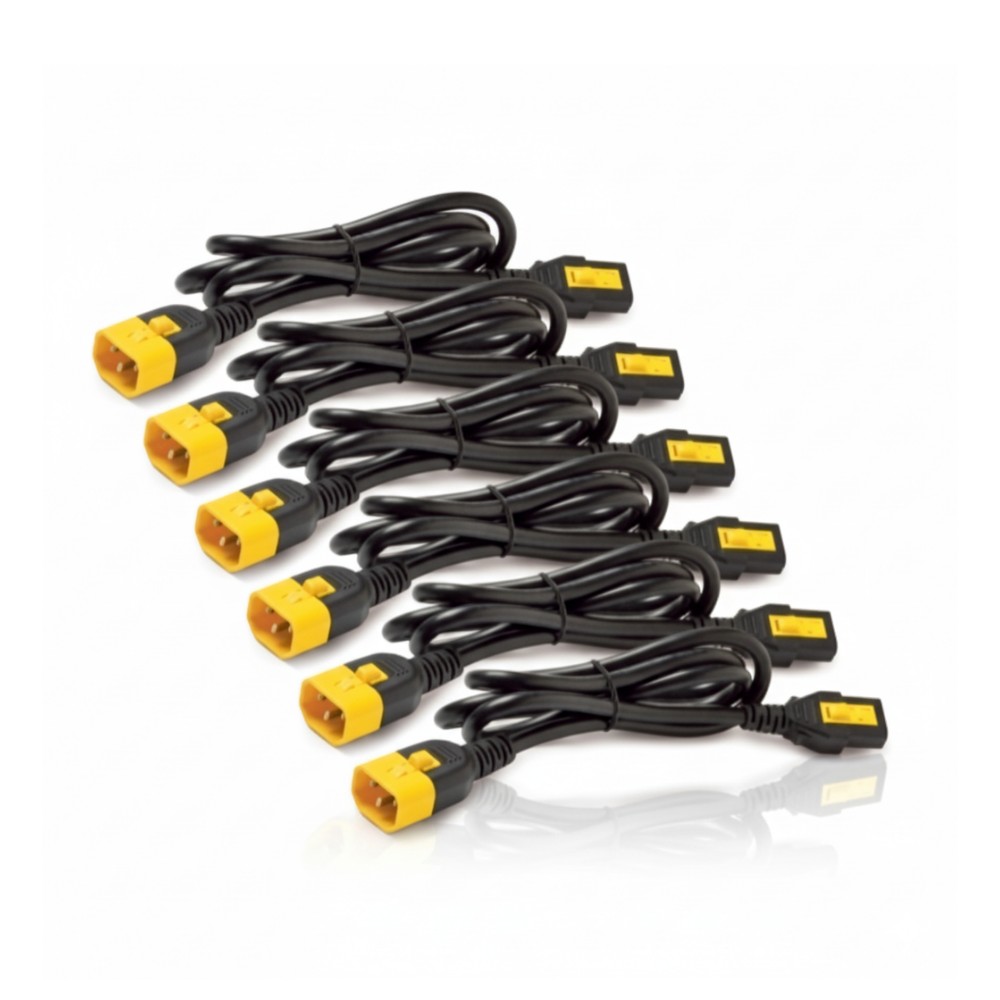

The APC AP8704S‑NA is a rack power cord kit containing six locking IEC jumper cables used to connect rack‑mount power distribution units (PDUs) to IT equipment with IEC‑rated power inlets. It is selected by data center infrastructure engineers, network technicians, and rack installers where secured power retention reduces unplanned power loss due to cable pull‑outs or movement.

Each cord terminates in an IEC 60320 C14 male plug on the PDU side and an IEC 60320 C13 female connector on the equipment side, conforming to IEC power cabling standards for typical rack‑mount servers, switches, storage, and similar devices. The integrated locking mechanism engages only with compatible locking receptacles to anchor the cable under vibration or maintenance activity.

With a nominal length of 1.2 m (approximately 4 ft), the AP8704S‑NA cords offer reach beyond immediate adjacent connections while avoiding excessive slack that can impede airflow or complicate horizontal cable management in 19‑inch server racks and telecom IDF/MDF cabinets.

Ideal deployment contexts include enterprise racks, colocation facilities, and edge compute cabinets that use standardized IEC power ecosystems and where consistent cord layouts simplify maintenance and reduce human error. This kit is not intended as a replacement for building mains feeds or for equipment lacking IEC receptacles, and it should not be used where locking receptacles are unavailable, as the retention feature cannot engage.

The AP8704S‑NA serves a specific purpose in rack infrastructure: ensuring secure, manageable power interconnects between PDUs and devices without introducing non‑standard cabling practices.

Key Features :

• Six IEC 60320 C14 to C13 locking jumpers
• 1.2 m (4 ft) length for horizontal rack routing
• 10 A current rating for typical rack gear
• Locking connectors reduce pull‑out risk
• Black jacket supports standard rack color schemes

Specifications :
