Detailed Specifications

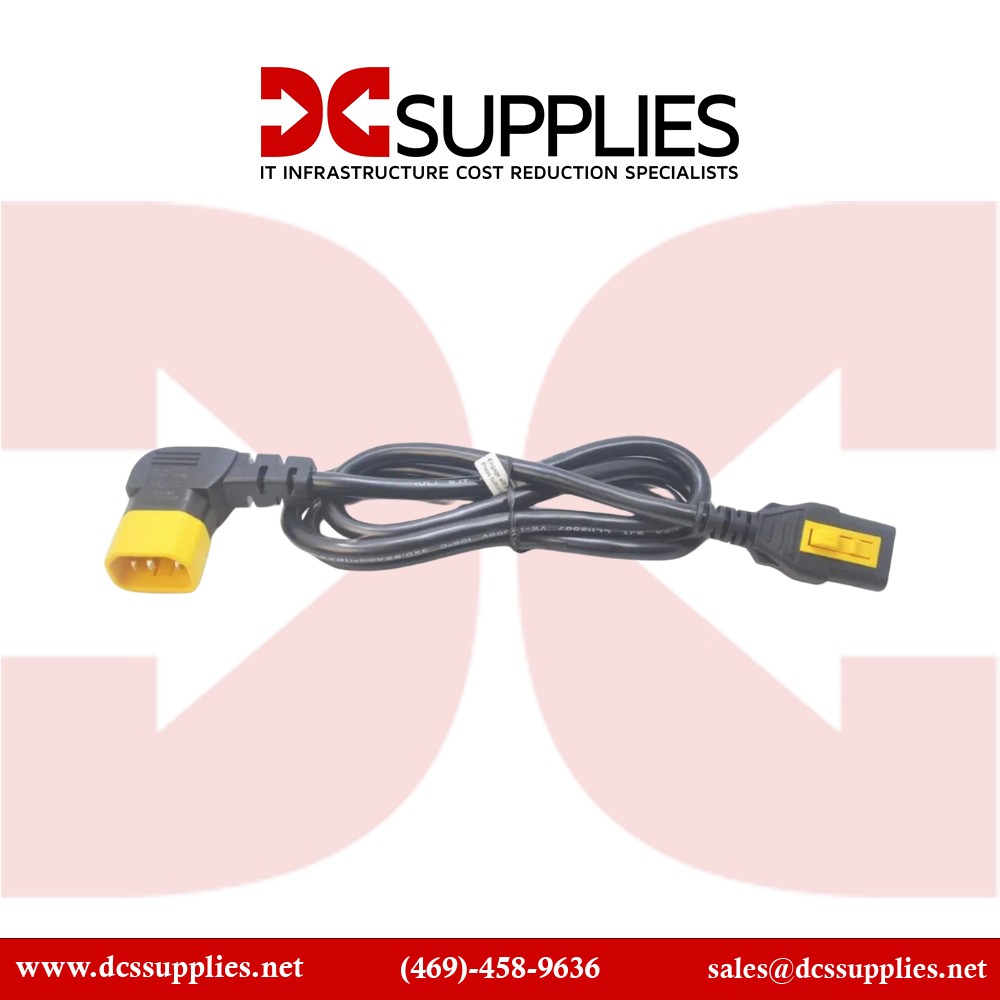

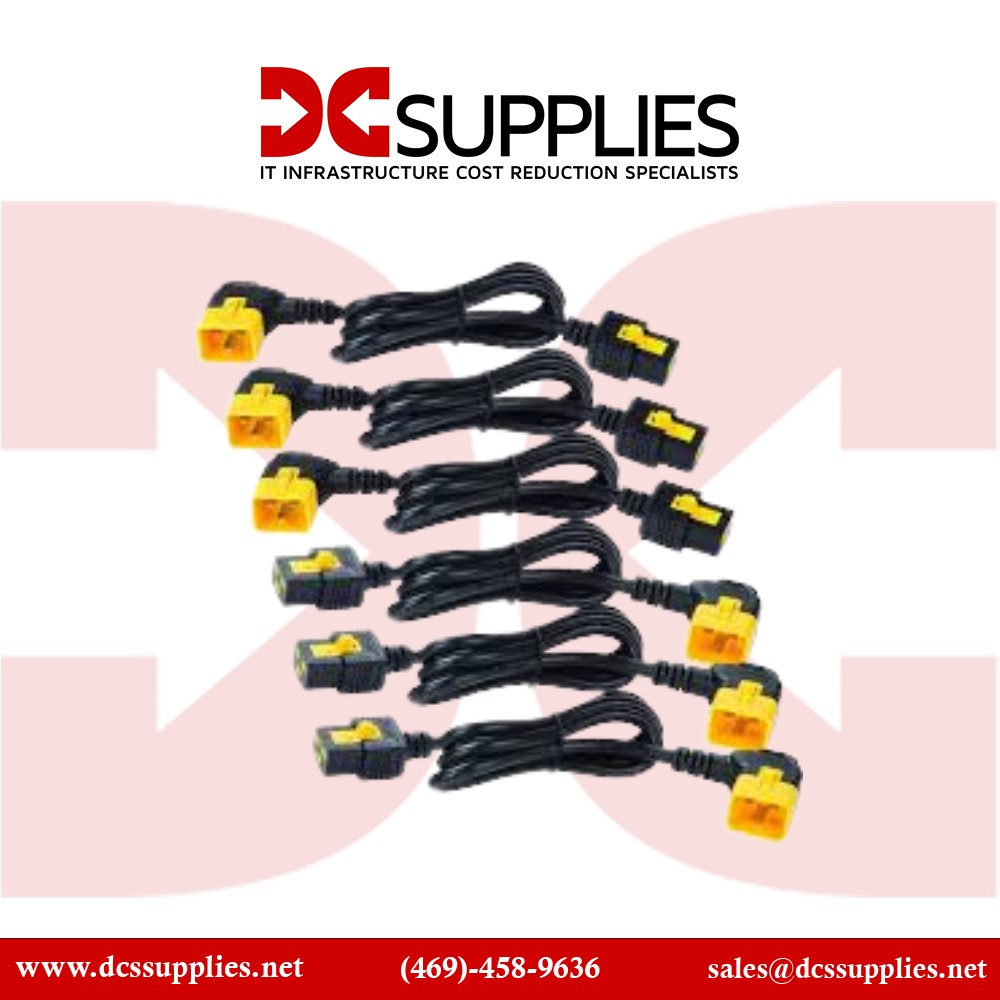

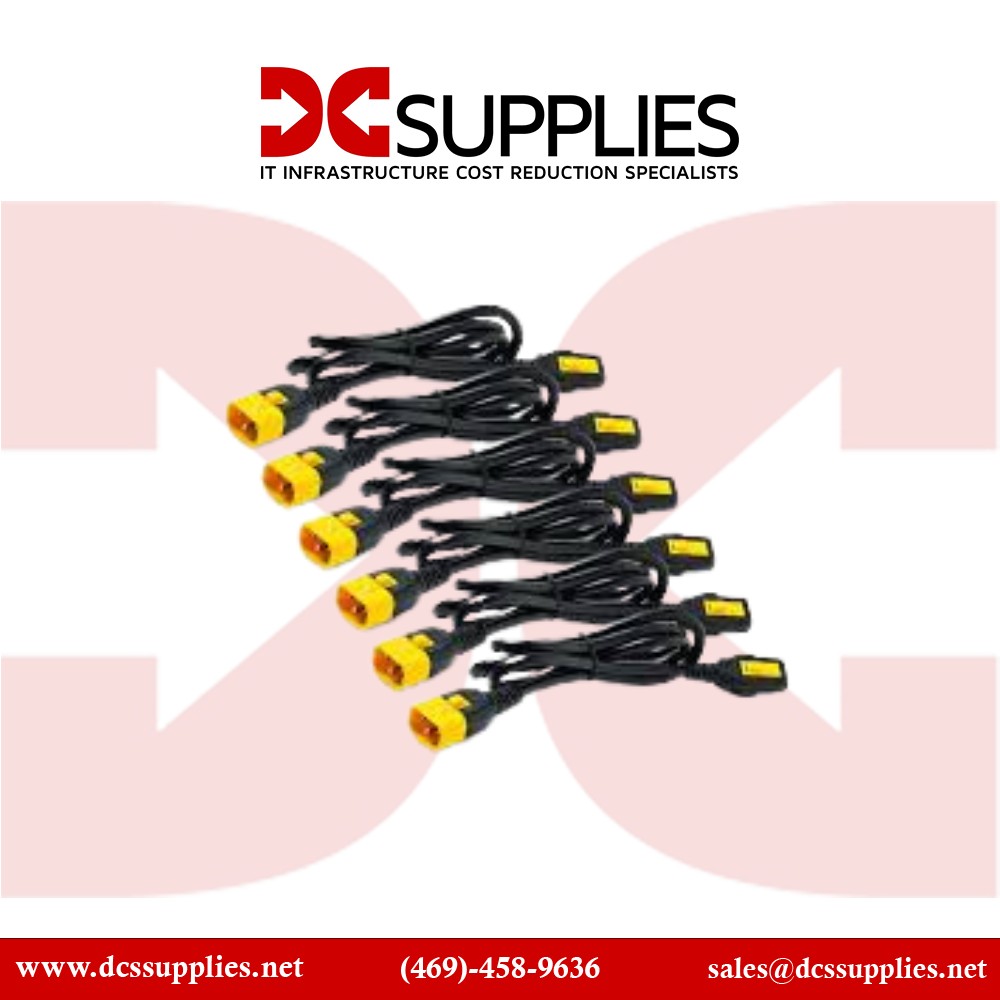

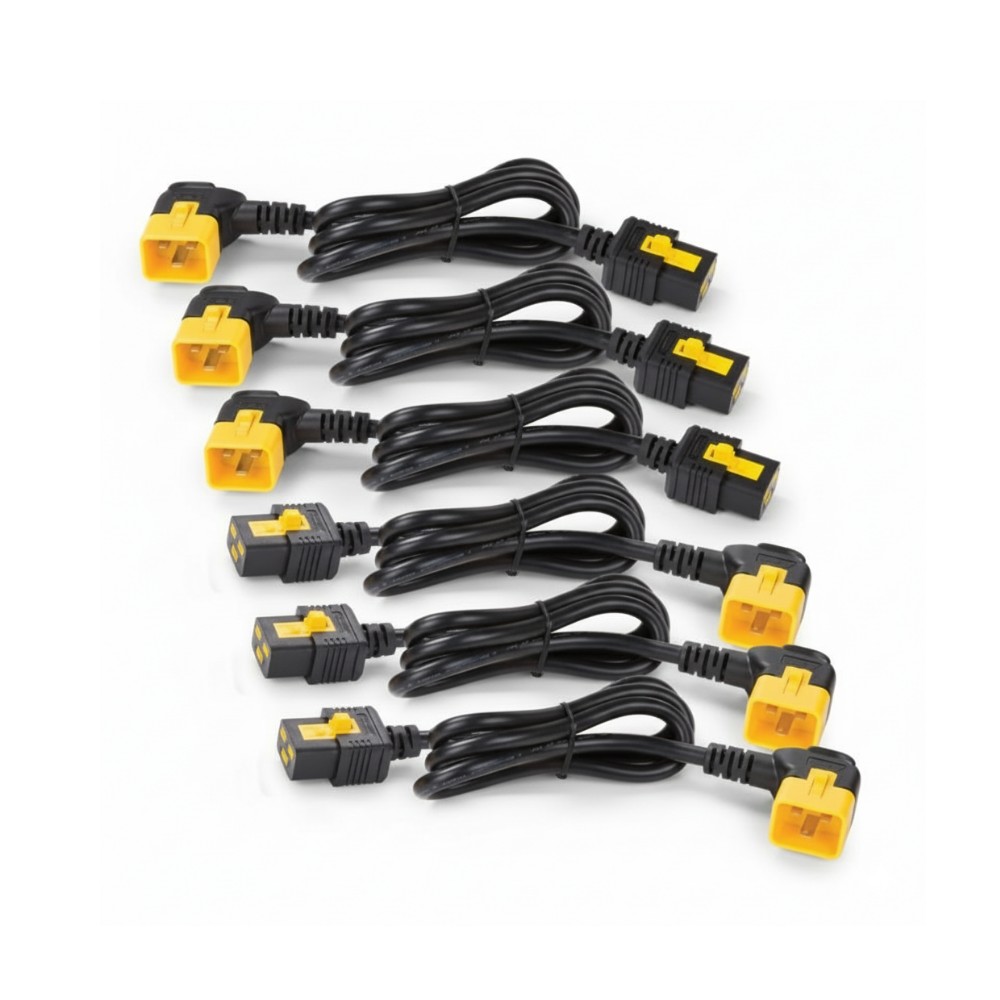

APC AP8714R - Locking Power Cord Kit (C19→C20)
Overview :
This is a rack-mount power cord kit intended for IT infrastructure use, especially in data centers. It enables secure, locking connections between PDUs and devices to reduce accidental disconnections. The kit includes six jumper cables of 1.2 m length with right-angle connectors, compatible with IEC standards. It is typically deployed in racks, network closets, or power distribution zones and integrates well with APC NetShelter and AP8000 PDU systems.
Key Features :
Locking IEC C19 receptacles reduce accidental disconnections
Six jumper cables in 90° orientation, 1.2 m each
Compatible with IEC 60320 C20 and C19 standard connectors
Certified to UL, CSA, and other global safety standards
Specifications :
| Attribute | Specification |
|---|
| Brand | APC (by Schneider Electric) |
| Part Number | AP8714R |
| Product Type | Locking Power Cord Kit |
| Number of Jumper Cables | 6 |
| Cable Length | 1.2 m (4 ft) |
| Input Connector | IEC 60320 C20 |
| Output Connector | IEC 60320 C19 |
| Orientation | Right-angle (90°) jumpers |
| Current Rating | 16 A |
| Dimensions (W × D × H) | 6.5 cm × 7.0 cm × 30.0 cm (approx.) |
| Weight | 1.64 kg (3.62 lb) |
| Certifications / Safety | UL, CSA, PSE, VDE (multi-region) |
