Detailed Specifications

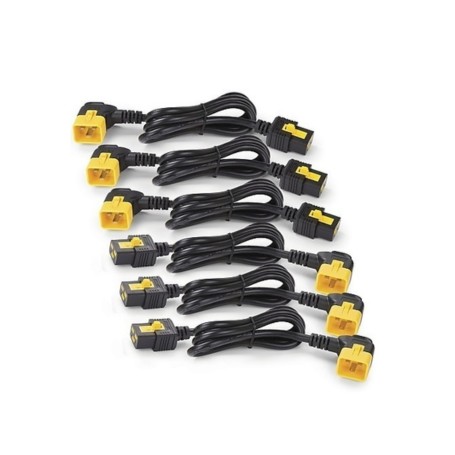

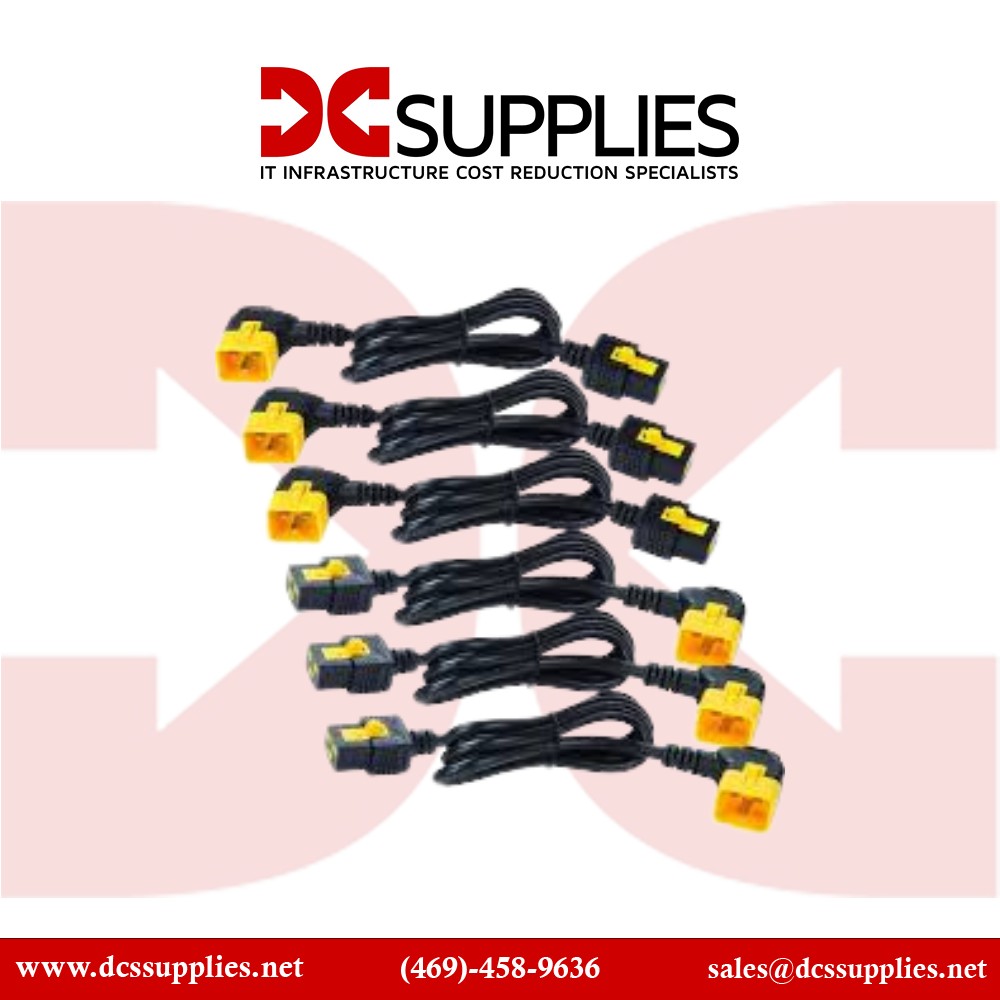

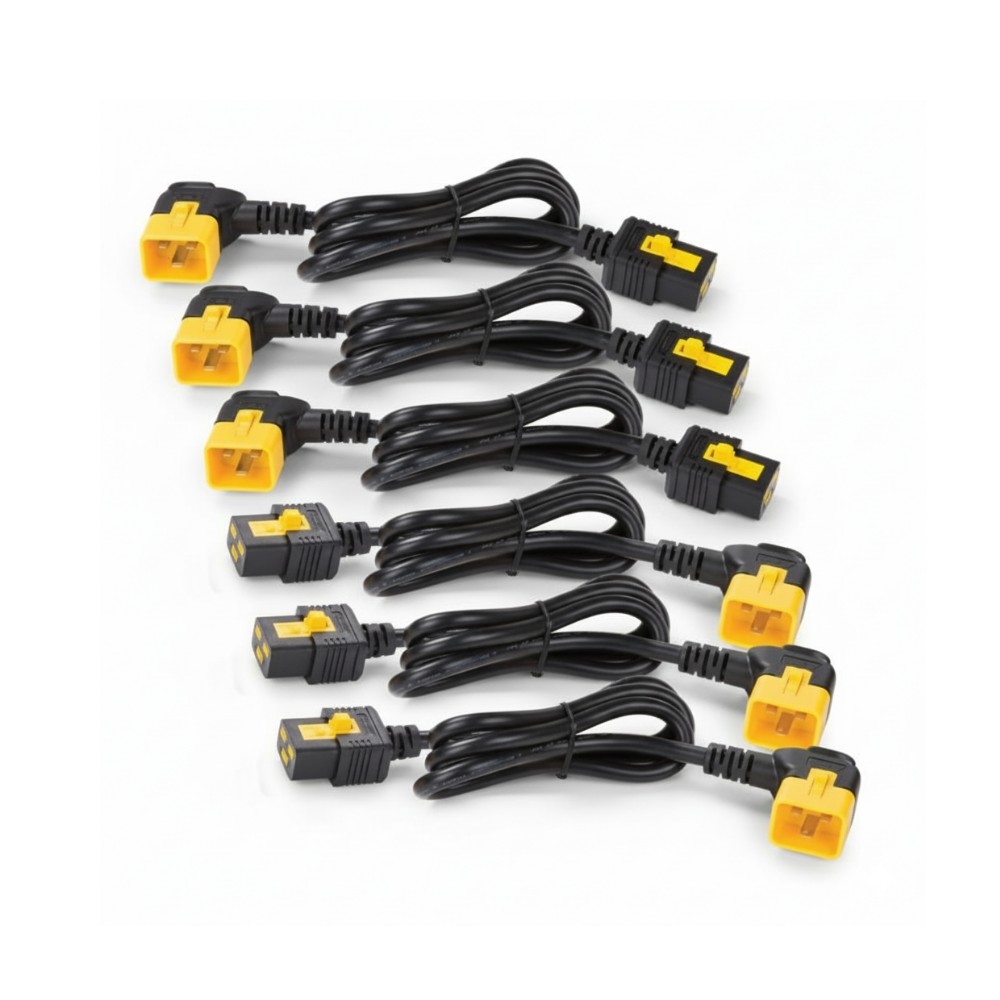

APC AP8712R - Power Cord Kit / Rack Jumper
Overview :
The APC AP8712R is a locking jumper cable kit designed for rack-based power systems. It is used by data center and IT infrastructure teams to connect rack PDUs or equipment with locking receptacles, preventing accidental disconnections. The cable supports a 90° locking interface and is typically deployed in server racks, network closets, or NetShelter enclosures. It integrates with the APC NetShelter and AP8000 PDU ecosystems for secure power management.
Key Features :
90° locking IEC C19 to C20 connectors
0.6 m (2 ft) cable length for tight rack spacing
Locking feature active with compatible APC PDUs
Kit includes six jumper cables with mixed orientations
Specifications :
| Specification | Value |
|---|
| Brand | APC by Schneider Electric |
| Part Number | AP8712R |
| Product Type | Power cord / jumper kit |
| Cable Length | 0.6 m (2 ft) |
| Input Connector | IEC 60320 C20 (locking) |
| Output Connector | IEC 60320 C19 (locking) |
| Connector Orientation | 90° angle |
| Number of Cables | 6 in kit |
| Current Rating | 16 A |
| Color | Black |
| Weight (kit) | ~ 2.47 lb (~1.12 kg) |
| Certification / Safety | UL Listed, CSA, VDE, RoHS compliant |
| Warranty | 2 years (repair or replace) |
| Compatibility | APC NetShelter / AP8000 PDUs (locking receptacles) |
