Overview

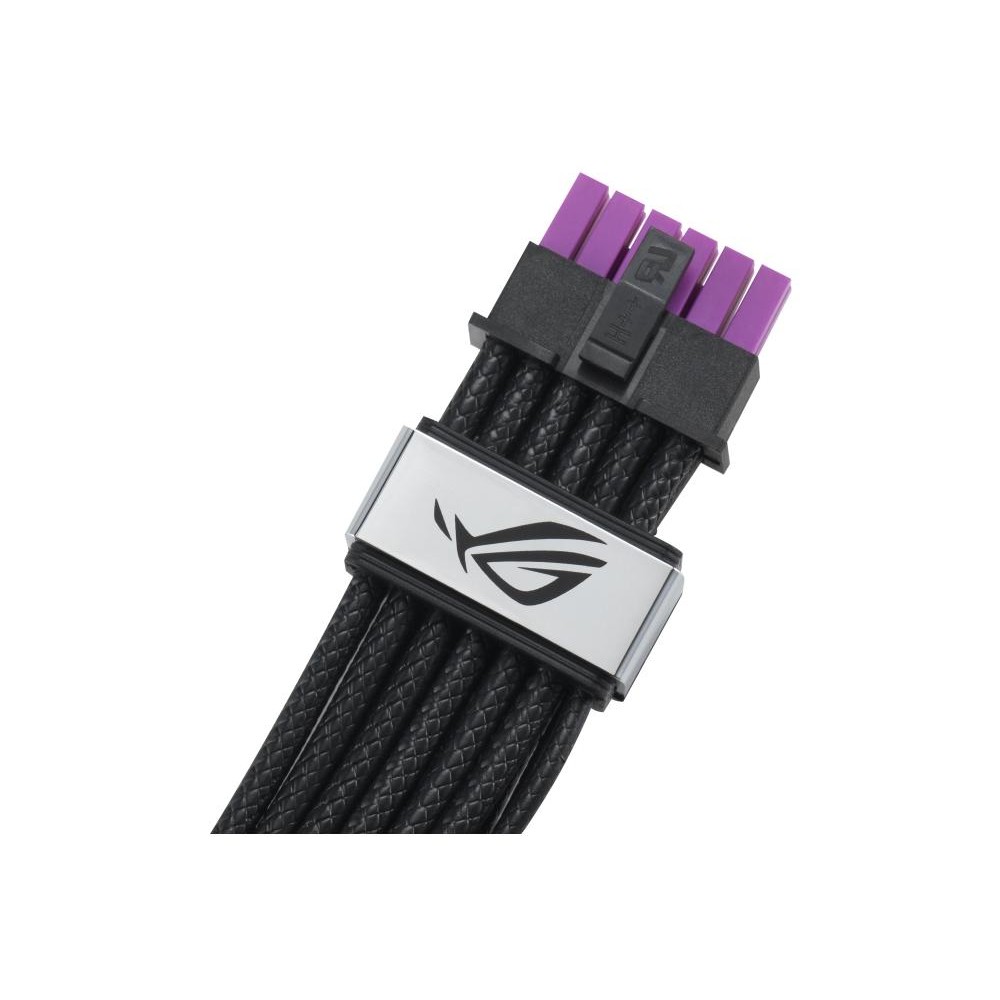

The ASUS ROG Equalizer is a 12V-2x6 PCIe power cable designed for high-power graphics cards. It uses a reinforced cable structure to help balance current delivery across the connector pins and reduce localized thermal stress during demanding GPU workloads.
12V-2x6 PCIe Power Connection
The ROG Equalizer features one PCI-E 16-pin 12V-2x6 connector and has a 750mm cable length. ASUS specifies the cable for use with compatible power supplies and graphics cards using a native 12V-2x6 connection.
Enhanced Current Handling
ASUS rates the ROG Equalizer at up to 17A per wire, compared with 9.2A for standard 12V-2x6 cables. It is recommended for systems operating under a total power limit of 600W.
ATX 3.1 and PCIe 5.1
The cable complies with ATX 3.1 and PCIe 5.1 power specifications. It is designed for current-generation high-performance graphics cards and compatible ATX 3.1 power supplies with a native 12V-2x6 output.
Cable Management
The ROG Equalizer uses a pliable embossed cable design and includes three cable combs for routing and organization. ASUS recommends maintaining at least 4cm of clearance between the graphics card power connector and chassis side panel to allow the cable to form a natural curve.
Key Features
- PCI-E 16-pin 12V-2x6 power connector
- 17A per-wire current capacity
- 750mm cable length
- ATX 3.1 and PCIe 5.1 compliant
- Includes three cable combs for cable management
Applications
The ROG Equalizer is intended for desktop systems using high-power graphics cards that accept a 12V-2x6 or compatible 12VHPWR power connection. It can be used with compatible ATX 3.1 power supplies from ASUS and other leading manufacturers.
DC Supplies Product Note
Before installation, verify that the power supply provides a native 12V-2x6 connection and maintain adequate clearance around the GPU power connector for proper cable routing.
Specifications
| Brand | ASUS |
| Part Number / MPN | ROG-EQUALIZER |
| Product Type | 12V-2x6 PCIe Power Cable |
| Connector | PCI-E 16-pin x 1 (12V-2x6) |
| Cable Length | 750 mm |
| Current Capacity | Up to 17A per wire |
| Recommended Total Power | Up to 600W |
| Power Standard | ATX 3.1 |
| PCIe Standard | PCIe 5.1 |
| Cable Combs | 3 |
| Warranty | 3 years |
FAQs
What is the ASUS ROG Equalizer?
It is a 12V-2x6 PCIe power cable designed to provide balanced power delivery and improved thermal handling for high-power graphics cards.
What connector does ROG-EQUALIZER use?
It uses one PCI-E 16-pin 12V-2x6 connector.
How long is the ROG Equalizer cable?
The cable is 750mm long.
Is the ROG Equalizer compatible with ATX 3.1?
Yes. ASUS specifies compatibility with ATX 3.1 and PCIe 5.1 power standards.
How much current can the cable handle?
ASUS specifies up to 17A per wire and recommends use under a total power limit of 600W.
What is included with ROG-EQUALIZER?
The package includes the 750mm ROG Equalizer 12V-2x6 PCIe cable, three cable combs, and a quick-start guide.
