Eaton P004-002 - 2 ft C14-to-C13 PDU Power Cord
Overview :
The Eaton P004-002 is a 2 ft (0.61 m) C14-to-C13 power extension cord designed for IT power chains in rack, shelf, and desktop environments. It is deployed by data-center technicians, rack installers, and facilities teams to extend or replace connections between power distribution units (PDUs), UPS outlets, servers, network devices, and peripherals, where additional reach or flexibility is needed without rewiring infrastructure. This cable addresses short-distance extension requirements in structured power deployments.

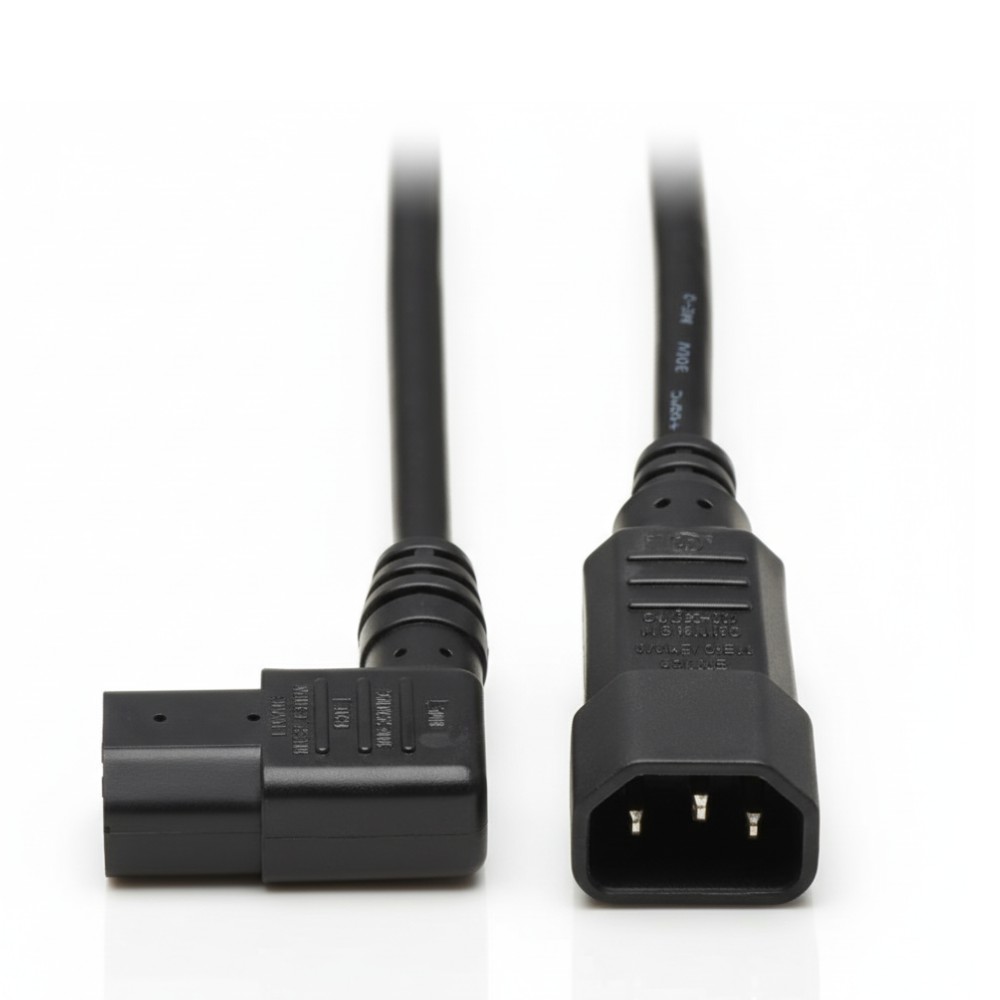

Mechanically, the cord features a male IEC 60320-C14 plug on one end and a female IEC 60320-C13 inlet on the other, conforming to common IT power inlet standards. It uses 18 AWG conductors rated for 10 A and 100-250 VAC, with a SJT-rated PVC jacket for flexibility and durability in rack and utility applications.
This extension cable fits close-range connections between PDUs or UPS units that provide C14 outputs and equipment accepting C13 power inputs, such as servers, switches, monitors, and printers. Its compact length limits clutter while maintaining code-compliant power delivery in structured environments.
Integration is straightforward: plug the C14 male end into an upstream PDU/UPS output and the C13 female into the equipment's IEC inlet. The cord's black SJT jacket blends with typical rack power cabling. It is not a replacement for branch circuit wiring or distribution panel cabling and should only be used within the rated current and voltage specifications.
In deployment, P004-002 is selected for short extension needs in racks and closets where equipment spacing changes but existing PDUs and power strips remain. For longer runs or higher current applications, select appropriately rated cables consistent with NEC/IEC wiring standards.
Key Features
• IEC 60320 C14 male to C13 female extension cable
• 2 ft (0.61 m) length for short-reach power flexibility
• 18 AWG conductors rated 10 A / 100-250 VAC
• SJT PVC jacket for rack and IT environments
• Black jacket blends with structured power layouts
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | P004-002 |
| Product Type | IEC Power Extension Cord |
| Connector A | IEC 60320-C14 male |
| Connector B | IEC 60320-C13 female |
| Cable Length | 2 ft (0.61 m) |
| Conductor Gauge | 18 AWG |
| Conductors | 3 |
| Current Rating | 10 A |
| Voltage Rating | 100-250 VAC |
| Jacket Type | SJT, PVC |
| Cable Color | Black |
| Operating Temp | −20 °C to +60 °C |
| Compliance | UL, cUL, CSA, RoHS |
| Use Case | PDU/UPS extension for servers & IT gear |
