Detailed Specifications

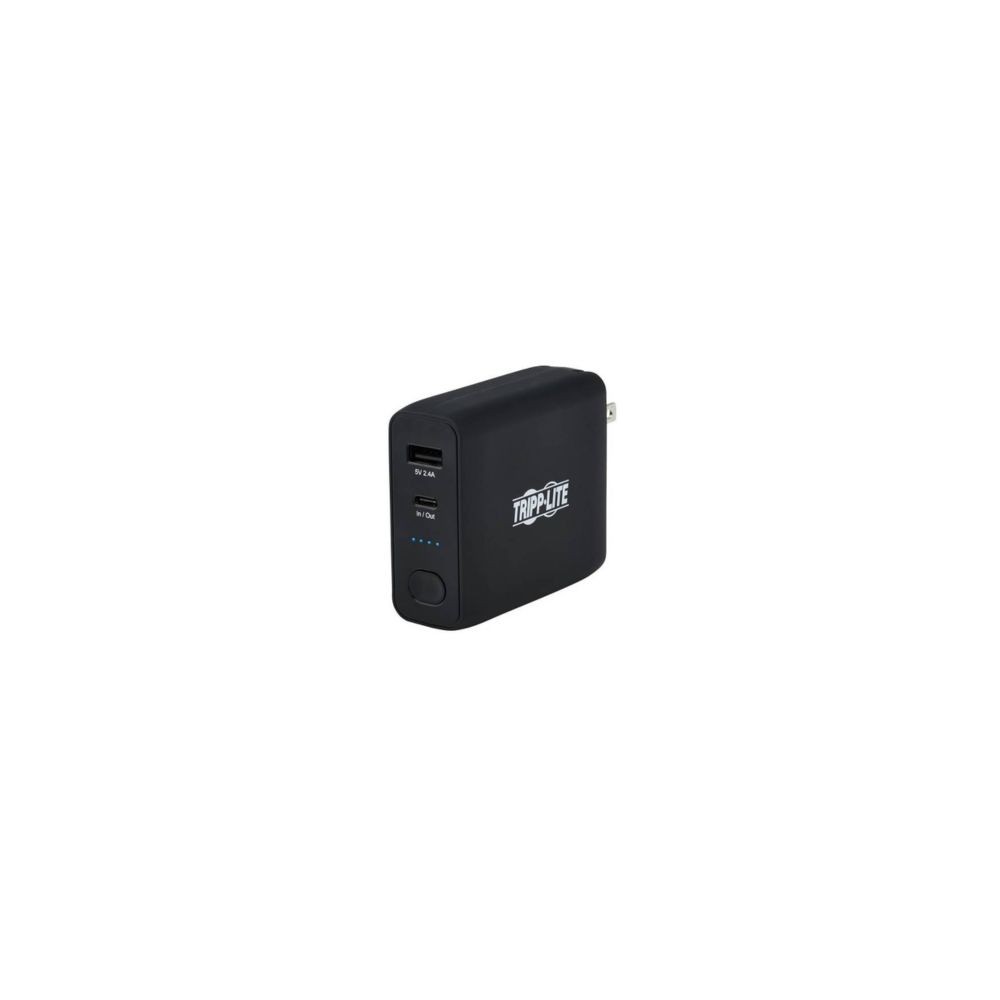

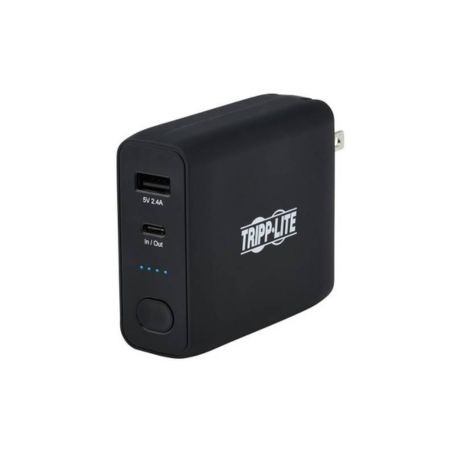

Eaton UPBW-05K0-1A1C Tripp Lite 5000mAh 2-Port Mobile Power Bank and USB Wall Charger
Overview:
The Eaton Tripp Lite UPBW-05K0-1A1C is a portable 5000mAh lithium-ion power bank combined with a direct-plug USB wall charger. It provides portable battery power for smartphones, tablets, e-readers, handheld gaming devices and other USB-powered mobile equipment.
The Eaton Tripp Lite power bank provides two USB charging ports, with USB-A and USB-C outputs. When operating from its internal battery, the USB-C output supports up to 5V/3A and the USB-A output up to 5V/2.4A, with a total output capacity of up to 15W.
Its integrated NEMA 1-15P non-polarized AC plug allows the unit to connect directly to a wall outlet. It can recharge its internal battery while simultaneously charging connected devices, providing a combination of wall charger and portable battery functionality.
The compact Eaton/Tripp Lite design is intended for mobile and backup charging applications such as travel, road trips, outdoor use, conventions and temporary power interruptions. Built-in protection includes over-current, overload, over-voltage, over-charge and over-discharge protection.
Key Features :
- 5000mAh lithium-ion battery provides portable charging capacity for mobile USB devices.
- Two USB charging ports include one USB-A and one USB-C output.
- Up to 15W total output, with USB-C up to 5V/3A and USB-A up to 5V/2.4A.
- Direct-plug NEMA 1-15P design allows the Eaton Tripp Lite unit to recharge from an AC wall outlet.
- Integrated charging protection includes over-current, overload, over-voltage, over-charge and over-discharge protection.
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite by Eaton |
| Model | UPBW-05K0-1A1C |
| Product Type | Portable Power Bank / USB Wall Charger |
| Battery Chemistry | Lithium-Ion |
| Battery Capacity | 5000mAh |
| Number of USB Ports | 2 |
| USB-A Output | 5V / 2.4A |
| USB-C Output | 5V / 3A |
| Total Output Capacity | 15W |
| Input Plug | NEMA 1-15P, Non-Polarized |
| Input Voltage | 110–240 VAC |
| Battery Output | 5 VDC |
| LED Indicator | Blue battery-charge status |
| Color | Black |
| Efficiency | 80% |
| Protection | Over-current, overload, over-voltage, over-charge, over-discharge |
| Operating Temperature | 32° to 77°F (0° to 25°C) |
| Certifications | UL Listed, FCC |
| Compliance | RoHS, REACH |
| Warranty | 1-Year Limited |
| Weight | Approx. 0.55 lb |
