APC SYPD3 Symmetra RM and LX 208/240V Backplate Kit for Power Distribution

APC SYPD3 – Symmetra RM / LX 208/240 V Backplate Kit

Overview

The APC SYPD3 is a backplate kit for Symmetra RM and LX UPS systems (208/240 V version). Its purpose is to provide standardized AC output receptacles for those UPS units—namely two NEMA L6-20R and one NEMA L6-30R. This lets facility engineers mount or replace output connections in a clean, modular fashion without rewiring the UPS’s internal modules. It’s especially useful when upgrading or servicing multi-module Symmetra systems in rack environments.When you have a Symmetra RM or LX assembly and want to standardize or replace its output interface, this backplate gives you a drop-in solution with known form factor and connector layout. Because it’s designed for the 208/240 V models, it matches voltage and safety standards required in many datacenter and industrial power environments.In practice, you’ll install the SYPD3 in the rear of the UPS frame, align it with the internal busbars, and then attach the external wiring to the three receptacles. That lets the UPS deliver AC out to downstream PDUs or load panels without custom mounts. Use cases include retrofits, module replacement, or spare parts inventory for enterprise UPS fleets.

Key Features

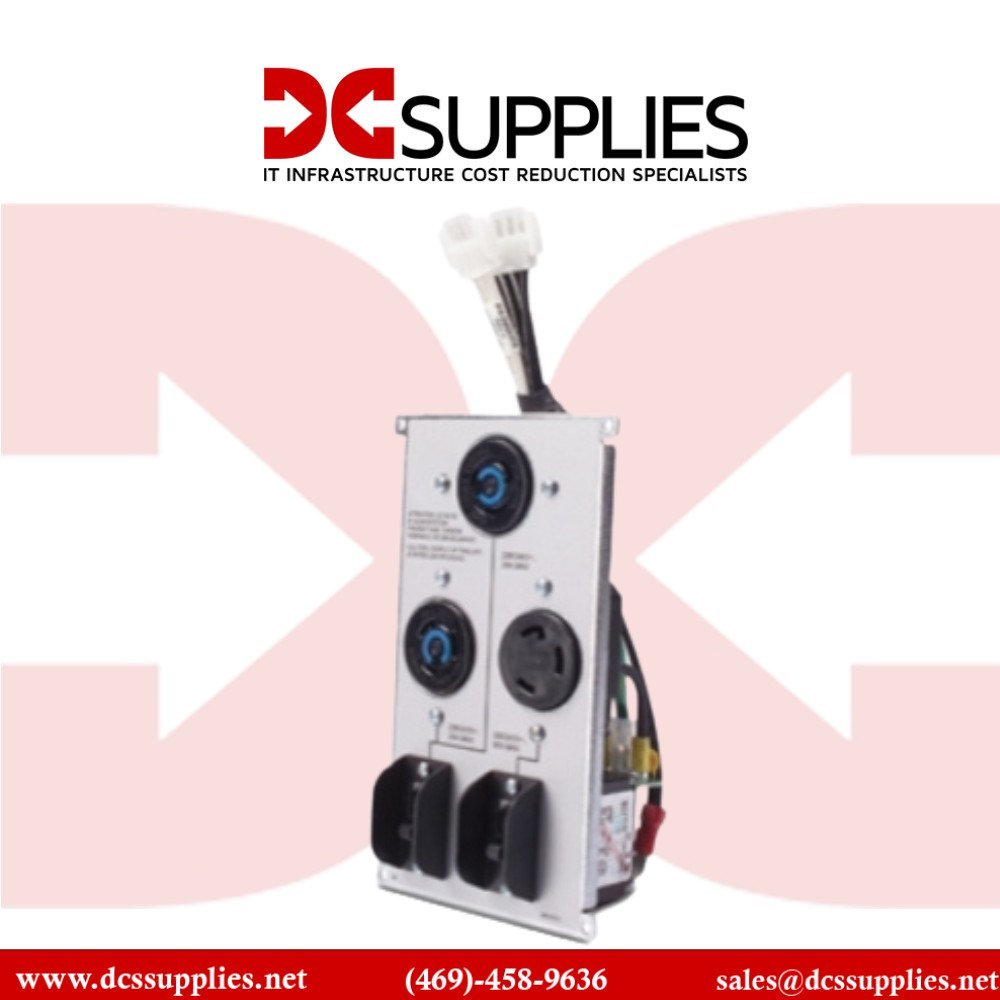

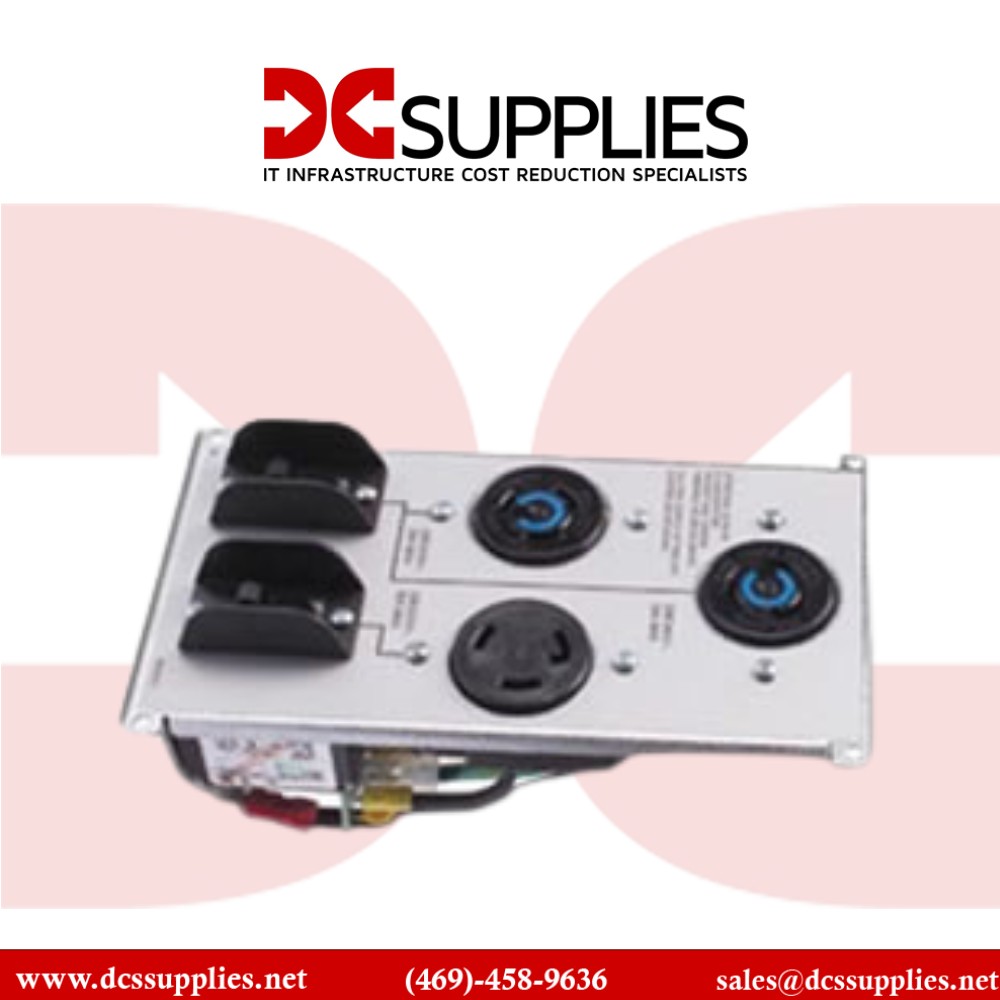

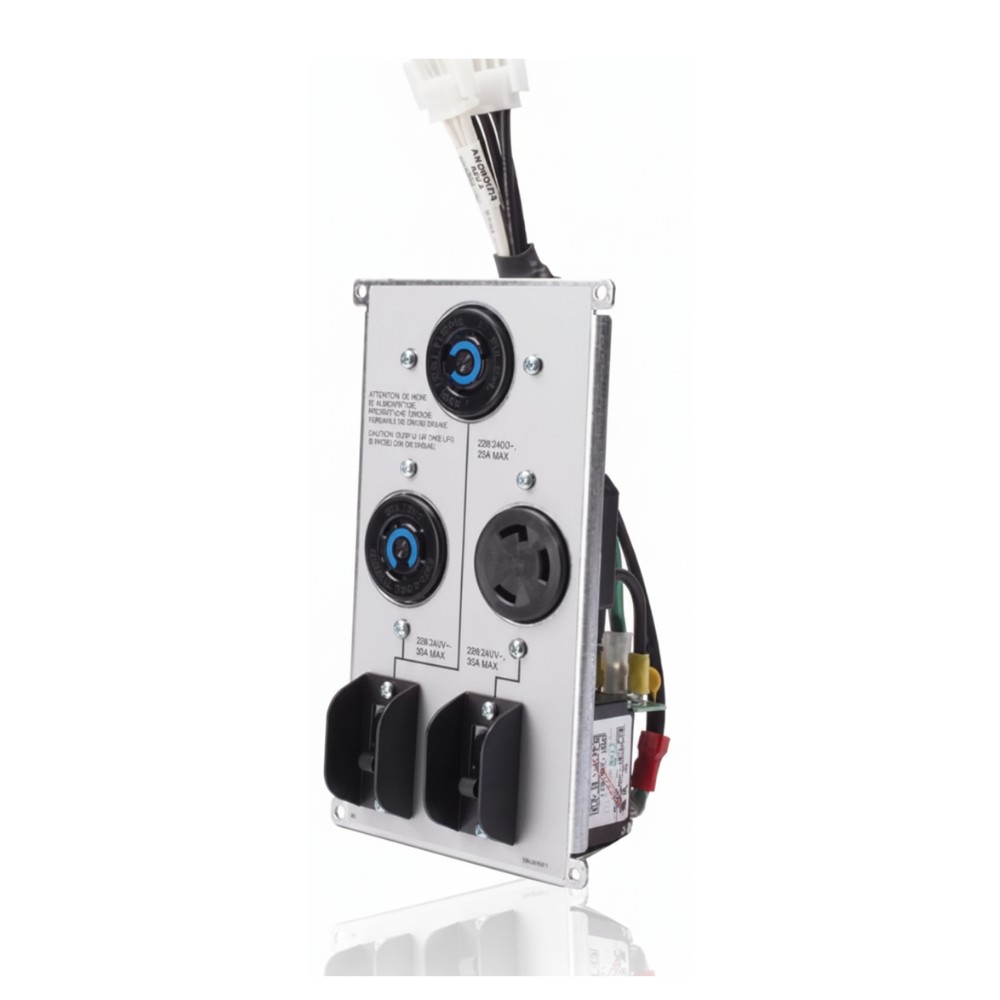

• 208/240 V backplate with two NEMA L6-20R and one NEMA L6-30R receptacles.

• Rack-mountable accessory engineered for Symmetra RM and LX UPS frames.

• Modular update/replace option without requiring full UPS disassembly. (Implicit use case)

• Compact form factor (approx 6 × 4.02 × 2 in, 4.01 lb) for minimal space and weight penalty.

Technical Specifications
