Detailed Specifications

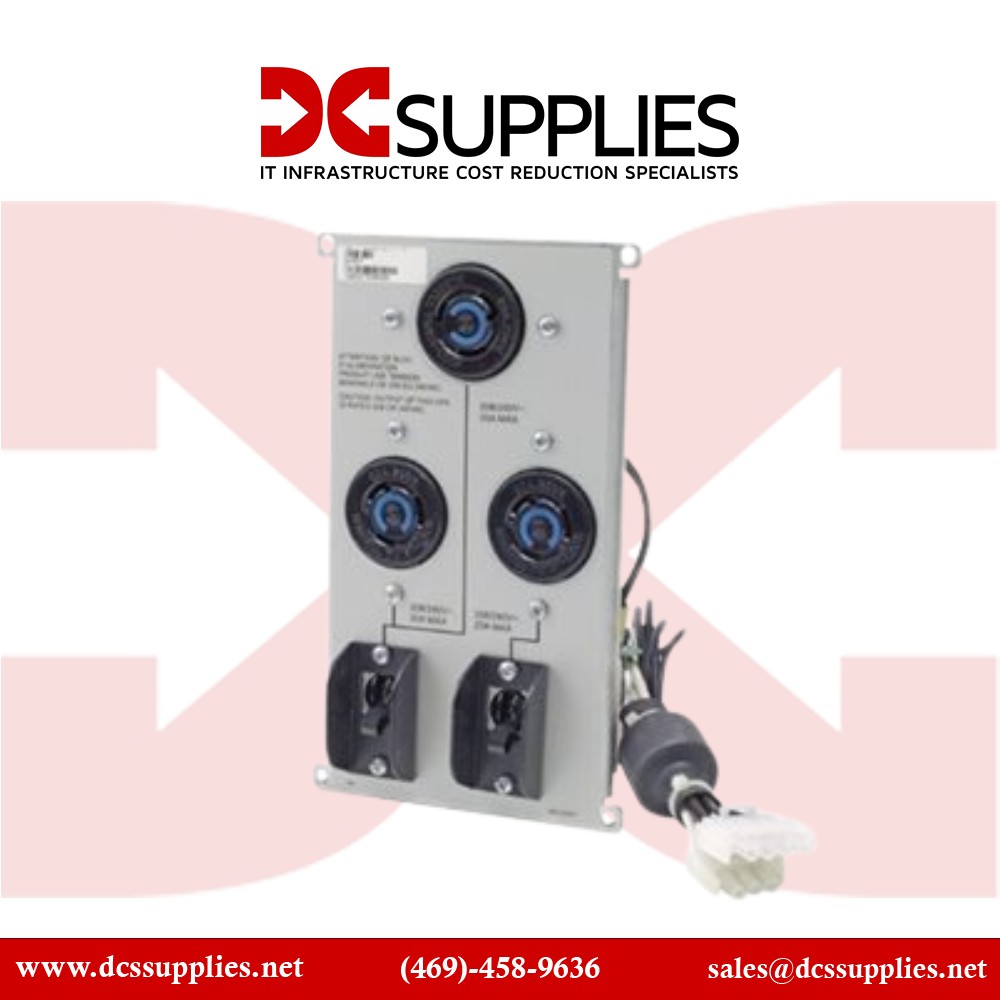

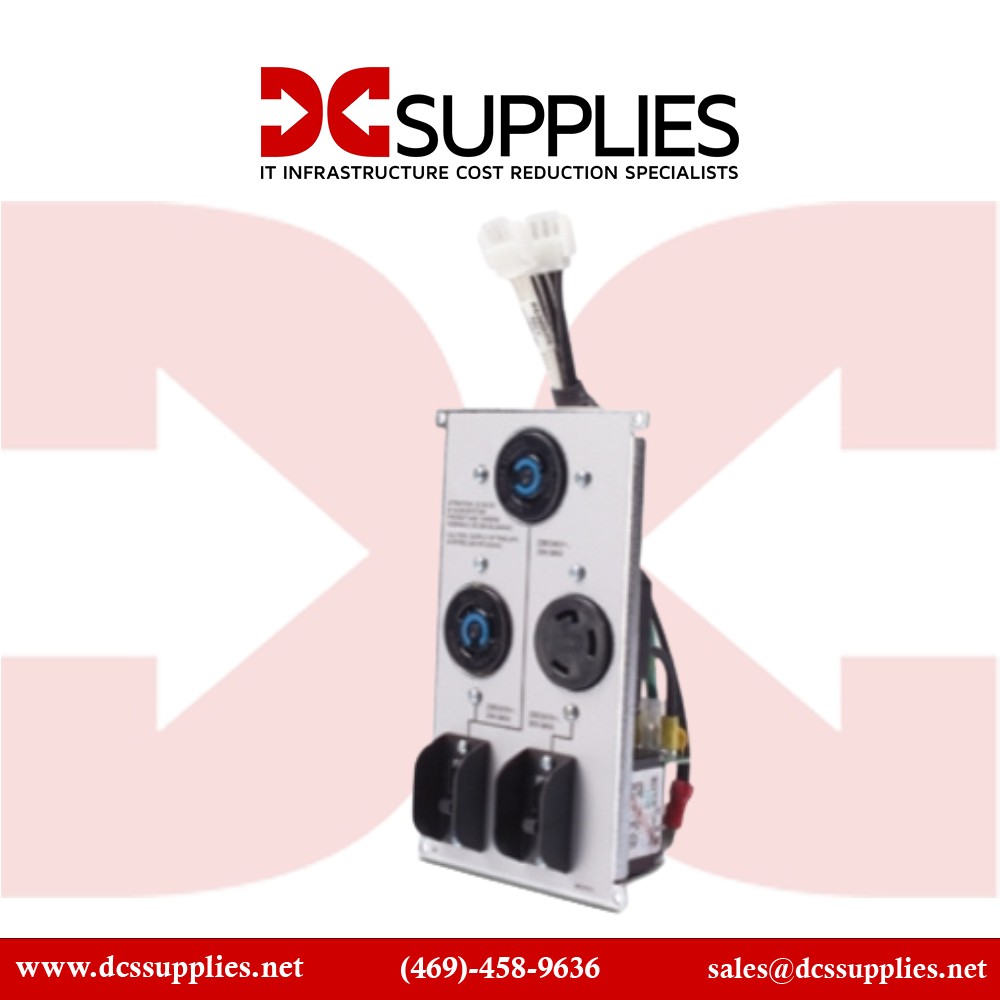

APC SYPD11 - Symmetra RM/LX 208/240 V Backplate Kit
Overview
The APC SYPD11 is a backplate accessory kit for the Symmetra RM and LX UPS families, enabling proper connection to 208/240 V power sources. It provides two NEMA L6-30R receptacles on the panel to feed the UPS modules internally. This backplate is used when deploying Symmetra in a 208/240 V environment where the factory backplate is not suitable. It fits within existing frames, helping ensure safe and compliant power distribution.
Key Features
Dual NEMA L6-30R receptacles support 208/240 V connections to Symmetra modules
Backplate kit format adapts Symmetra RM / LX enclosures to alternate voltage environments
Compact size: 5 in (127 mm) H × 6.0 in (152 mm) W × 2.008 in (51 mm) D, net weight ~4.01 lb (1.82 kg)
Allows reuse of existing Symmetra frames without replacing the entire power distribution backplane
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC / Schneider Electric |
| Part Number | SYPD11 |
| Product Type | Backplate / Power Distribution Accessory |
| Key Spec 1 | Receptacles: 2 × NEMA L6-30R (208/240 V) |
| Key Spec 2 | Mounting Format: Symmetra RM / LX compatible backplate kit |
| Key Spec 3 | Dimensions: 5 in × 6.0 in × 2.008 in (127 mm × 152 mm × 51 mm) |
| Management | Passive (no intelligence or switching) |
| Power Requirements | Supports 208/240 V power feeds via receptacles |
