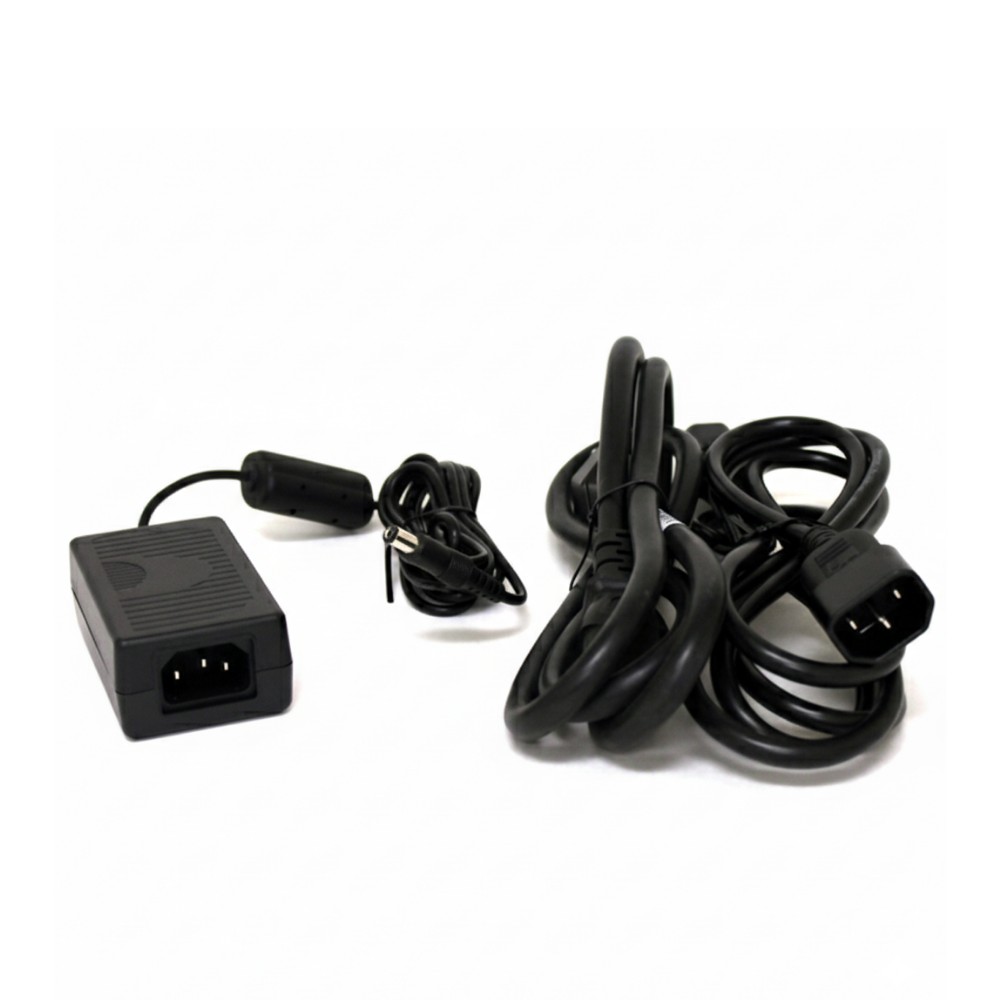

APC AP9505I Power Supply Universal 24VDC Output View larger

APC AP9505I Power Supply Universal 24VDC Output

New

24 VDC NetBotz power accessory
×




  • New

Detailed Specifications

APC AP9505I – NetBotz 24 VDC Power Supply

Overview :

The AP9505I is an external 24 VDC power supply designed for use with APC’s NetBotz monitoring and SmartSlot expansion systems. It enables additional devices (such as Rack Access Pods) to be powered where the built-in supply is insufficient. It is suitable for branch, data center, or security-monitoring deployments where environmental sensors or pods exceed native power capacity. It integrates with APC/Schneider’s NetBotz platform and follows the same compliance and interface standards.

Key Features :

  • Universal 100–230 VAC input, auto-switching

  • Standard IEC-C7 and BS-1363 female power connectors

  • Delivers stable 24 VDC output for expansion modules

  • Compact form factor (95×70×70 mm)

Specifications :

SpecificationValue
Brand APC / Schneider Electric
Part Number AP9505I
Product Type External 24 VDC Power Supply
Input Voltage Range 100–230 VAC (auto-switching)
Output Voltage 24 VDC
Connectors IEC 60320-C7 (inlet), BS-1363 (female outlet)
Dimensions (W × D × H) 95 × 70 × 70 mm
Weight (net) 0.34 kg
Operating Temperature 0 °C to 45 °C
Storage Temperature –15 °C to 45 °C
Operating Humidity 0 % to 95 % non-condensing
Certifications / Approvals cUL, CE, RoHS, AS/NZS 3548 (C-Tick), EMC, UL, PSE, VDE, VCCI
Warranty 2 years (repair or replace)
