Detailed Specifications

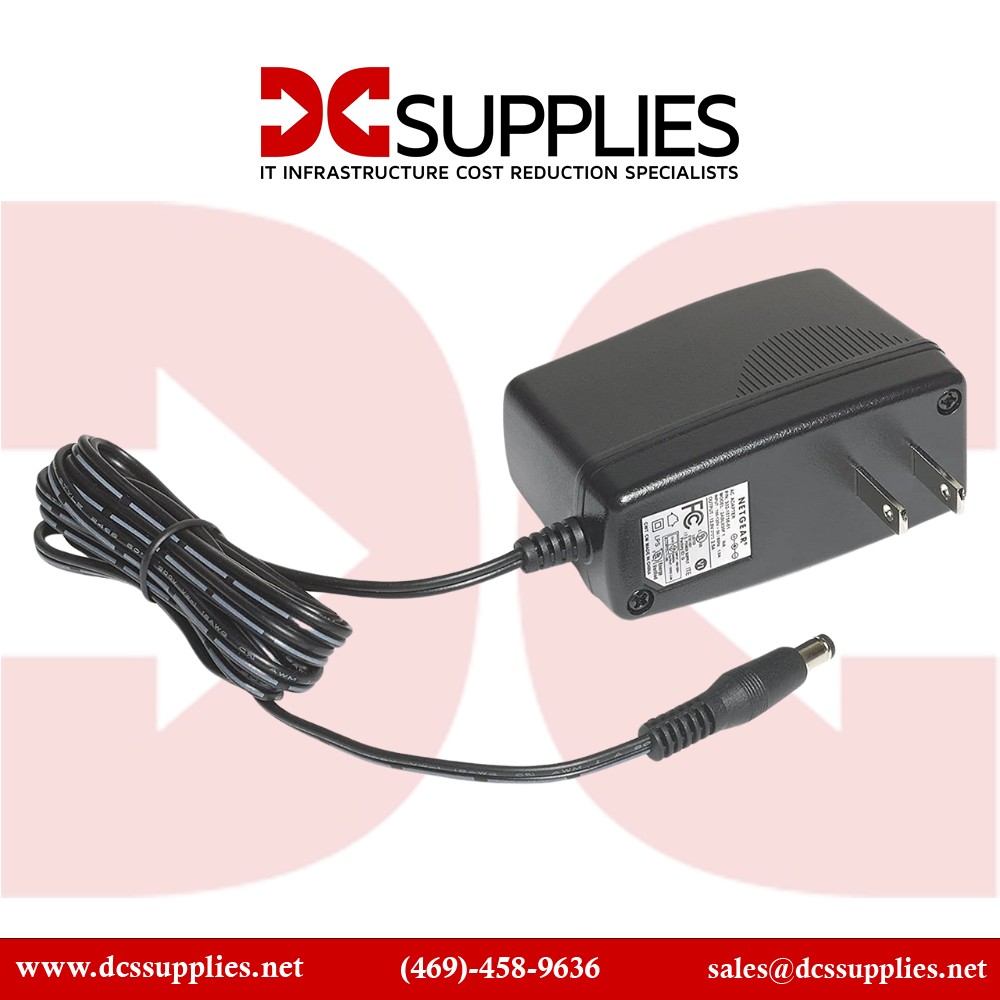

NETGEAR PAV12V35-100NAS 12V 3.5A AC/DC External Power Adapter
Overview
The NETGEAR PAV12V35-100NAS is an external AC/DC power adapter designed for use with select NETGEAR Business devices, including various Insight Managed Access Points and smaller switches that require a higher 12V DC current than the standard PAV12V model. This unit serves as an alternative power source when Power over Ethernet (PoE) is not available or when a dedicated AC power drop is preferred. It converts universal AC input to a stable 12V DC output, providing up to 42 Watts of reliable power.
Key Features
- High-Capacity DC Output: Delivers a 12V DC output at a 3.5 Amp maximum current rating for compatible devices.
- Wide Input Voltage: Supports global power requirements with a 100-240V AC input range at 50/60 Hz.
- OEM Reliability: Genuine NETGEAR accessory ensures optimal performance and prevents potential damage from improper voltage or amperage.
- Flexible Deployment: Enables non-PoE power deployments for devices like WAX630, WAX620, WAX610, and select switches.
Technical Specifications
| Specification | Detail |
|---|
| Brand | NETGEAR |
| Part Number | PAV12V35-100NAS |
| Product Type | AC Adapter / Power Supply (External) |
| Localization | North America (NA) |
| Input Voltage (AC) | 100-240V AC |
| Input Frequency | 50/60 Hz |
| Output Voltage (DC) | 12 V DC |
| Maximum Output Current | 3.50 Amps |
| Maximum Input Current (NA) | 1.30 A |
| Maximum Power Output | 42 Watts (Calculated from $12 text{V} times 3.5 text{A}$) |
| Cable Length (Approximate) | 5.91 ft (1.8 m) |
| Dimensions (H x W x D) | 87 x 54 x 38.5 mm (3.4 x 2.1 x 1.5 in) |
| Weight (Approximate) | 7.20 oz (0.203 kg) |
| Warranty | 2-Year Limited |
