Detailed Specifications

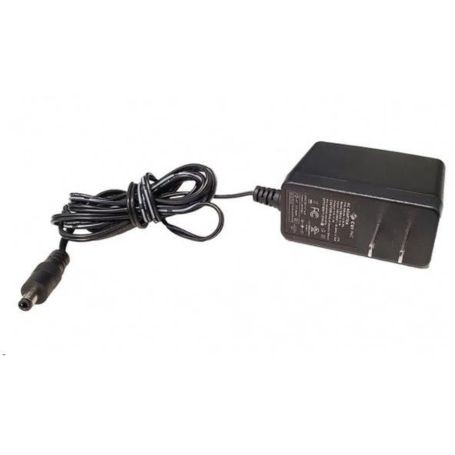

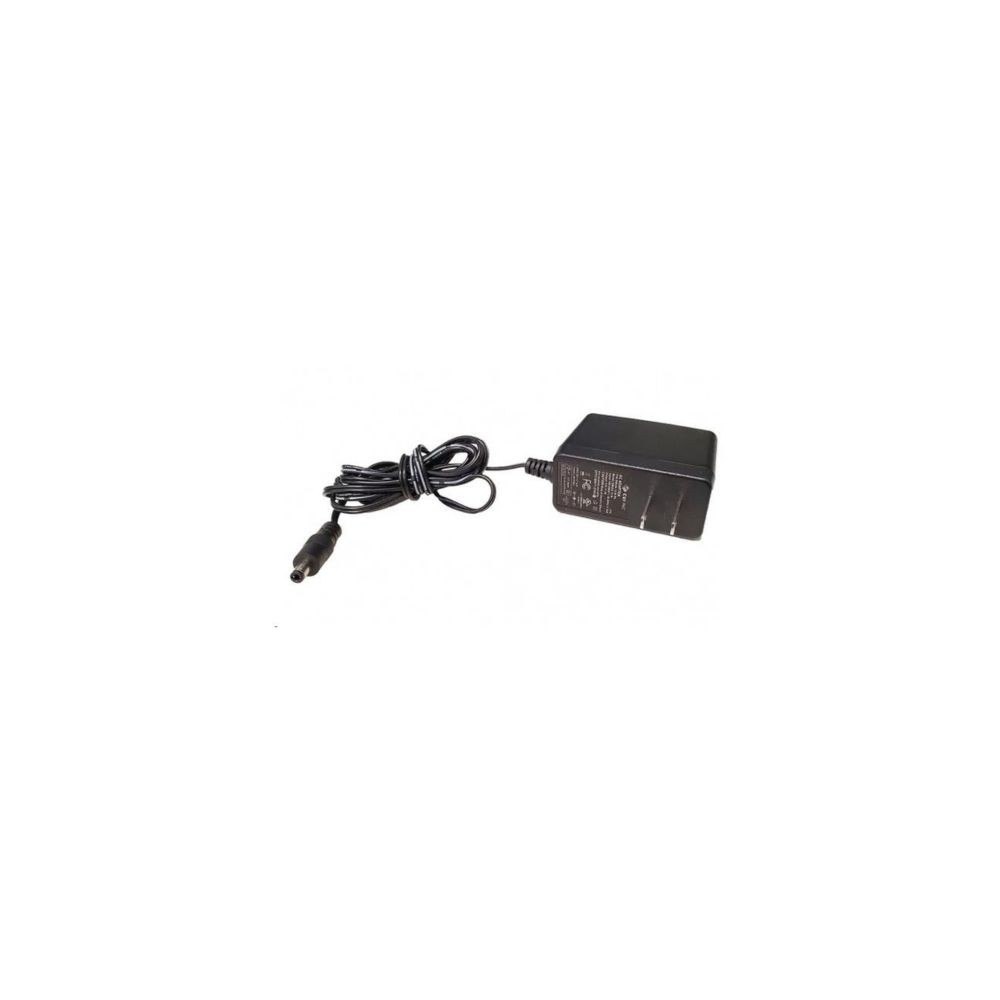

The Havis LPS-159 is an AC/DC wall-mount power adapter designed for compatible Havis docking stations. It provides 12V DC output at 2A, with a rated power of 24W and a wide AC input range of 90–264V.
The adapter includes a 59-inch power cable with a straight barrel connector. It is intended for use with Havis DS-APP-100 Series, DS-APP-110 Series, and DS-TAB-100 Series docking stations. Havis also lists compatibility with TC-100 Series tablet cases and DS-DA-700 Series protective cases.
Key Features
- 24W power output: Provides power for compatible Havis docking station configurations.
- Wide AC input range: Supports 90–264V AC input.
- 12V DC output: Supplies 12V DC at 2A.
- 59-inch power cable: Includes a cable with a straight barrel connector.
- Docking station compatibility: Designed for specified Havis DS-APP and DS-TAB docking station series.
Technical Specifications
| Brand | Havis |
|---|
| Model | LPS-159 |
|---|
| Product Type | AC/DC wall-mount power adapter |
|---|
| Rated Power | 24W |
|---|
| AC Input Voltage | 90–264V AC |
|---|
| DC Output Voltage | 12V DC |
|---|
| Output Current | 2A |
|---|
| Output Cable Length | 59 inches |
|---|
| Output Connector | Straight barrel connector |
|---|
| Compatible Docking Stations | Havis DS-APP-100 Series, DS-APP-110 Series, and DS-TAB-100 Series |
|---|
| Listed Compatible Accessories | TC-100 Series tablet cases and DS-DA-700 Series protective cases |
|---|
| Gross Weight | 2 lb |
|---|
Compatibility Notes
The LPS-159 is specified for compatible Havis DS-APP-100, DS-APP-110, and DS-TAB-100 Series docking stations. Verify the exact docking station model and connector requirements before ordering. Do not assume compatibility with other docking stations based only on connector appearance.
Frequently Asked Questions
1. What is the Havis LPS-159?
The Havis LPS-159 is a 24W AC/DC wall-mount power adapter for specified Havis docking station series.
2. What output voltage does it provide?
It provides 12V DC output at 2A.
3. What AC input voltage does it support?
The specified AC input range is 90–264V AC.
4. Which docking stations are compatible?
Havis lists the DS-APP-100, DS-APP-110, and DS-TAB-100 Series docking stations as compatible.
5. How long is the power cable?
The adapter includes a 59-inch power cable with a straight barrel connector.
6. Is the LPS-159 a 24W adapter?
Yes. Its rated power is 24W, with a 12V DC output and 2A output current.
