Detailed Specifications
SonicWall Power Supply (02-SSC-3078) - 60W Field-Replaceable Adapter for TZ570 / TZ670
Overview

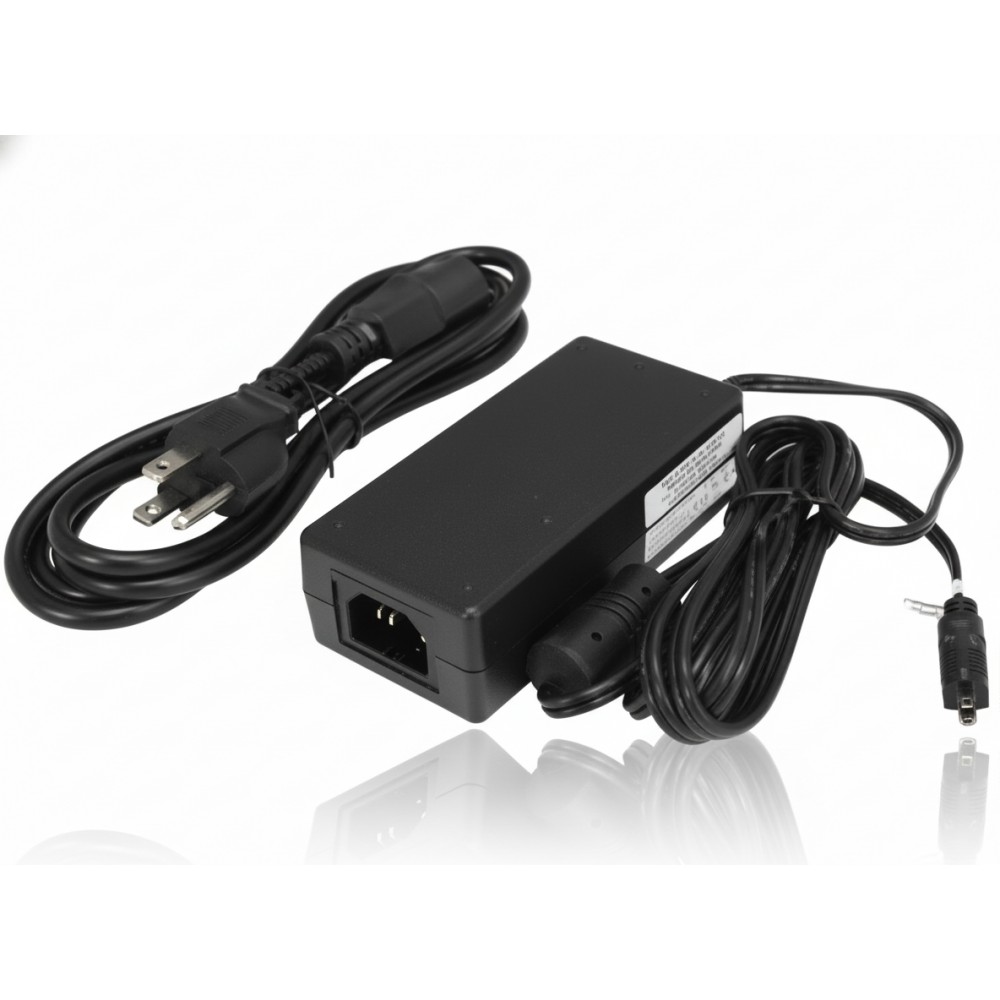

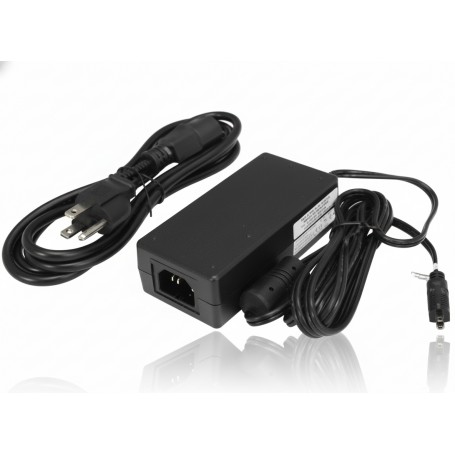

The SonicWall 02-SSC-3078 is a field-replaceable 60-watt external power adapter designed for TZ-series firewalls (specifically TZ570, TZ570W, and TZ670). It provides a stable 12 V DC output to power the appliance reliably, and acts as a redundant / backup power source in deployments where uptime is critical.In official hardware guides, this SKU is listed as the recommended redundant or secondary power adapter option for these TZ models. It supports a wide AC input range (100-240 V), making it usable in diverse power environments, and connects through the standard power jack on the back of the firewall device.
Key Features
60 W power output × delivers sufficient power for TZ570 / TZ670 operation.
12 V DC output × matches the required input of supported appliances.
Wide AC input (100-240 V) × compatible with global power standards.
FRU (Field Replacement Unit) × ideal for hot swap and redundancy.
Compact external brick design × does not intrude on firewall chassis.
Compatible with TZ570 and TZ670 series × as specified in OEM documentation.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 02-SSC-3078 |
| Product Type | External Power Adapter / FRU Power Supply |
| Output Voltage | 12 V DC |
| Power Rating | 60 W |
| AC Input Range | 100-240 V AC |
| Power Adapter Form Factor | External "brick" adapter |
| Output Current | ~5 A (to deliver 60 W at 12 V) |
| Compatibility | SonicWall TZ570, TZ570W, TZ670 (and compatible chassis) |
| Redundancy Support | Can be used as secondary (redundant) power input per TZ quick-start guide |
| Warranty / Replaceability | Designed as FRU (Field-Replaceable Unit) |
