Detailed Specifications

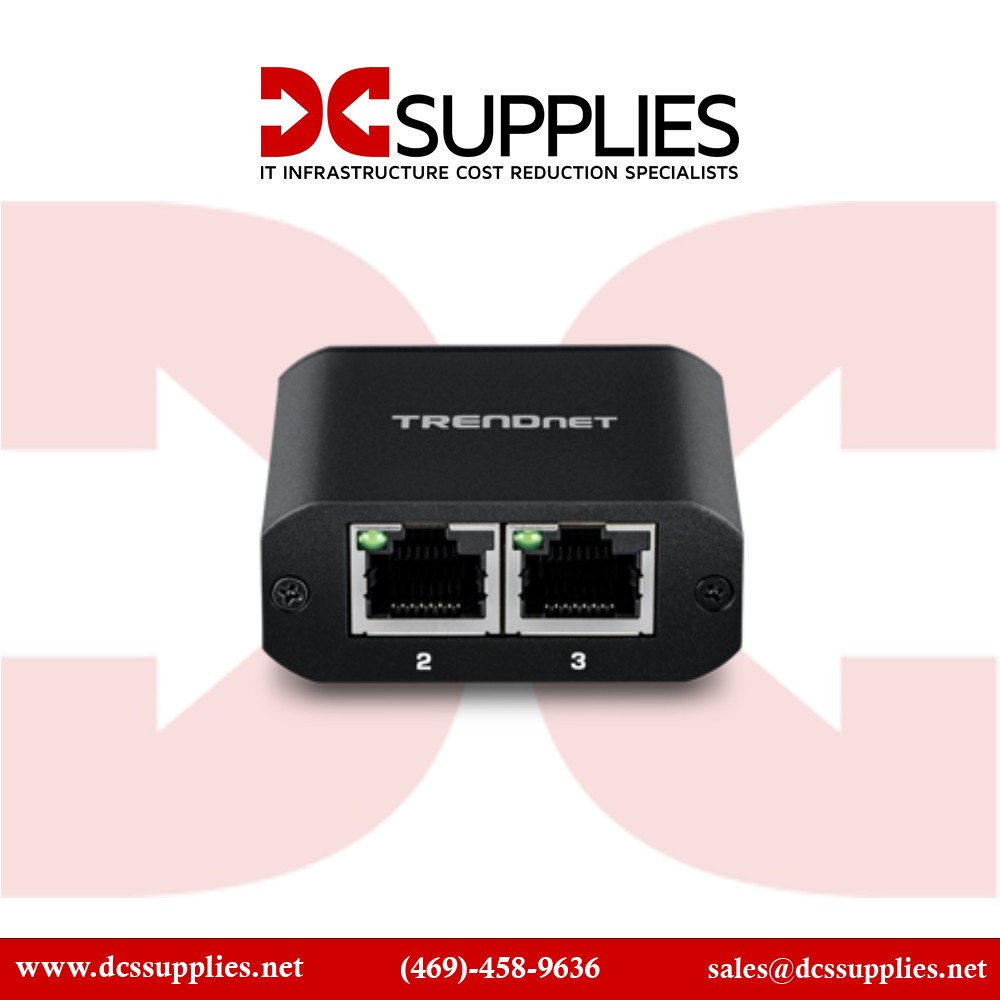

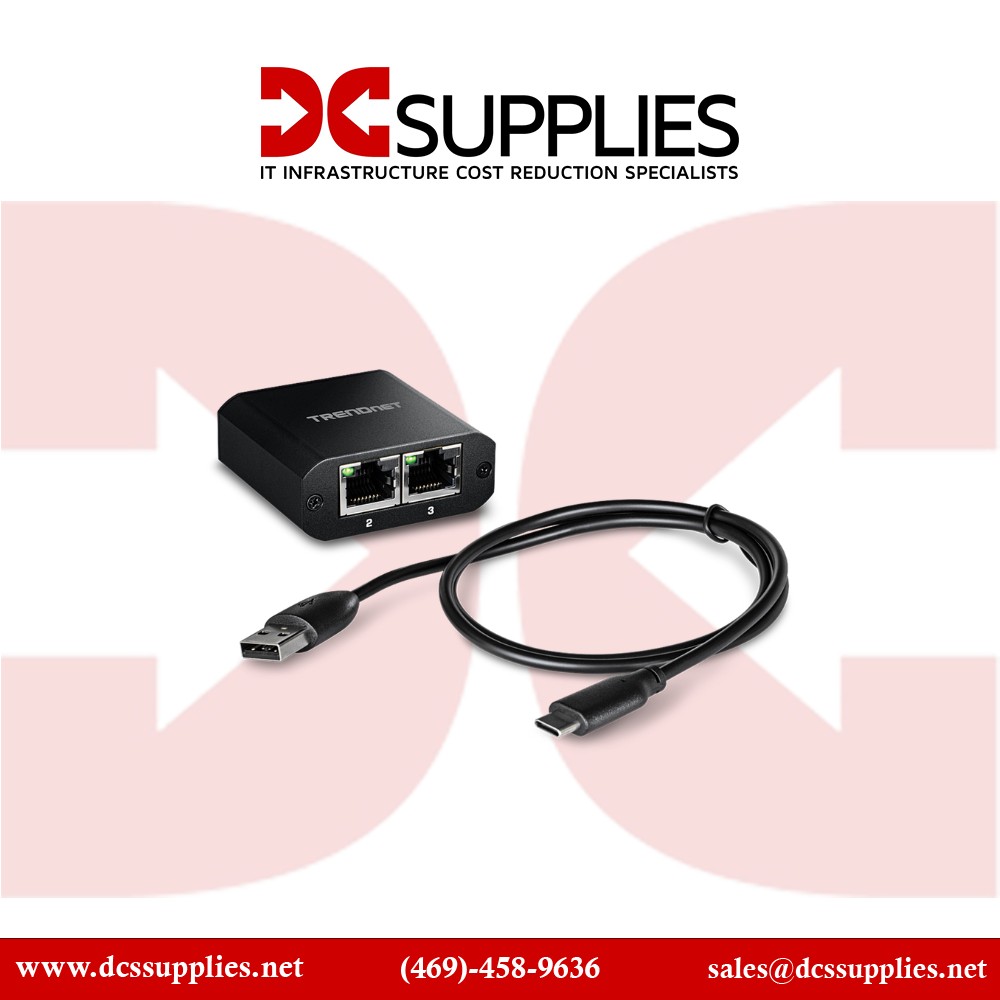

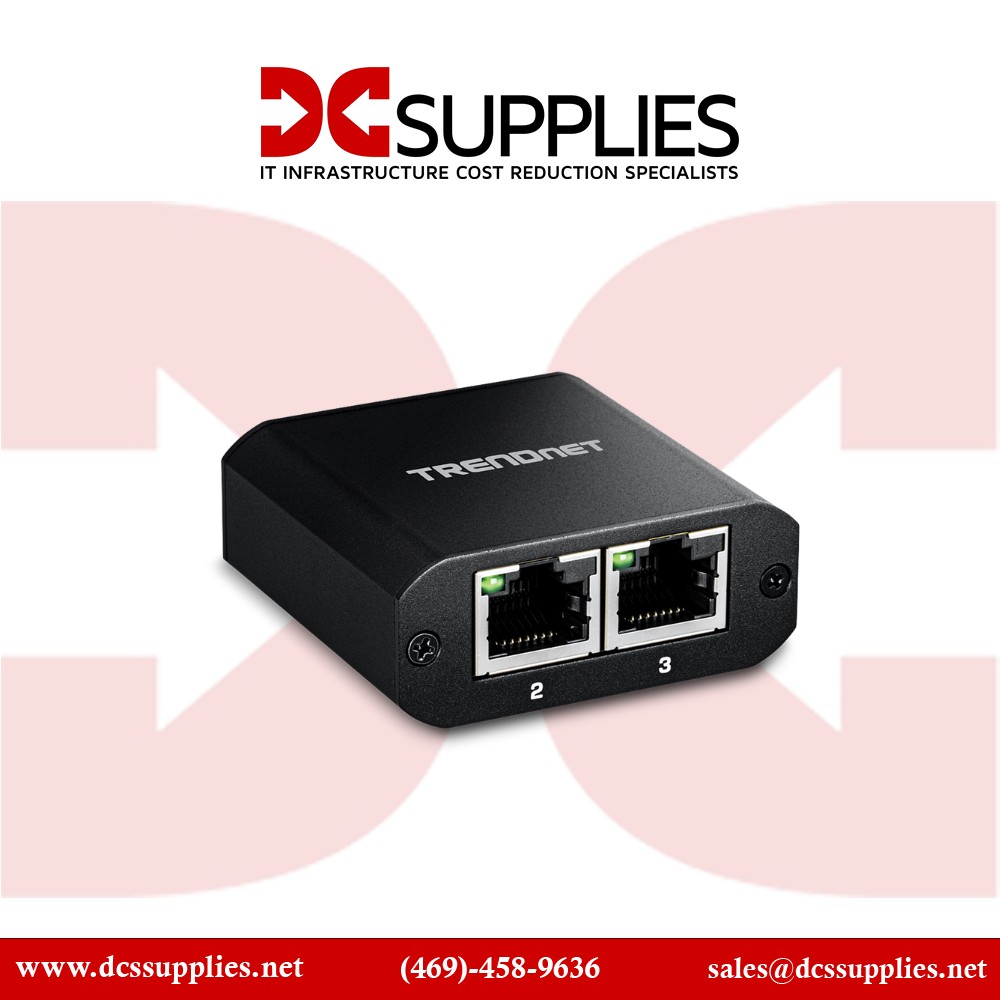

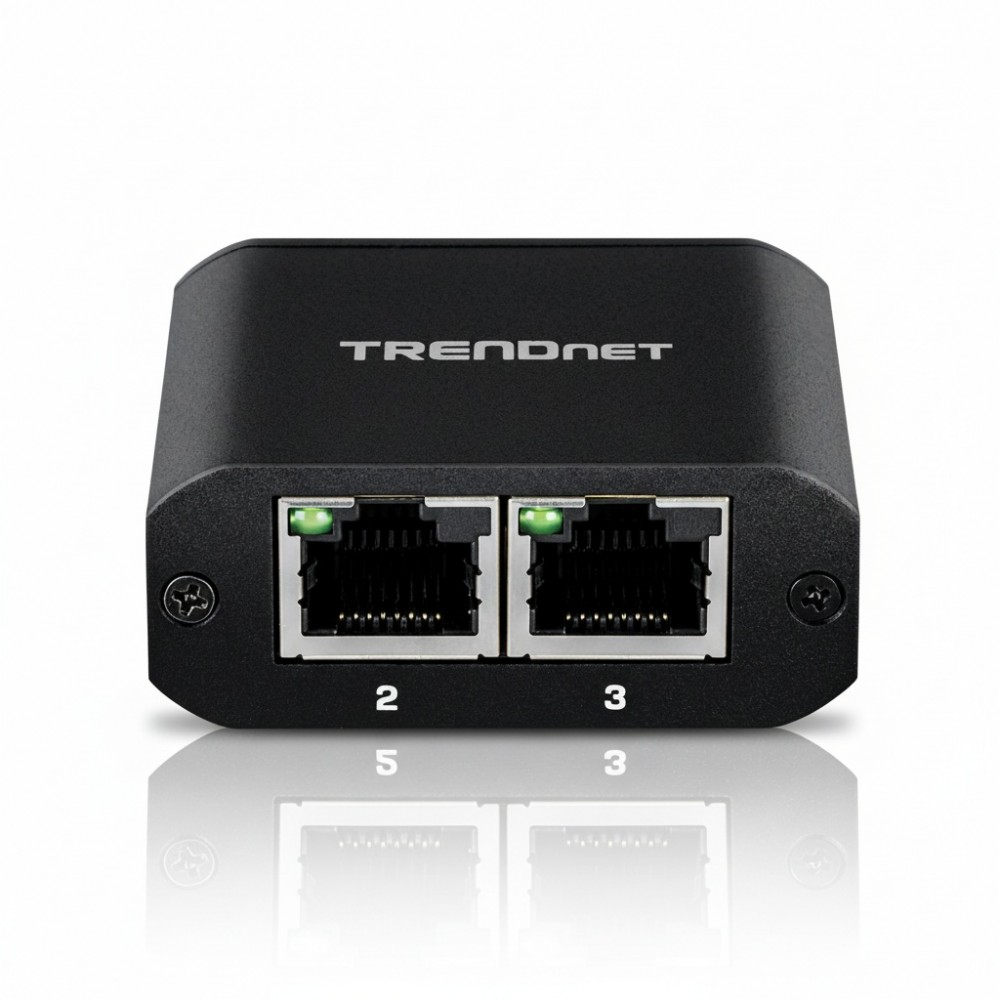

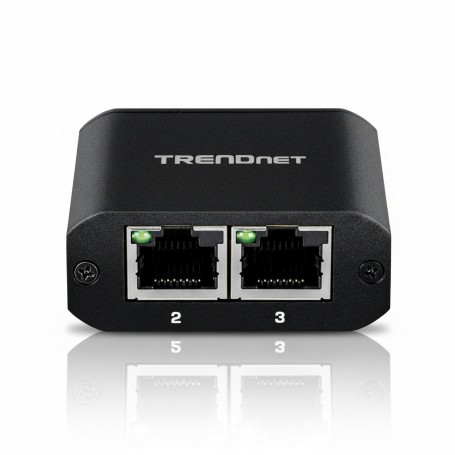

TRENDnet TEG-102S - 2-Port Gigabit Ethernet Splitter
Overview :
The TRENDnet TEG-102S is a compact, external Ethernet splitter that takes a single gigabit RJ-45 input and duplicates it into two independent gigabit RJ-45 outputs, enabling two devices to share one network drop without a full network switch. It is designed for environments where adding a switch isn't practical × for instance, in conference rooms, small offices, or remote work setups. Powered via a USB-C cable (5 V, 1-2 A), it removes the need for a bulky power adapter and simplifies deployment. With a rugged metal housing and a fanless design, the splitter remains quiet and reliable under continuous use. Its internal switching fabric can handle a throughput capacity of up to 4 Gbps, reducing the risk of bottlenecks. The unit supports jumbo frames (up to 9 KB) for more efficient large-packet transfers and includes LED indicators to show port status. It is suitable for mixed-device setups like a laptop and IP phone, or a desktop and network printer, where network expansion is needed but space or cost constraints make a typical switch less ideal.
Key Features
Splits one network line into two gigabit ports
4 Gbps internal switching fabric capacity
Supports jumbo frames up to 9 KB
Compact metal housing, fan-less design
USB-C powered (5 V) with included cable
Specification :
| Specification | Detail |
|---|
| Brand | TRENDnet |
| Part Number | TEG-102S |
| Product Type | 2-Port Gigabit Ethernet Splitter |
| Network Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x |
| Data Transfer Rates | 10 Mbps, 100 Mbps, 1000 Mbps (full duplex) |
| Switching Capacity | 4 Gbps |
| MAC Address Table | 2,000 entries (2K) |
| Forwarding Rate | ~2.97 Mpps (64-byte packet) |
| Data RAM Buffer | 128 KB |
| Jumbo Frame Support | Up to 9 KB |
| Input Interface | 1 × Gigabit RJ-45, 1 × USB-C (power) |
| Output Interfaces | 2 × Gigabit RJ-45 |
| Input Power | DC 5 V, 1 A or 2 A via USB-C |
| Dimensions (L×W×H) | 2.0 × 2.0 × 0.8 in (52 × 50 × 21 mm) |
| Weight | 1.83 oz / 52 g |
| Operating Temp | 0 °C to 40 °C (32 °F to 104 °F) |
| MTBF | ~2,173,812 hours @ 40 °C |
| Warranty | 2 years (TRENDnet) |
