Detailed Specifications

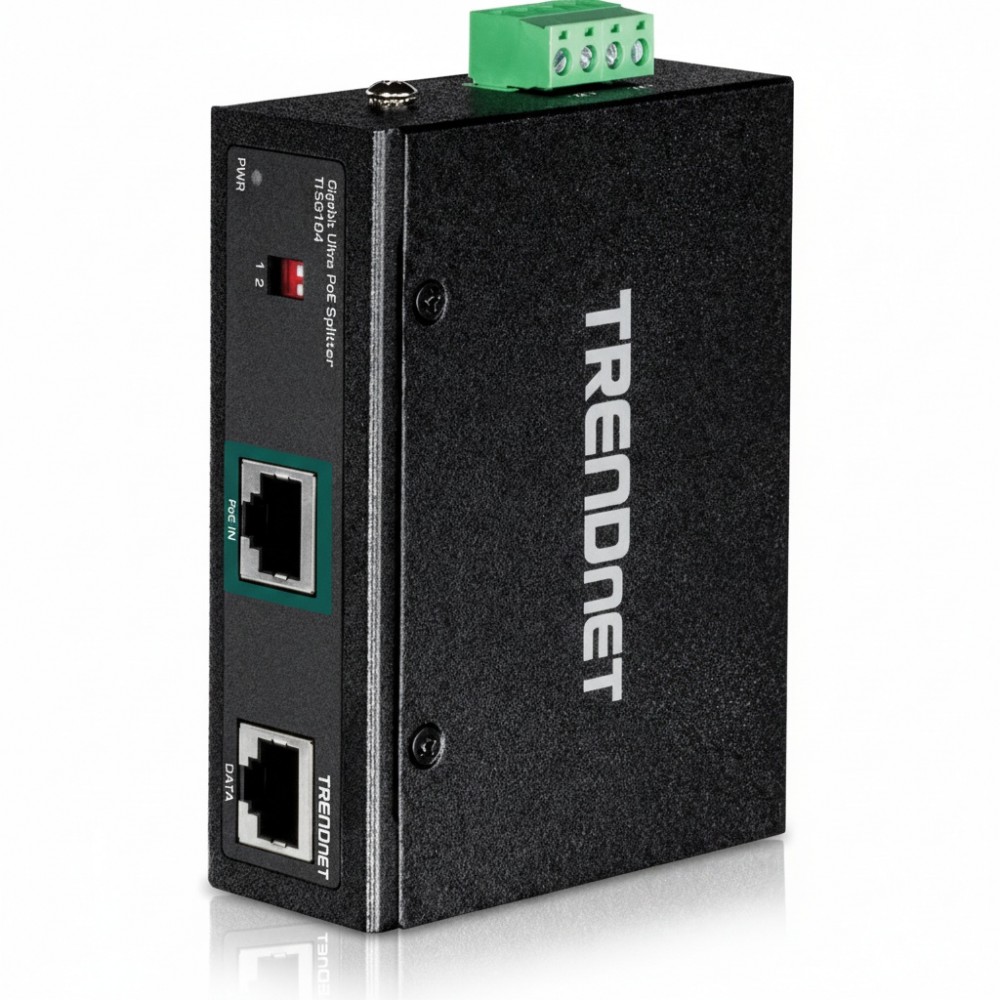

TRENDnet TI-SG104 Industrial Gigabit UPoE Splitter
Overview
The TRENDnet TI-SG104 is an industrial-grade Gigabit Ultra PoE (UPoE) splitter designed to deliver network connectivity and electrical power to non-PoE devices in harsh environments. It solves the common infrastructure challenge of deploying devices like IP cameras, access points, or VoIP phones in locations that lack available power outlets. By tapping into a single IEEE 802.3bt UPoE network cable, it intelligently separates the incoming signal into a Gigabit data output and a dedicated, adjustable DC power source, extending network capabilities without the cost of running new electrical wiring. This device is engineered for operational resilience and deployment flexibility. A key technical feature is its user-selectable voltage output, controlled via a simple DIP switch. Administrators can select from 12V, 16V, 24V, or 48V DC to precisely match the power requirements of connected hardware. The splitter supports powering up to two separate devices simultaneously through a 4-pin terminal block, providing a versatile and efficient power distribution solution from a single high-power UPoE input. Designed for demanding industrial applications, the TI-SG104 features a rugged IP30-rated metal housing that can withstand significant shock, vibration, and a wide operating temperature range. Its compact form factor is optimized for installation in space-constrained enclosures and control cabinets. The unit includes both a DIN-rail mounting bracket and a wall mount kit, ensuring secure and straightforward placement within factory floors, warehouses, and other challenging operational settings.
